Seal-Axle Shaft: Installation
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

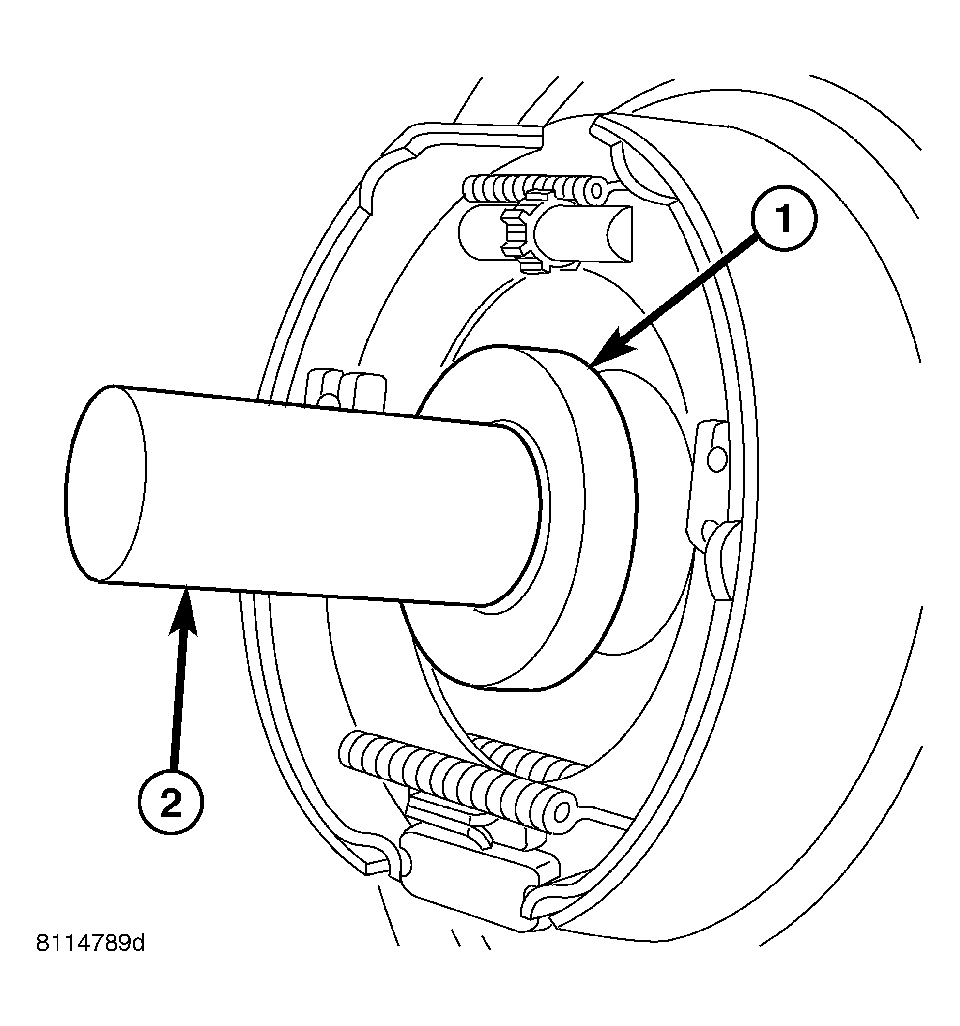

| 1 - INSTALLER |
| 2 - HANDLE |
- Remove any old sealer/burrs from axle tube.
- Coat new seal lip with axle lubricant and install seal with Installer C-4198 (1) and Handle C-4171 (1). See Fig 1.
- Install axle shaft.
