Rear Axle - 8 1/4: Differential: Disassembly

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

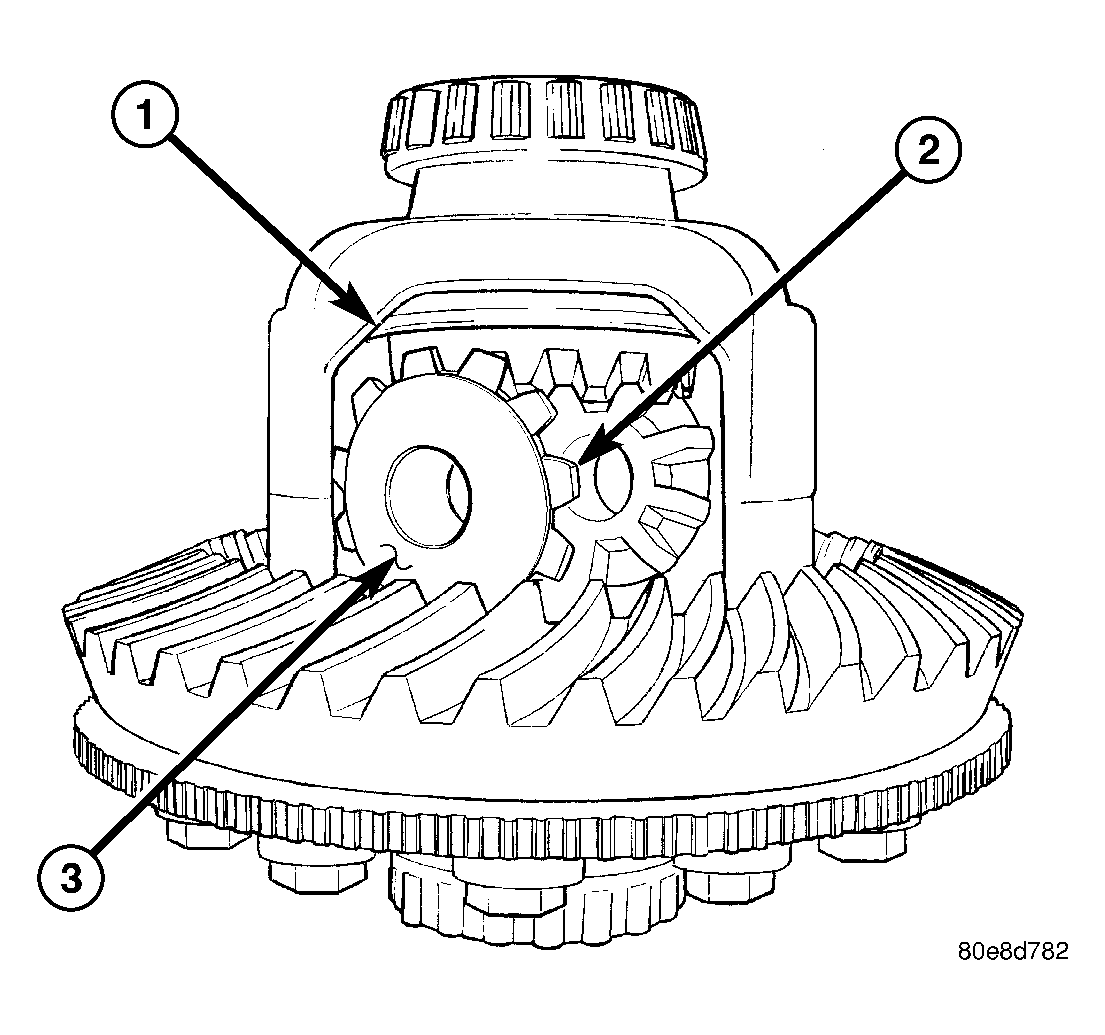

Fig 1: First Pinion Gear

Courtesy of DAIMLERCHRYSLER CORP.

1 - DIFFERENTIAL CASE WINDOW

2 - PINION GEAR

3 - THRUST WASHER

Rotate one pinion gear (2) with thrust washer (3) to the differential window (1) and remove gear and thrust washer. See Fig 1.

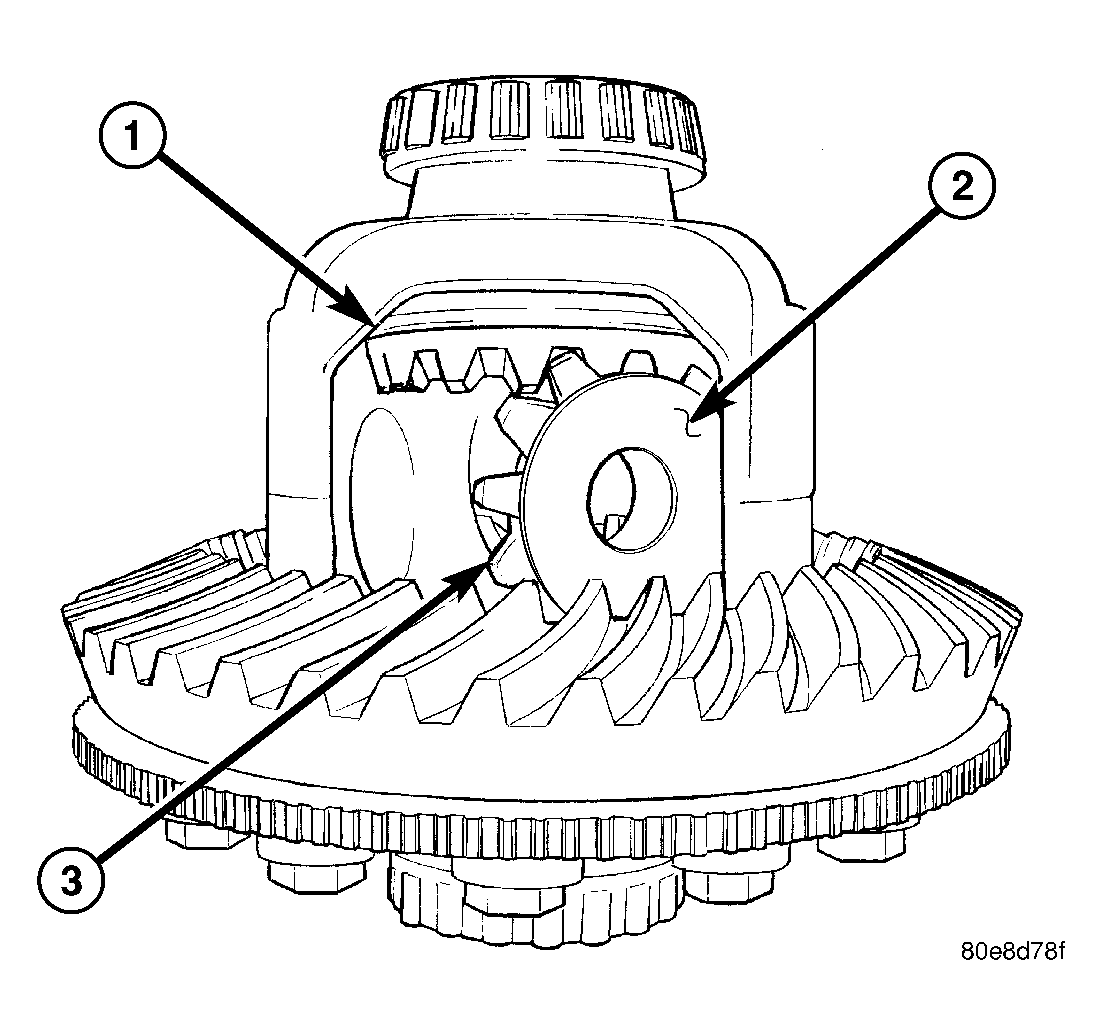

Fig 2: Second Pinion Gear

Courtesy of DAIMLERCHRYSLER CORP.

1 - DIFFERENTIAL WINDOW

2 - THRUST WASHER

3 - PINION GEAR

Rotate remaining pinion gear (3) with thrust washer (2) to the differential window (1) and remove gear and washer. See Fig 2.

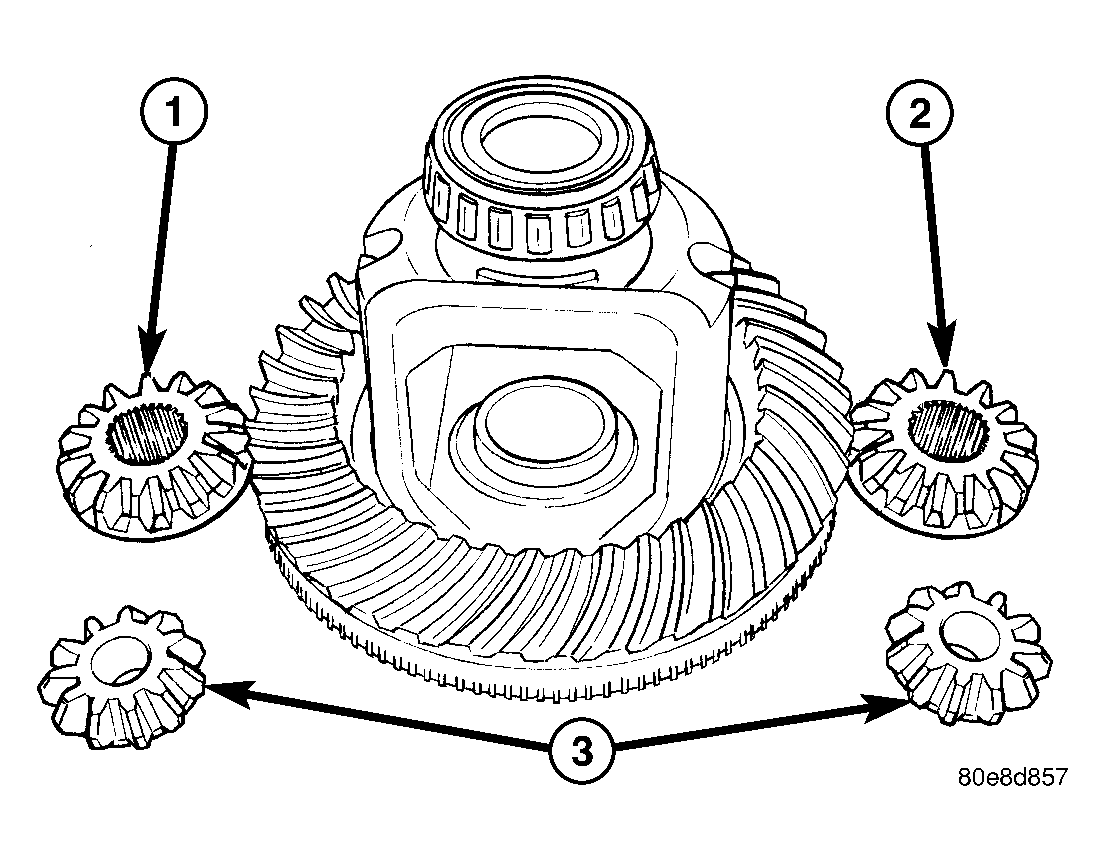

Fig 3: Side Gears

Courtesy of DAIMLERCHRYSLER CORP.

1 - SIDE GEAR

2 - SIDE GEAR

3 - PINION GEARS

Remove differential side gears (1) (2) and thrust washers. See Fig 3.
