Bearing-Differential Case: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

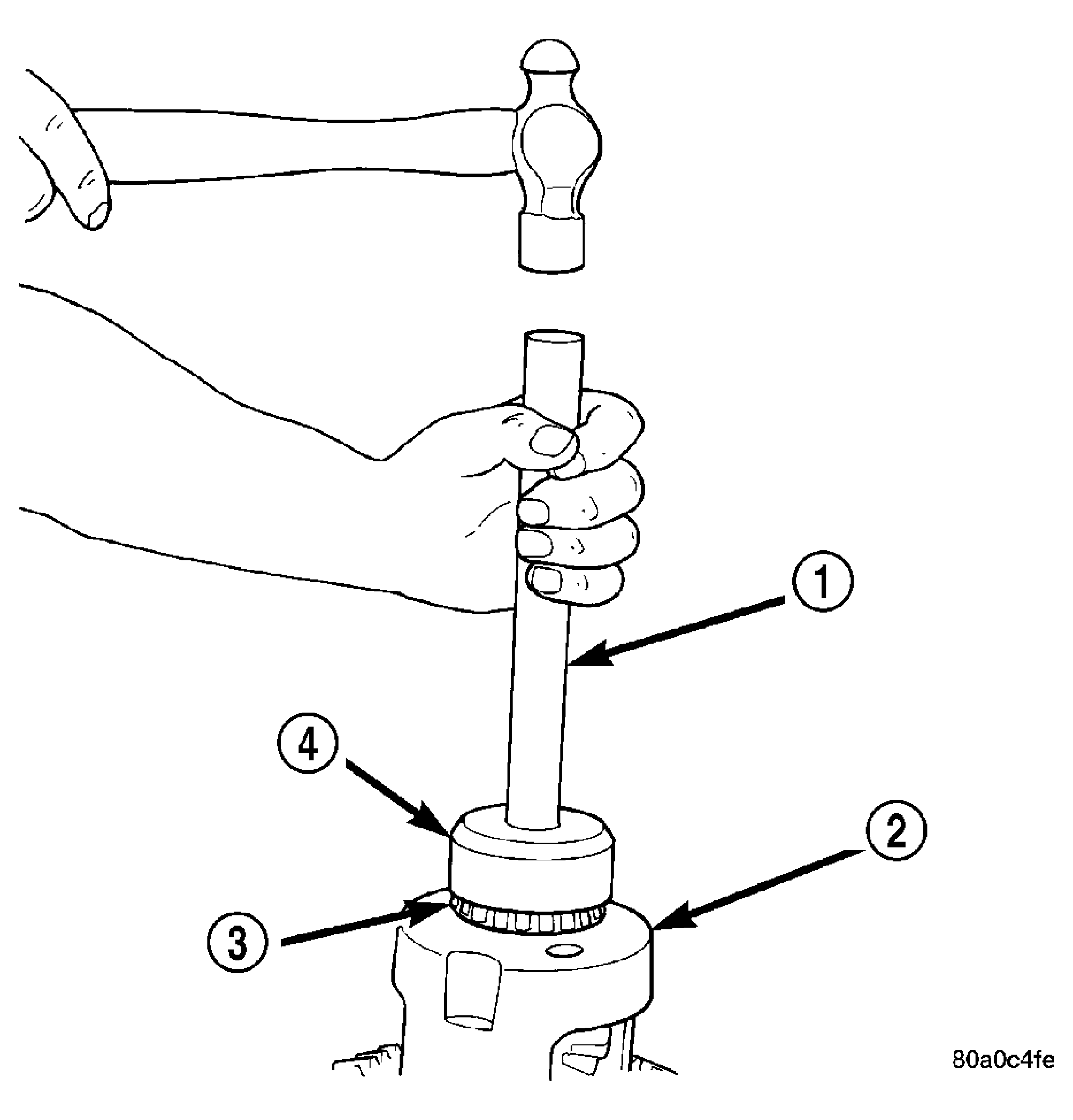

Fig 1: Differential Bearing Installer

Courtesy of DAIMLERCHRYSLER CORP.

1 - HANDLE

2 - DIFFERENTIAL

3 - BEARING

4 - INSTALLER

CAUTION: If equipped with Vari-lok(R), plenum must be seated against the differential case, prior to installing the ring gear side differential bearing. Failure to follow these instructions will damage the Vari-lok(R) plenum.

Install differential (2) bearings (3) with Installer C-4340 (4) and Handle C-4171(1). See Fig 1.
Install differential case in axle.
