Disassembly - With Snap Rings

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

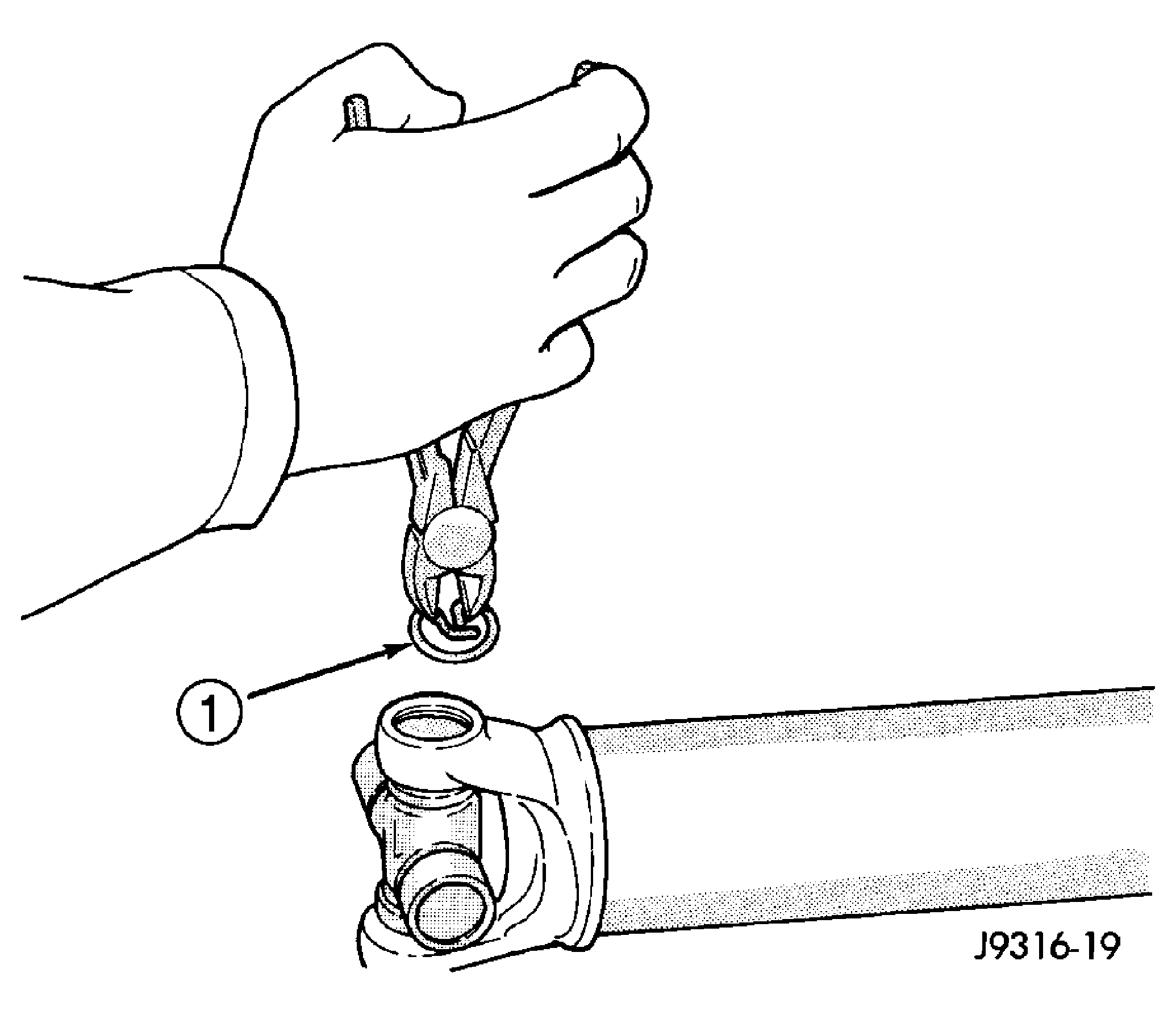

Fig 1: REMOVE SNAP RING

Courtesy of DAIMLERCHRYSLER CORP.

1 - SNAP-RING

NOTE: This procedure describes a propeller shaft equipped with a cardan joint in the tube yoke. For propeller shafts equipped with a companion/slip yoke, repeat the steps to remove the remaining cardan joint.

Tap outside of bearing cap with a drift to loosen snap ring.
Remove snap rings (1) from both sides of yoke. See Fig 1.

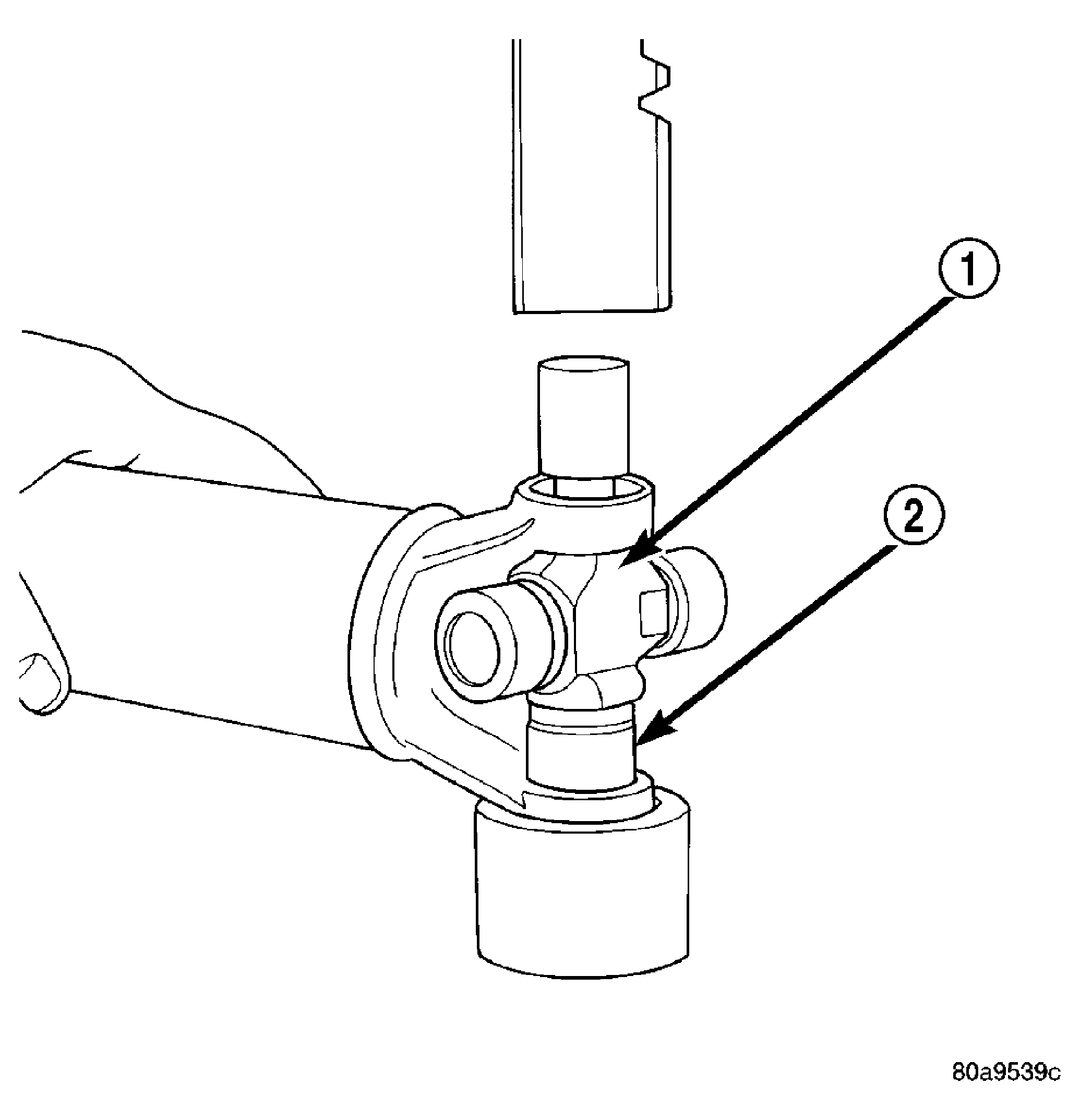

Fig 2: PRESS OUT BEARING
Courtesy of DAIMLERCHRYSLER CORP.

1 - PRESS

2 - SOCKET
Position yoke with the grease fitting if equipped, pointing up.
Position a socket (2) with a inside diameter large enough to receive the bearing cap, beneath the yoke on a press. See Fig 2.
Place another socket (2) with an outside diameter smaller than bearing cap on the upper bearing cap and press (1) the lower cap through the yoke.

Fig 3: PRESS OUT REMAINING BEARING
Courtesy of DAIMLERCHRYSLER CORP.

1 - CROSS

2 - BEARING CAP

NOTE: If the bearing cap will not pull out of the yoke by hand after pressing, tap the yoke ear near the bearing cap to dislodge the cap.
Pull bearing cap of the yoke.
Turn yoke over in the press and straighten the cross (1). See Fig 3. Press the cross until the remaining bearing cap (2) can be removed.

CAUTION: If cross or bearing cap are not straight during removal, the bearing cap will score the walls of the yoke bore and damage can occur.
