Shaft-Propeller Rear: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: COMPANION FLANGE

Courtesy of DAIMLERCHRYSLER CORP.

1 - PROPELLER SHAFT

2 - PINION COMPANION FLANGE

3 - REFERENCE MARK

4 - PROPELLER SHAFT COMPANION FLANGE

With vehicle in neutral, position vehicle on hoist.

Mark a reference line (3) across companion flanges (2) (4) and propeller shaft (1) for installation. See Fig 1.

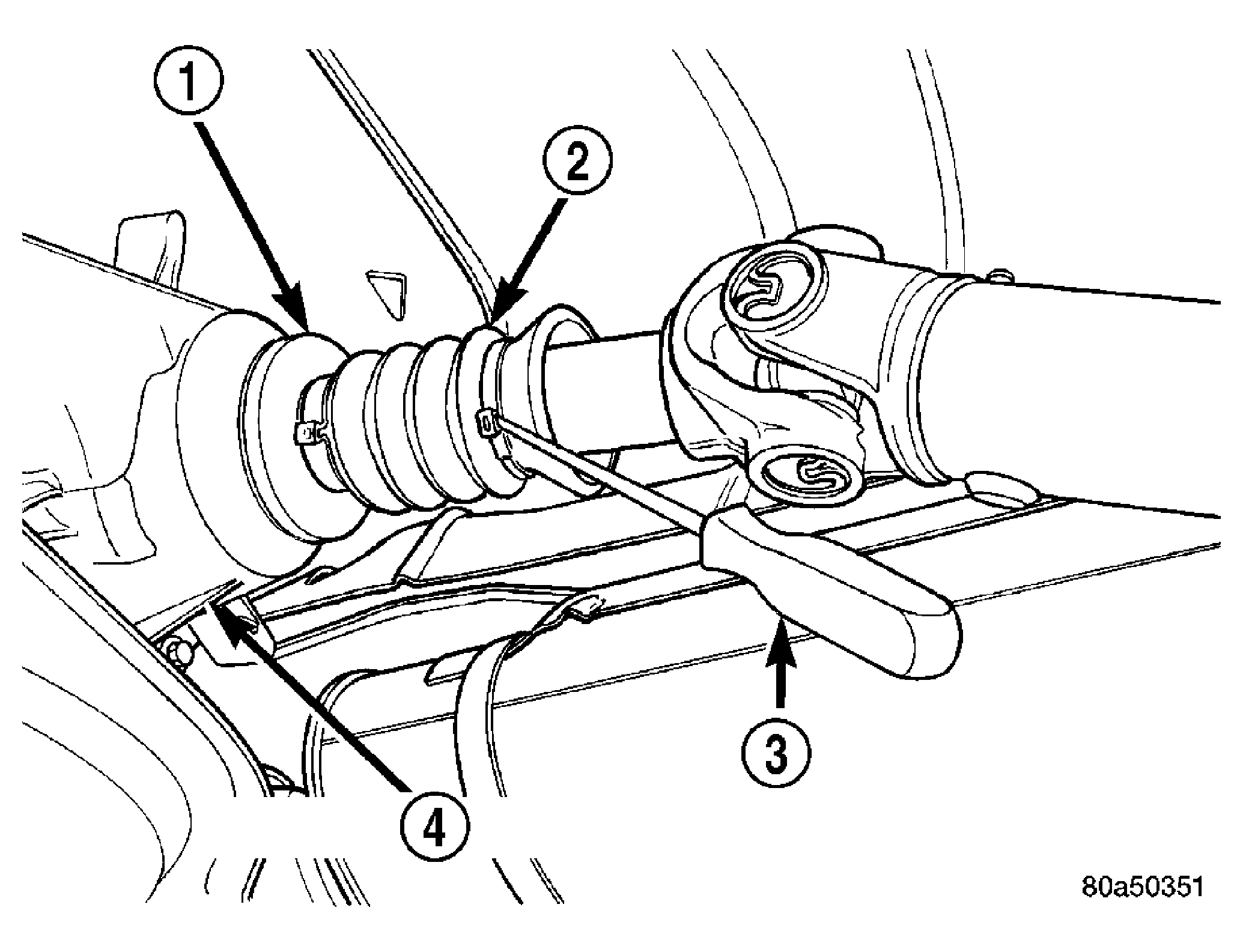

Fig 2: DUST BOOT CLAMP

Courtesy of DAIMLERCHRYSLER CORP.

1 - SLINGER

2 - BOOT

3 - AWL

4 - TRANSFER CASE

Pry open clamp holding the dust boot (2) to propeller shaft yoke, if equipped. See Fig 2.

Fig 3: MANUAL TRANSMISSION
Courtesy of DAIMLERCHRYSLER CORP.

1 - FLANGE

2 - FLANGE BOLT
On 4x2 vehicles with manual transmission remover transmission companion flange (1) bolts (2). See Fig 3.
Remove pinion companion flange bolts.
Remove propeller shaft.
