Shaft-Propeller Rear: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

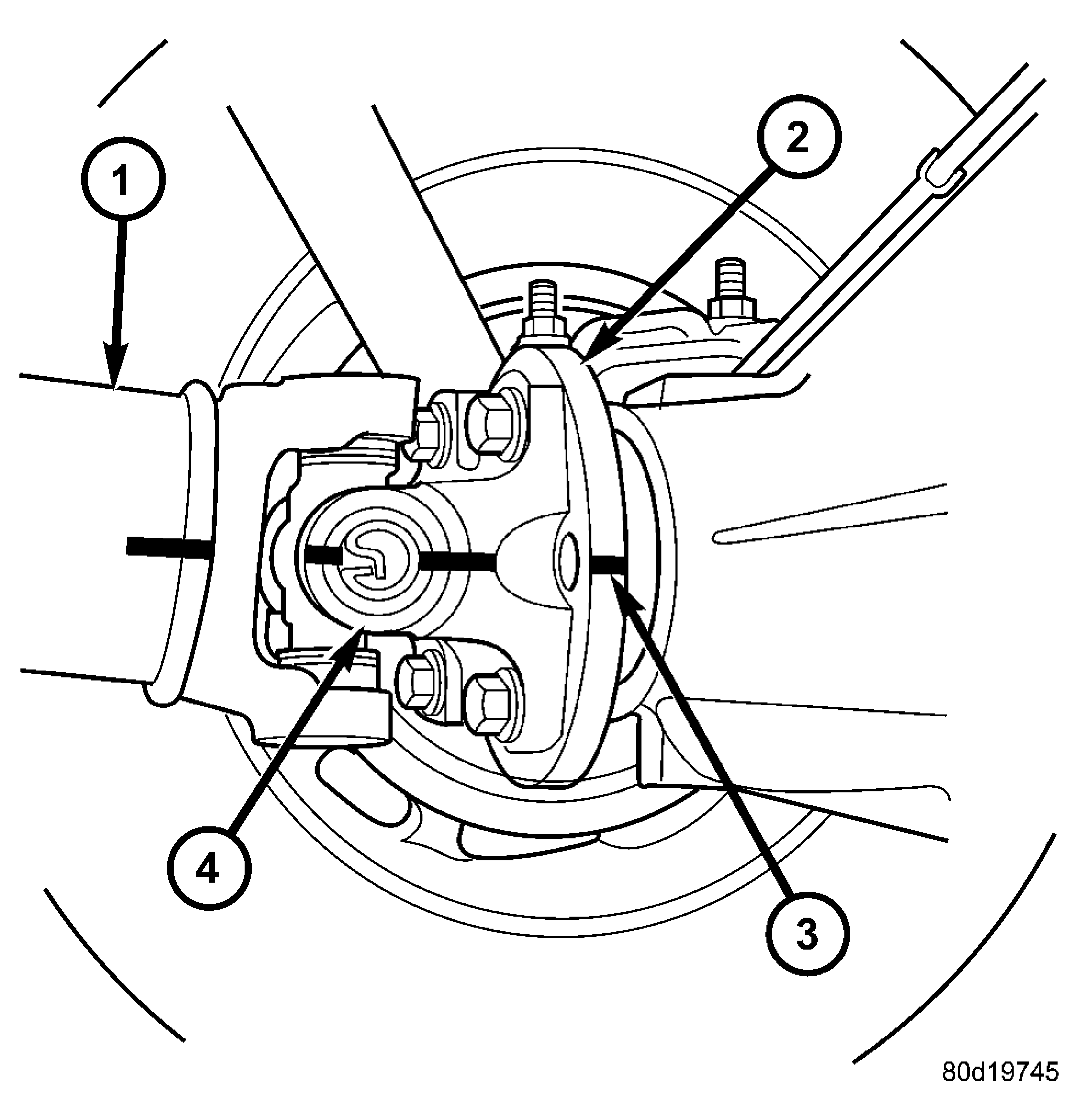

Fig 1: COMPANION FLANGE

Courtesy of DAIMLERCHRYSLER CORP.

1 - PROPELLER SHAFT

2 - PINION COMPANION FLANGE

3 - REFERENCE MARK

4 - PROPELLER SHAFT COMPANION FLANGE

Slide slip yoke on the transmission/transfer case output shaft. On 4x2 vehicles with a manual transmission install transmission flange bolts and tighten to 115 N.m (85 ft. lbs.).

Align reference marks (3) on companion flanges (2) (4) and propeller shaft (1). See Fig 1.

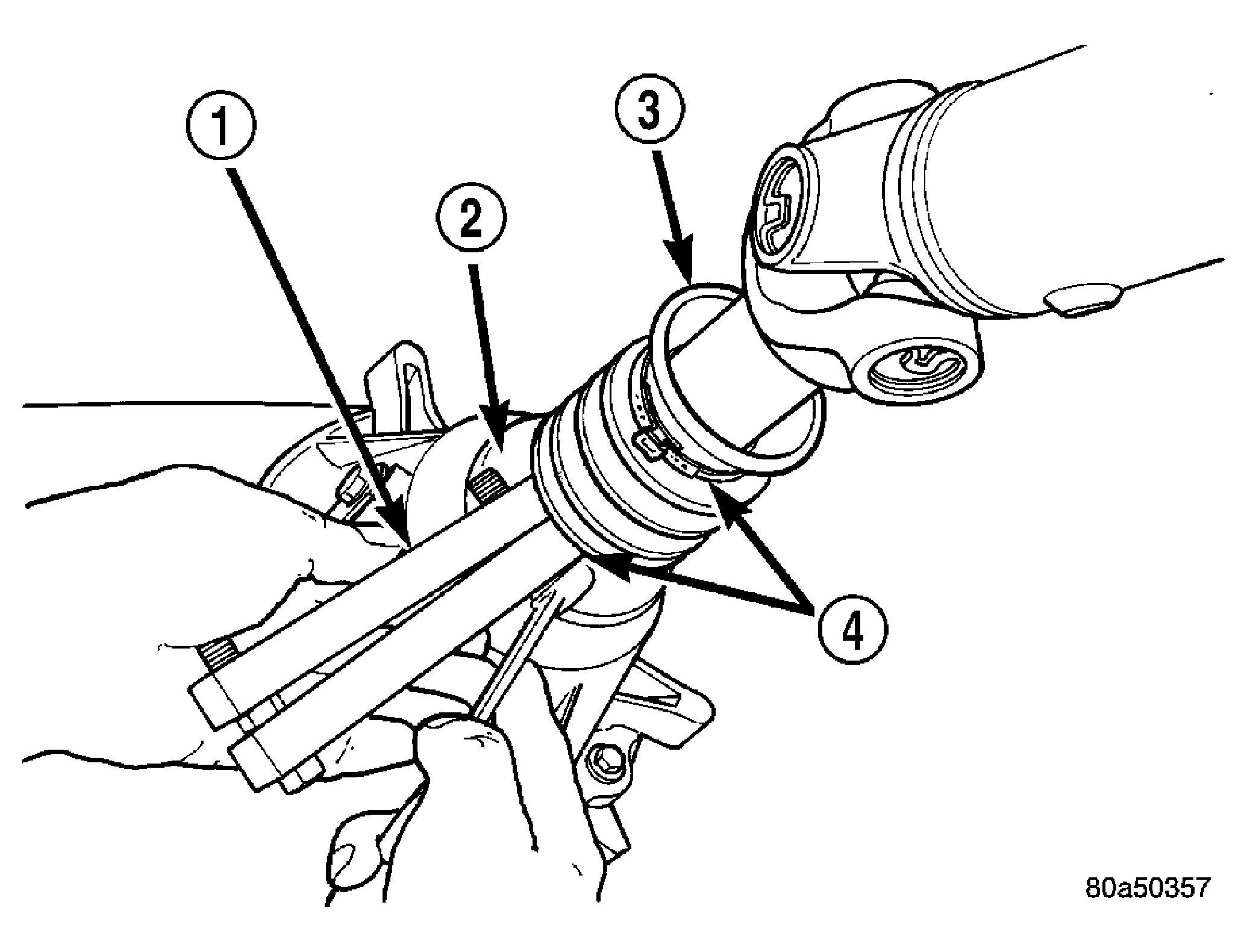

Fig 2: CRIMPING BOOT CLAMP

Courtesy of DAIMLERCHRYSLER CORP.

1 - CLAMP TOOL

2 - SLINGER

3 - BOOT

4 - CLAMPS

Install companion flange bolts and tighten to 115 N.m (85 ft. lbs.).
Tighten dust boot (3) clamp (4) if equipped with Clamp C-4975A (1). See Fig 2.
