2.8L Diesel

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

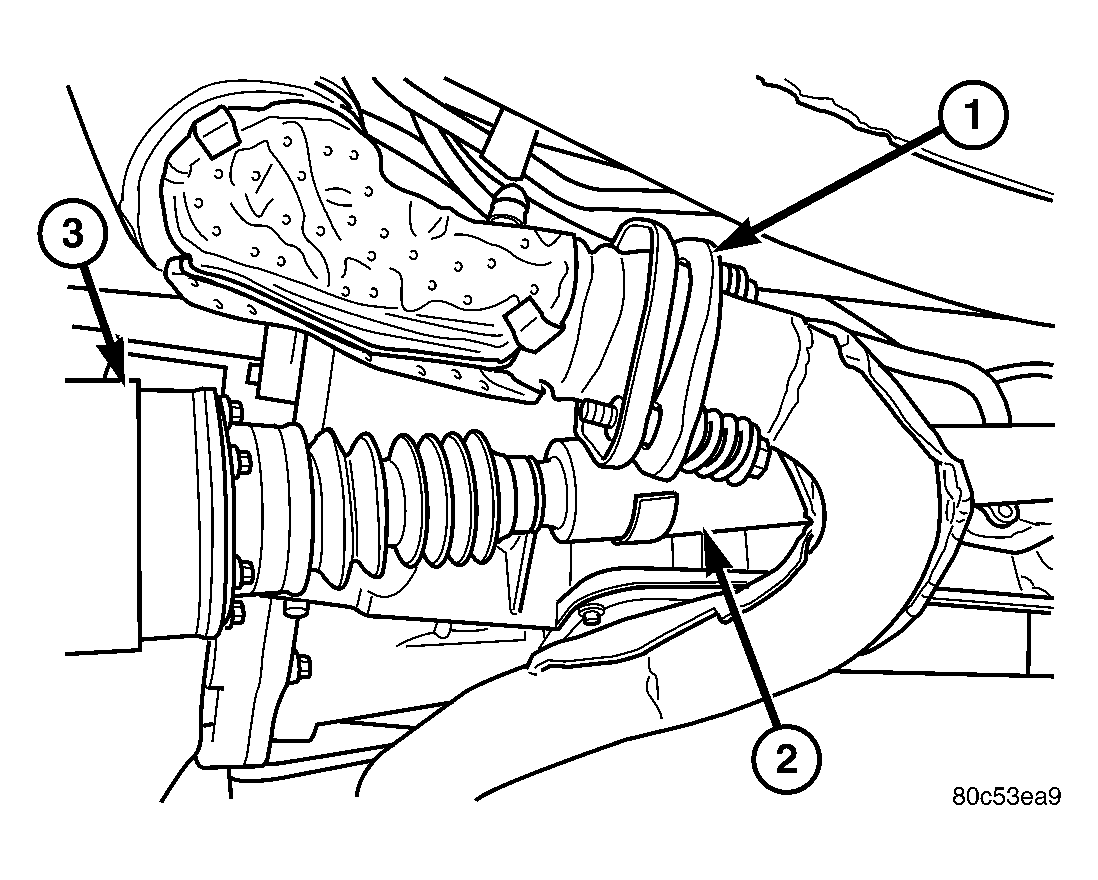

Fig 1: LEFT EXHAUST FLANGE

Courtesy of DAIMLERCHRYSLER CORP.

1 - EXHAUST FLANGE

2 - FRONT PROPELLER SHAFT

3 - COMPANION FLANGE

With vehicle in neutral, position vehicle on hoist.
Remove left side exhaust flange (1) bolts. See Fig 1.
Mark companion flanges (3) and C/V joints at the front (2) and rear of the propeller shaft for installation reference.

Fig 2: TRANSFER CASE COMPANION FLANGE
Courtesy of DAIMLERCHRYSLER CORP.

1 - FLANGE BOLT

2 - COMPANION FLANGE
Remove bolts (1) from the front and rear C/V joints. See Fig 2.
Push propeller shaft forward to clear transfer case companion flange (2).
Remove shaft from the front axle companion flange.
Pull down on the exhaust and tilt the front of the shaft down and pull shaft forward and remove from the vehicle.
