Gas Engines
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

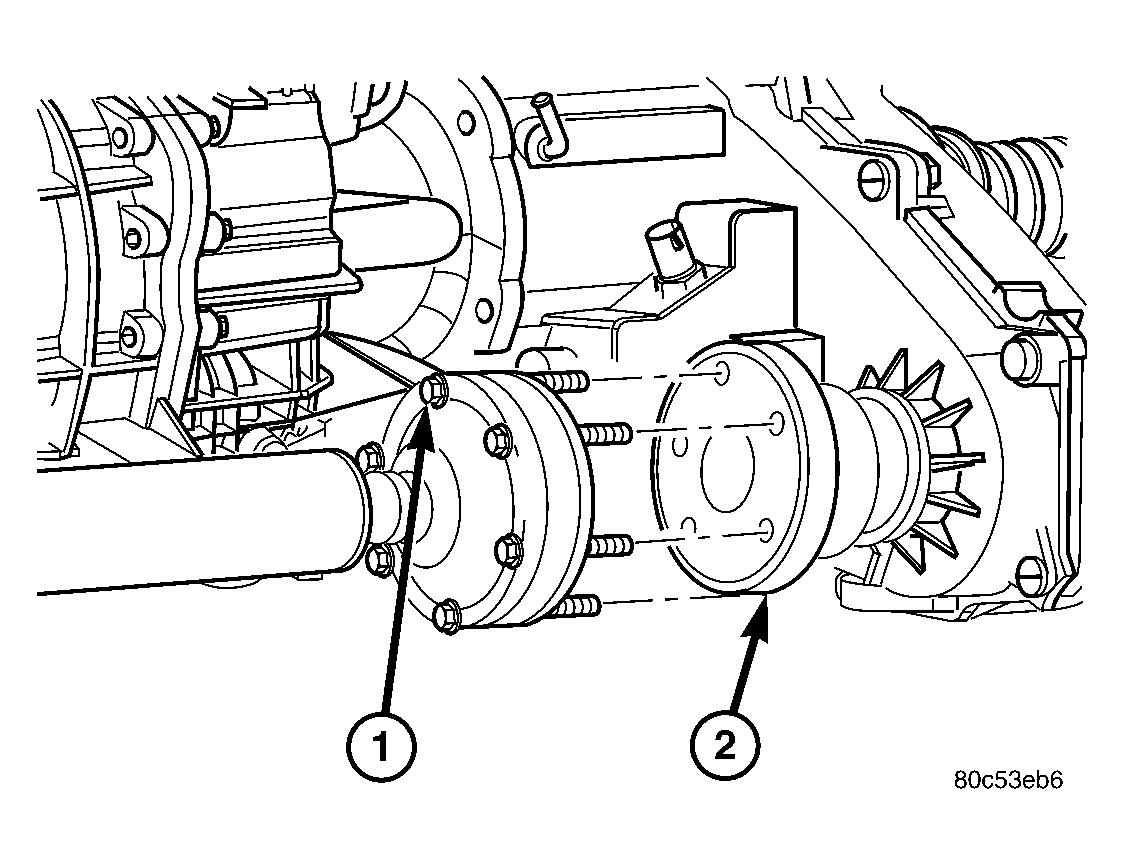

| 1 - FLANGE BOLT |
| 2 - COMPANION FLANGE |
- Install propeller shaft between companion flanges.
- Align marks on the companion flanges with the marks on the C/V joints.
- Install front C/V joint bolts and tighten to 30 N.m (22 ft. lbs.).
- Install rear C/V joint bolts (1) and tighten to 30 N.m (22 ft. lbs.). See Fig 1.
