Joint/Boot-C/V Outer: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

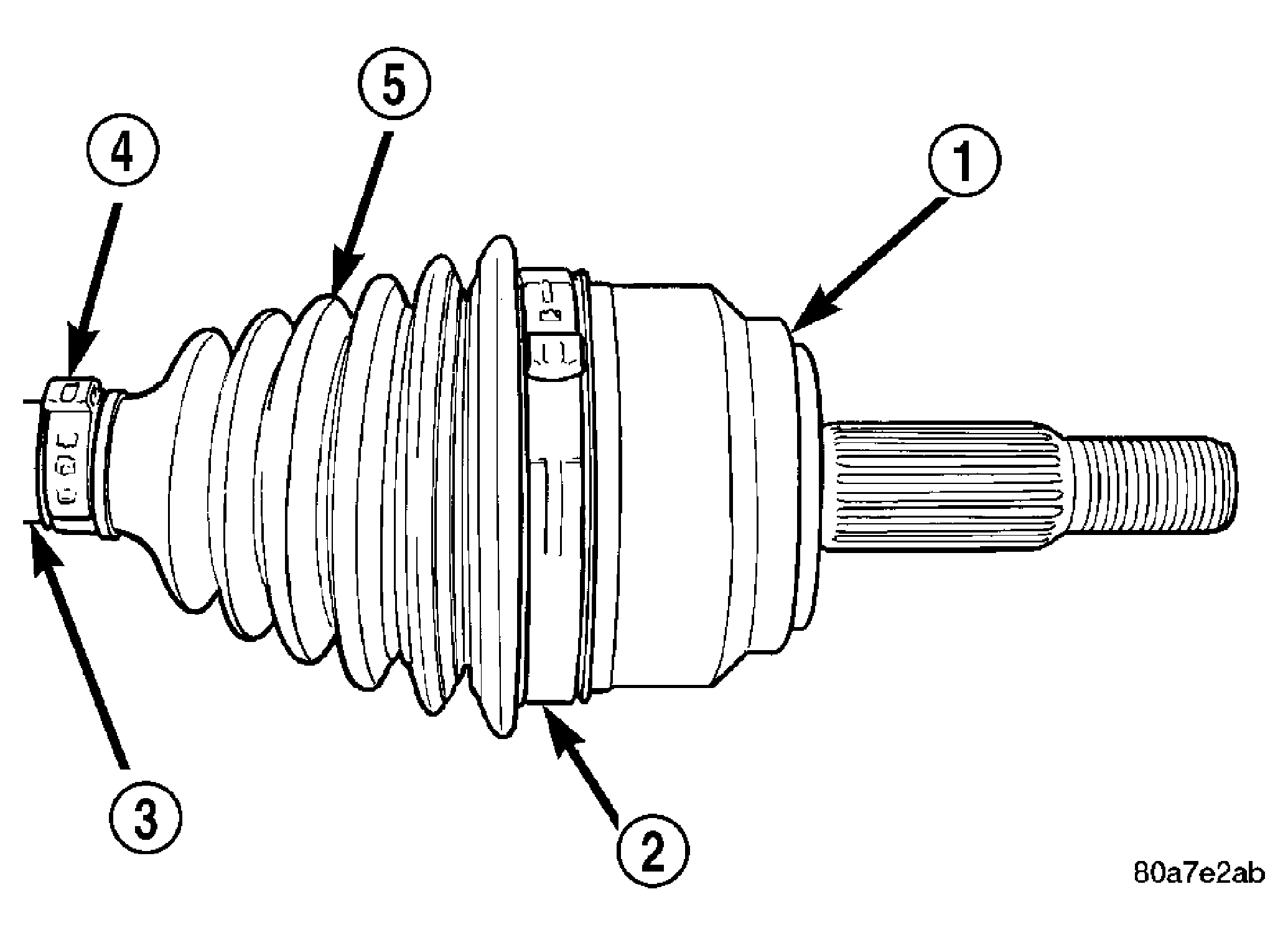

Fig 1: BOOT CLAMP LOCATIONS

Courtesy of DAIMLERCHRYSLER CORP.

1 - C/V HOUSING

2 - CLAMP

3 - HALF SHAFT

4 - CLAMP

5 - C/V BOOT

Place shaft in vise with soft jaws and support C/V joint.
CAUTION: Do not damage C/V housing or half shaft.

Remove clamps (2) (4) with a cut-off wheel or grinder. See Fig 1.

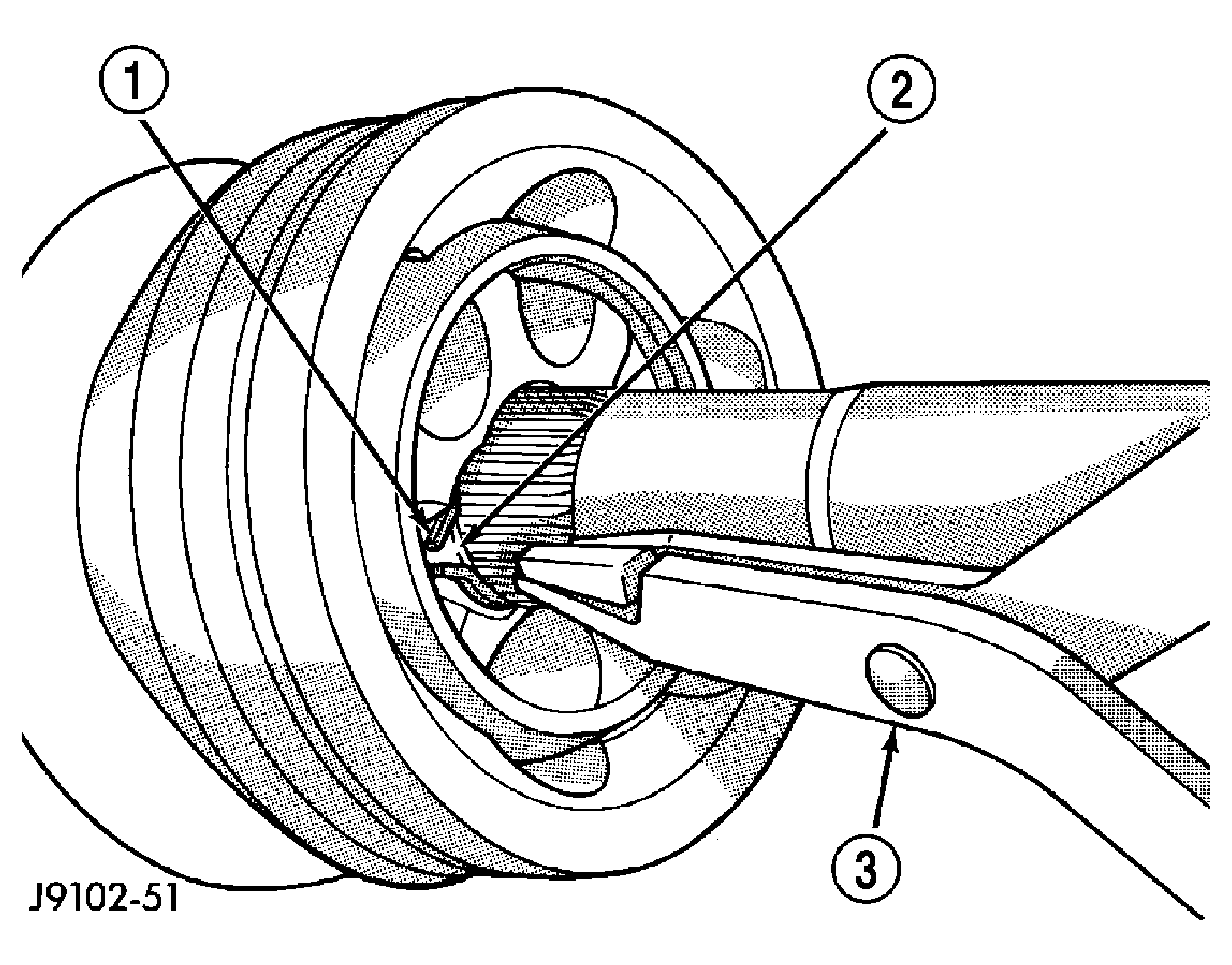

Fig 2: OUTER C/V JOINT

Courtesy of DAIMLERCHRYSLER CORP.

1 - SNAP RING

2 - SNAP RING GROVE

3 - SNAP RING PLIERS

Slide the boot down the shaft.
Remove lubricant to expose the C/V joint snap ring.

Spread snap ring (1) and slide the joint off the shaft. See Fig 2.

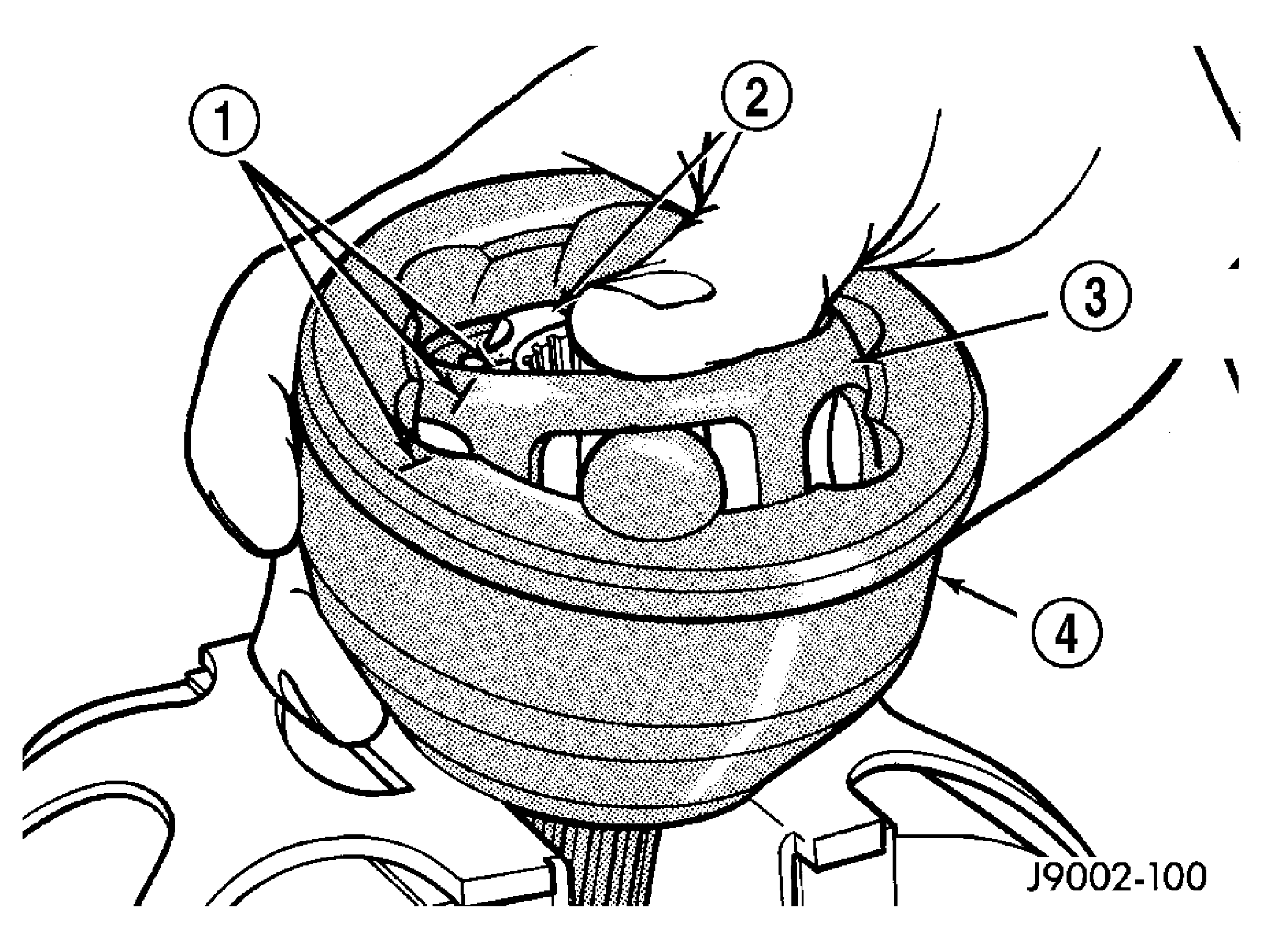

Fig 3: BEARING ACCESS

Courtesy of DAIMLERCHRYSLER CORP.

1 - ALIGNMENT MARKS

2 - BEARING HUB

3 - BEARING CAGE

4 - HOUSING

Slide boot off the shaft and discard old boot.

Mark alignment marks (1) on the inner race/hub (2), bearing cage (3) and housing with dabs of paint. See Fig 3.

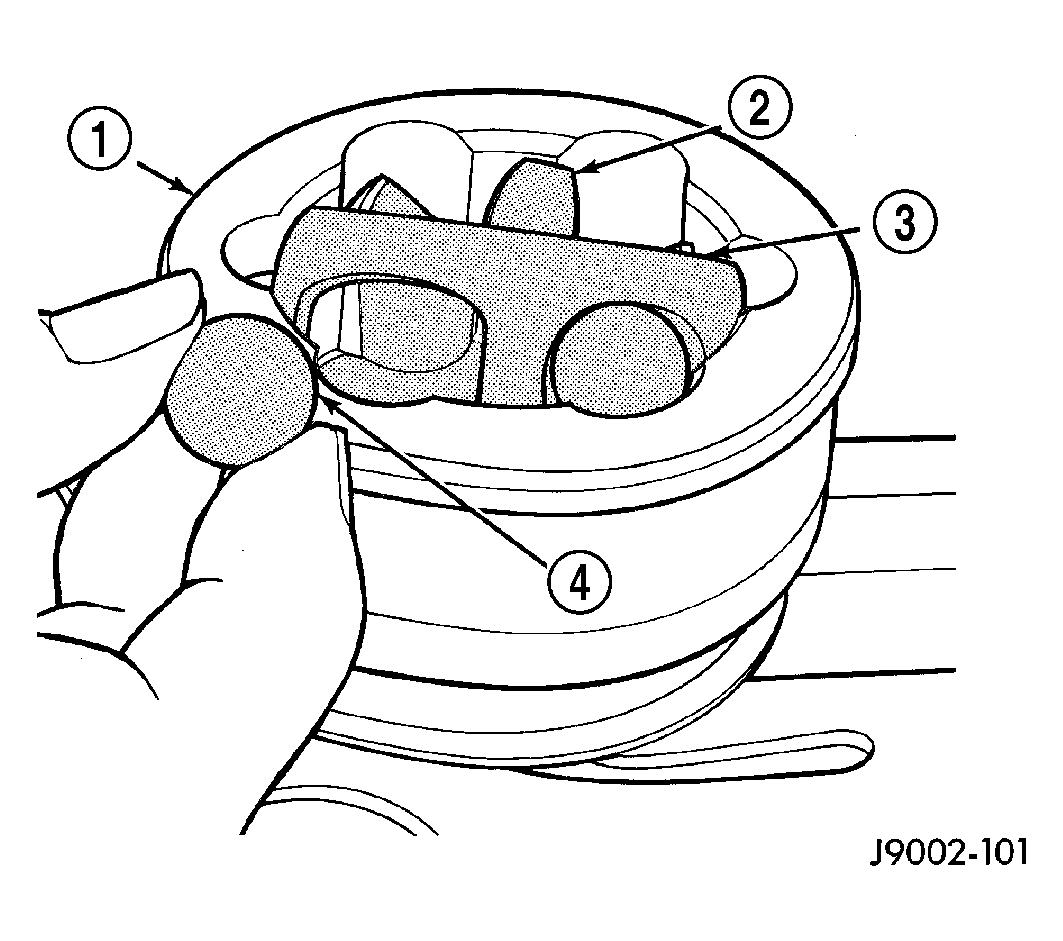

Fig 4: BEARING

Courtesy of DAIMLERCHRYSLER CORP.

1 - HOUSING

2 - INNER RACE/HUB

3 - BEARING CAGE

4 - BALL

Clamp C/V joint in a vertical position in a soft jawed vise.
Press down one side of the bearing cage (3) to gain access to the ball at the opposite side.
NOTE: If joint is tight, use a hammer and brass drift to loosen the bearing hub. Do not contact the bearing cage with the drift.
Remove ball (4) from the bearing cage (3). See Fig 4.

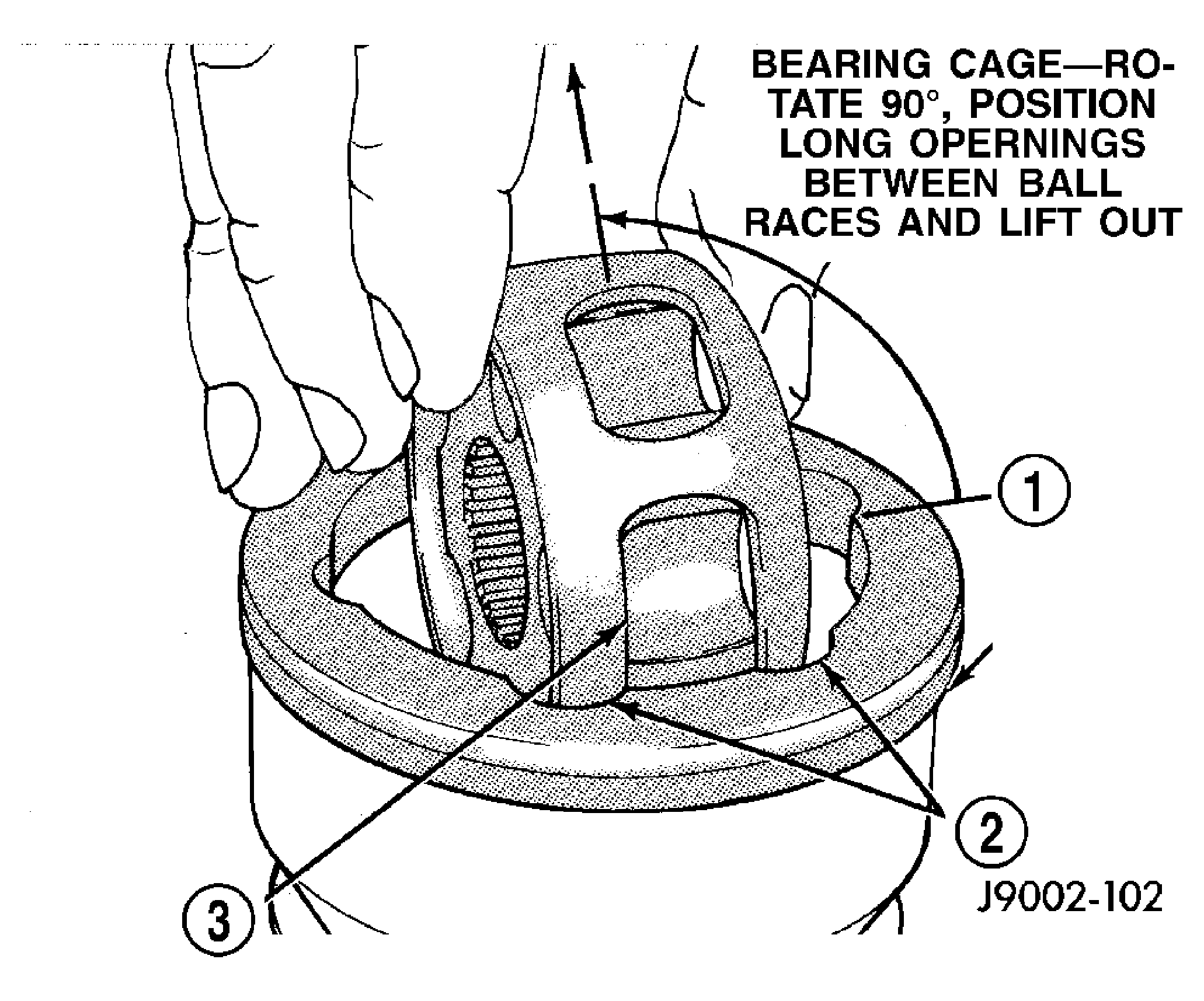

Fig 5: CAGE AND INNER RACE/HUB
Courtesy of DAIMLERCHRYSLER CORP.

1 - HOUSING

2 - INNER RACE

3 - CAGE WINDOW
Repeat step above until all six balls are removed from the bearing cage.
Lift cage and inner race (2) upward and out from the housing (1). See Fig 5.

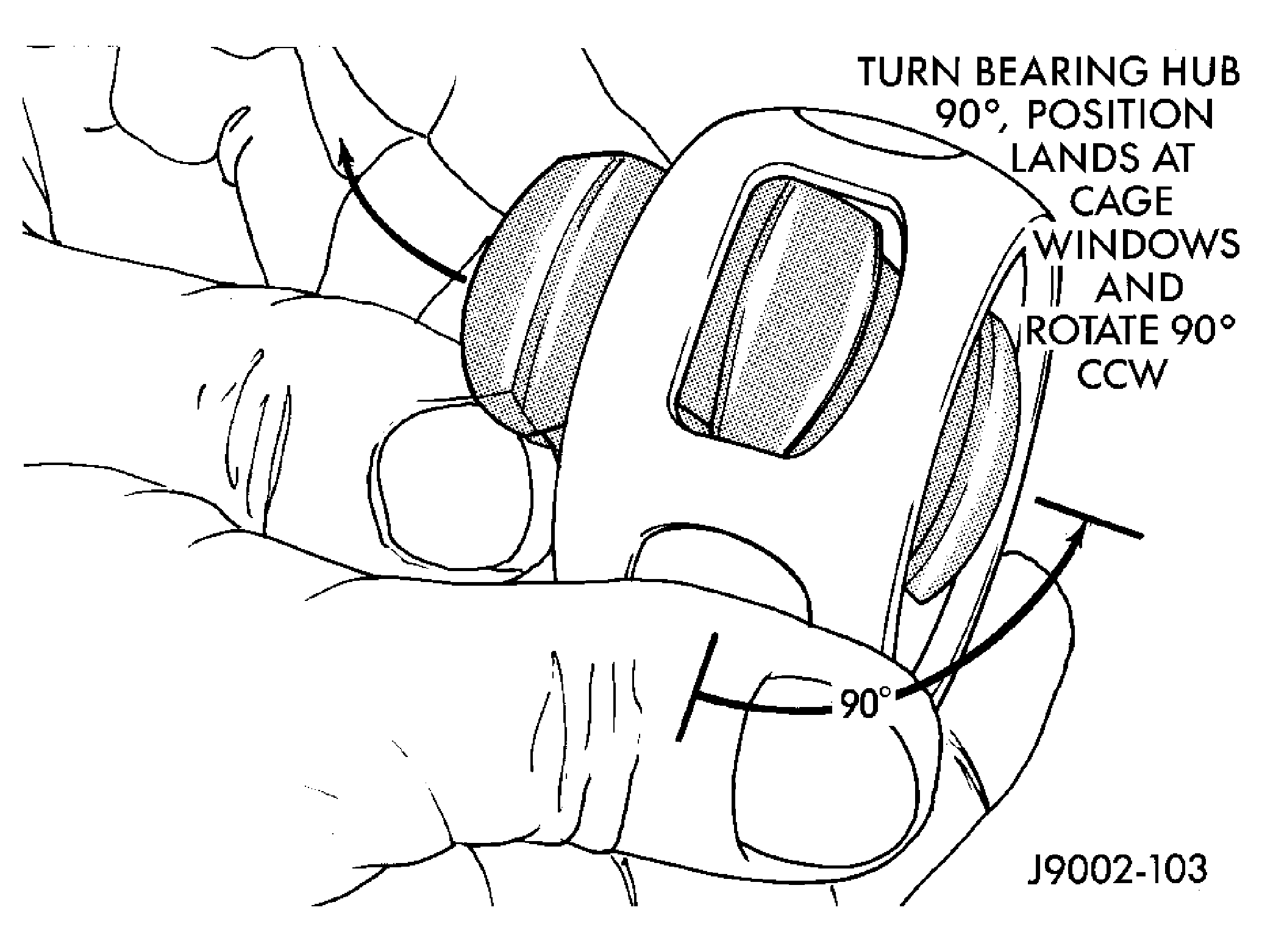

Fig 6: INNER RACE/HUB
Courtesy of DAIMLERCHRYSLER CORP.
Turn inner race 90° in the cage and rotate the inner race/hub out of the cage. See Fig 6.
