Joint/Boot-C/V Outer: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Inner Race/Hub
GC0007767Courtesy of DAIMLERCHRYSLER CORP.
1 - INNER RACE/HUB
2 - BEARING CAGE
  1. Apply a light coat of grease to the C/V joint components before assembling them.
  2. Align inner race, cage and housing according to the alignment reference marks.
  3. Insert inner race (1) into the cage (2) and rotate race into the cage. See Fig 1.

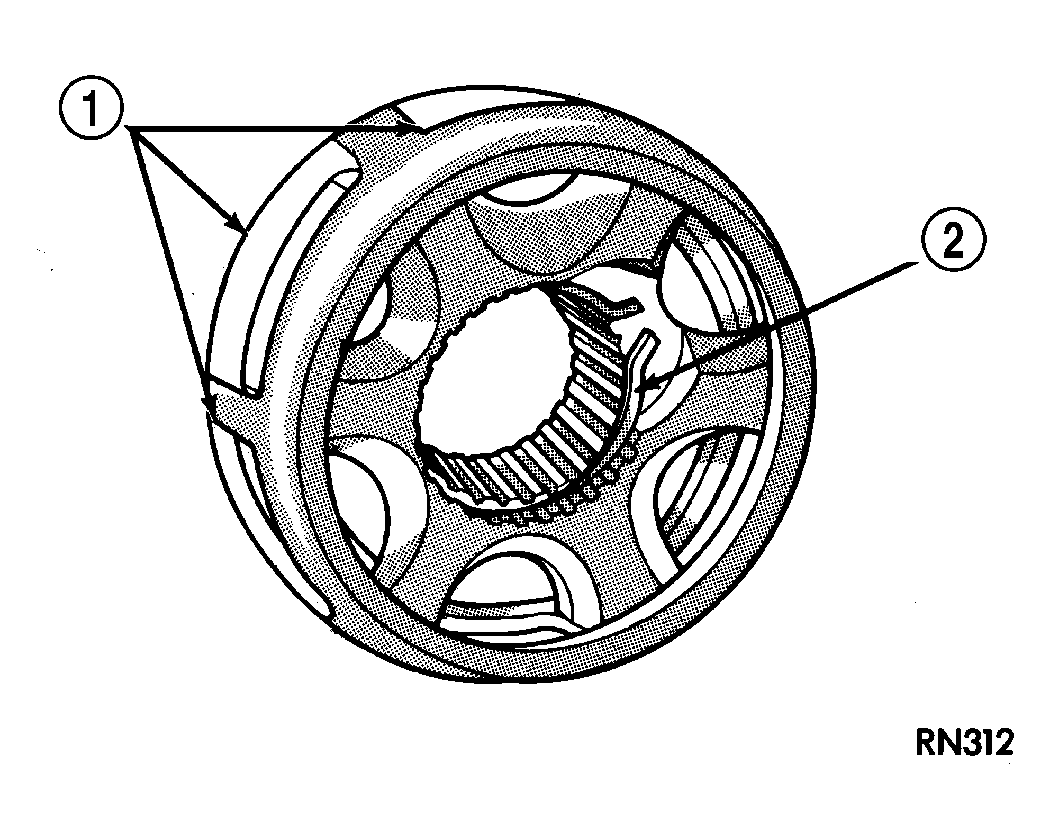

    Fig 2: Cage and Inner Race/Hub
    GC0007768Courtesy of DAIMLERCHRYSLER CORP.
    1 - CAGE WINDOWS
    2 - SNAP RING
  4. Rotate inner race/hub in the cage (1). See Fig 2.

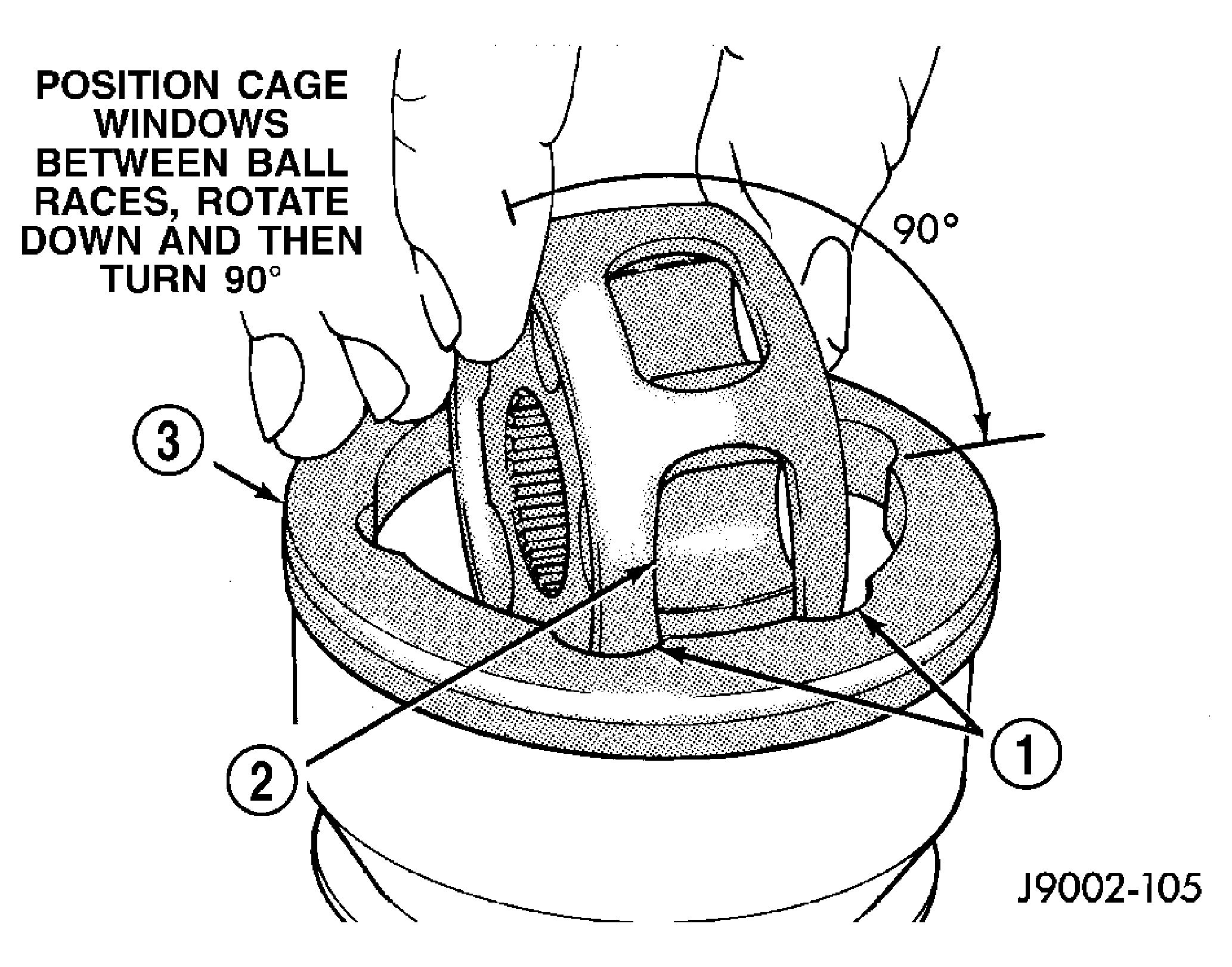

    Fig 3: Bearing Cage and Housing
    GC0007769Courtesy of DAIMLERCHRYSLER CORP.
    1 - OUTER RACE
    2 - BEARING CAGE WINDOW
    3 - CV JOINT HOUSING
  5. Insert cage into the housing (3). See Fig 3.

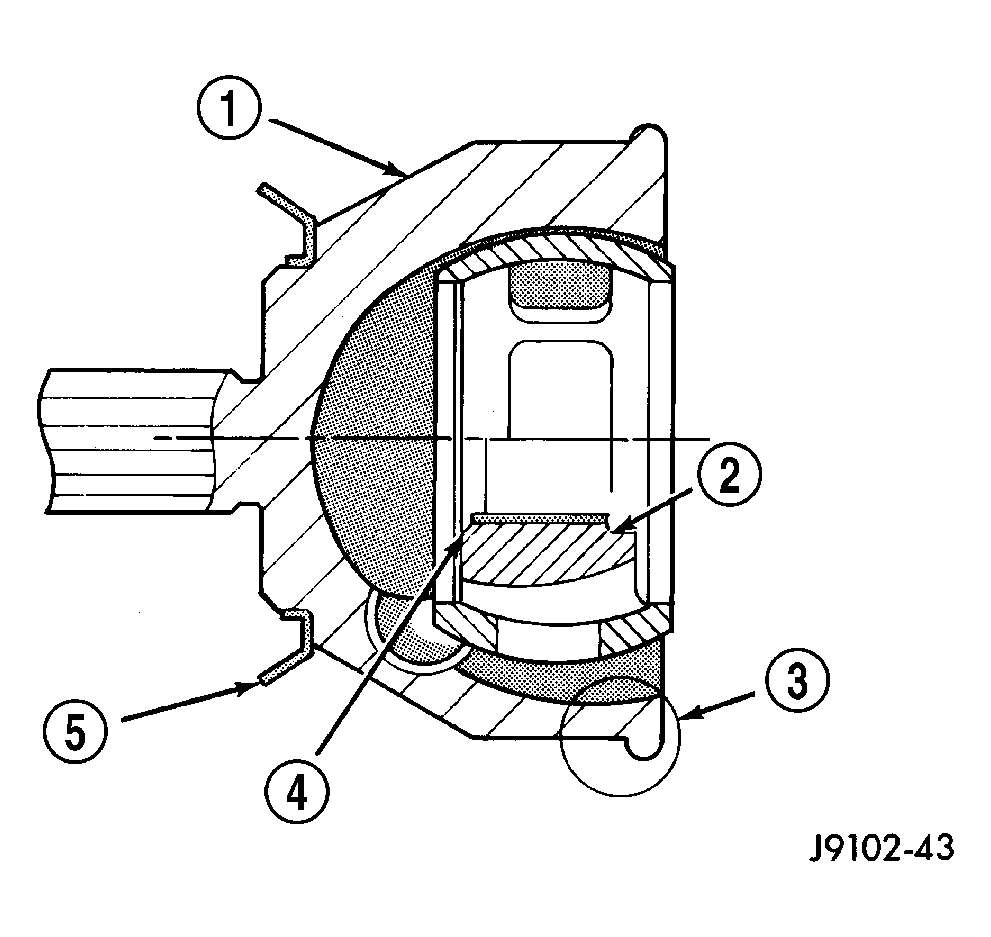

    Fig 4: HOUSING
    GC0007770Courtesy of DAIMLERCHRYSLER CORP.
    1 - C/V HOUSING
    2 - BEARING HUB LARGE COUNTERBORE OUTWARD
    3 - BOOT RETAINING SHOULDER
    4 - BEARING HUB SMALL COUNTERBORE INWARD
    5 - SLINGER
  6. Rotate cage 90° into the housing (1). See Fig 4.
  7. Apply lubricant included with replacement boot/joint to the ball races. Spread lubricant equally between all the races.
    Fig 5: Ball Bearing
    GC0007766Courtesy of DAIMLERCHRYSLER CORP.
    1 - C/V HOUSING
    2 - INNER RACE/HUB
    3 - BEARING CAGE
    4 - BEARING
  8. Tilt inner race/hub (2) and cage (3) and install the balls (4). See Fig 5.
  9. Place new clamps onto new boot and slide boot onto the shaft to it's original position.
  10. Apply the rest of lubricant to the C/V joint and boot.

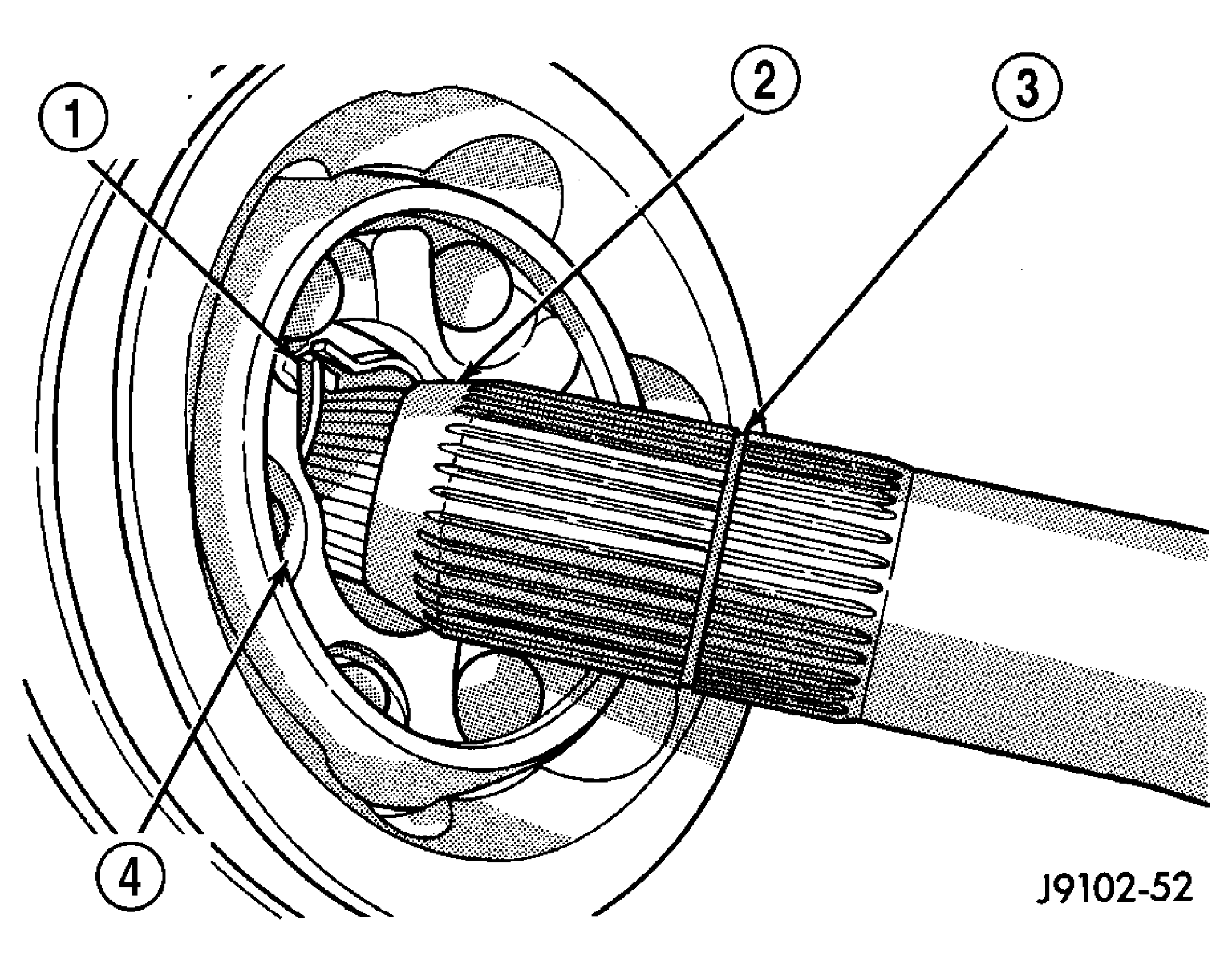

    Fig 6: Outer C/V Joint
    GC0007772Courtesy of DAIMLERCHRYSLER CORP.
    1 - SNAP RING
    2 - SHAFT TAPER
    3 - SNAP RING GROVE
    4 - BEARING HUB
  11. Push the joint onto the shaft until the snap ring (1) seats in the groove (3). See Fig 6. Pull on the joint to verify the span ring has engaged.
  12. Position boot on the joint in it's original position. Ensure boot is not twisted and remove any excess air.

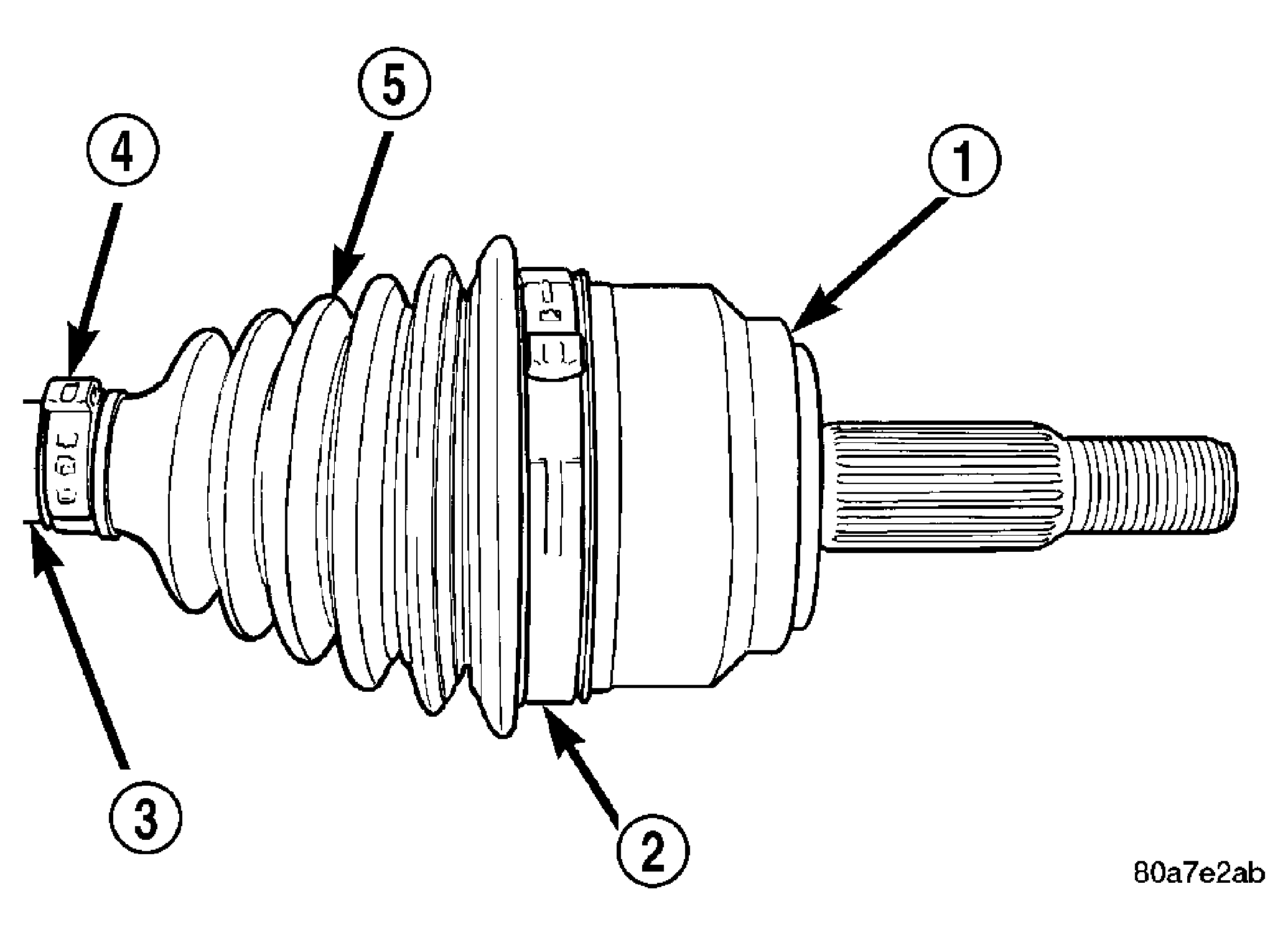

    Fig 7: Boot Clamp Locations
    GC0007765Courtesy of DAIMLERCHRYSLER CORP.
    1 - C/V HOUSING
    2 - CLAMP
    3 - HALF SHAFT
    4 - CLAMP
    5 - C/V BOOT
  13. Secure both boot clamps (2) (4) with Clamp Installer C-4975A. Place tool on clamp bridge and tighten tool until the jaws of the tool are closed. See Fig 7.
