Bearing-Differential Case: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

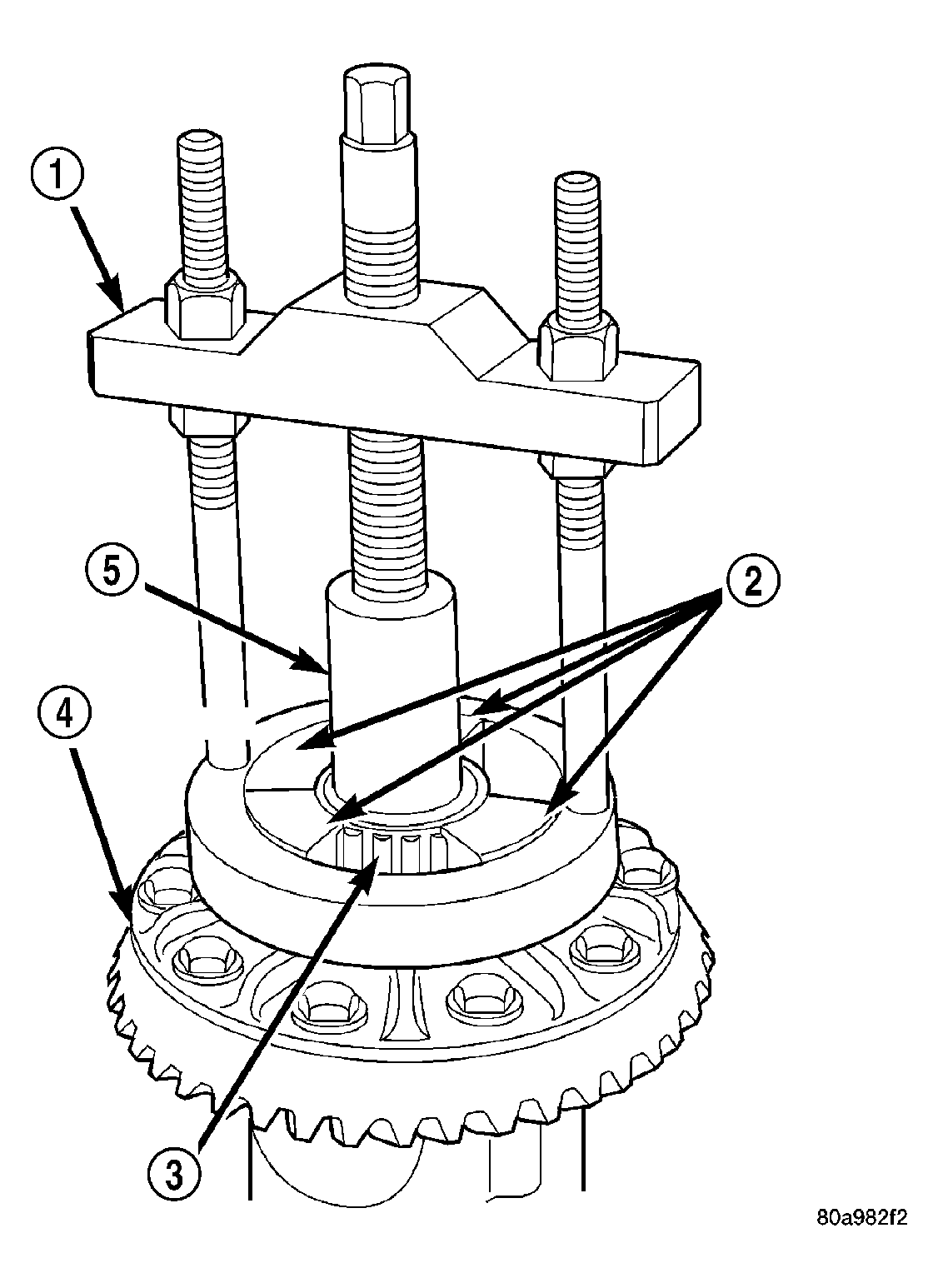

| 1 - PULLER |
| 2 - ADAPTERS |
| 3 - BEARING |
| 4 - DIFFERENTIAL |
| 5 - PLUG |
- Remove differential from the housing.
- Remove bearings (3) from the differential case (4) with Puller/Press C-293-PA (1), Adapters C-293-39 (2) and Plug SP-3289 (5). See Fig 1.
