Bearing-Differential Case: Installation
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

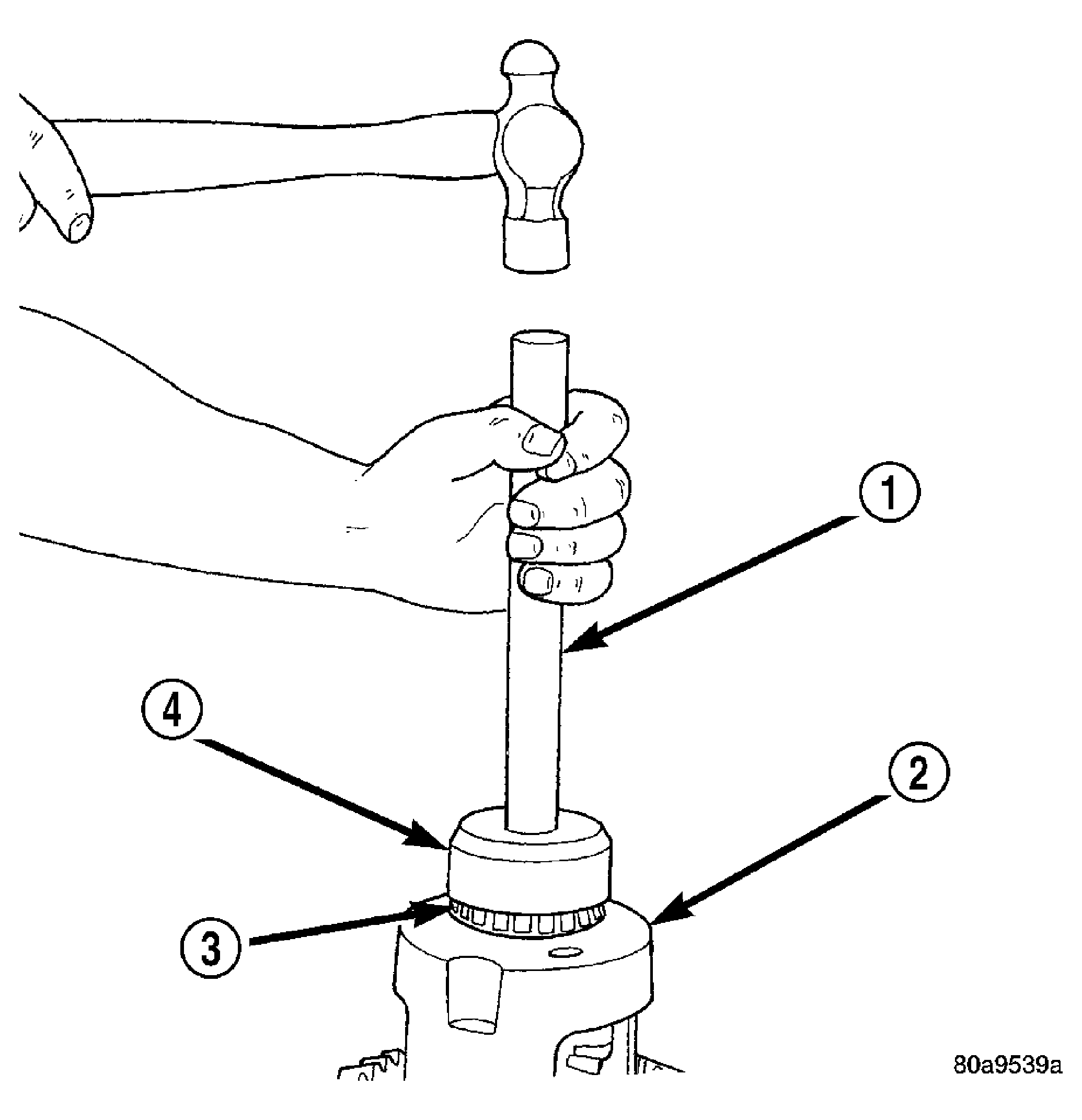

| 1 - HANDLE |
| 2 - DIFFERENTIAL |
| 3 - BEARING |
| 4 - INSTALLER |
- Install differential case (2) bearings (3) with Installer C-3716-A (4) and Handle C-4171(1). See Fig 1.
- Install differential into the housing.
