Front Axle - 186FIA: Bearing-Axle: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

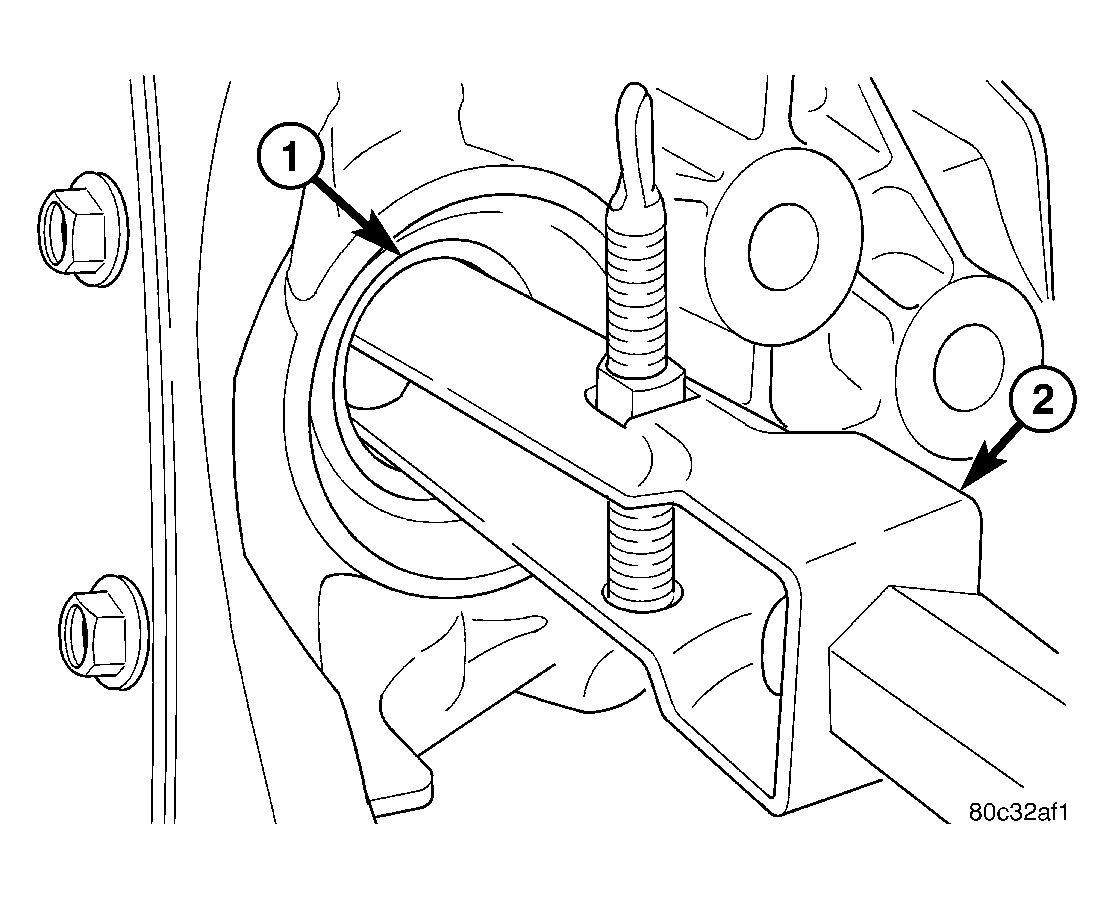

Fig 1: SHAFT BEARING REMOVER
GC0025037Courtesy of DAIMLERCHRYSLER CORP.
1 - SHAFT BEARING
2 - REMOVER
  1. Remove half shaft.
  2. Remove axle shaft for right side seal removal.
  3. Remove shaft seal with Remover 7794-A and a slide hammer.
  4. Remove shaft bearing (1) with Remover 7794-A (2) and a slide hammer. See Fig 1.
