Interior Lighting

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

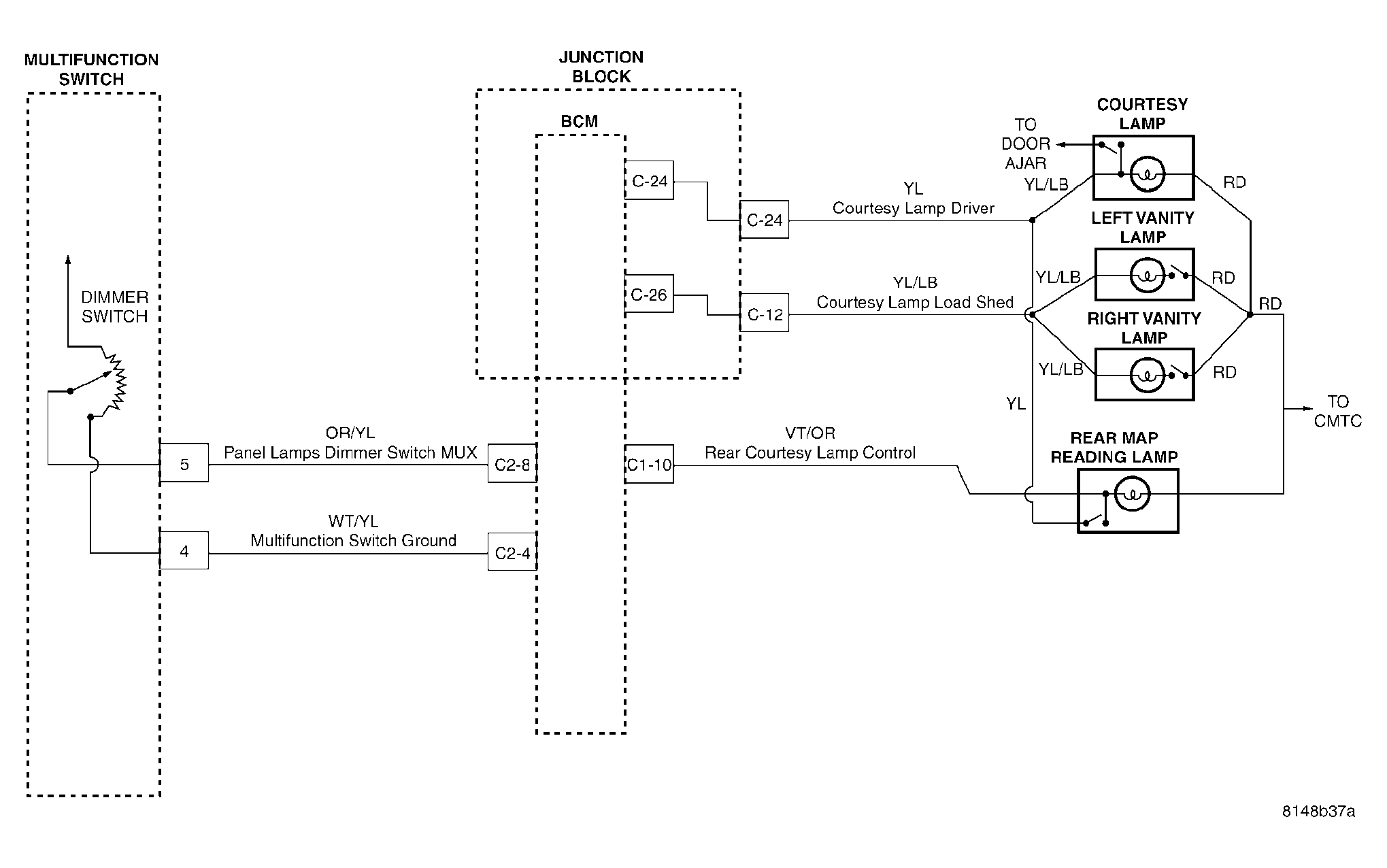

Fig 1: Schematic Diagram - Interior Lighting
G04550246Courtesy of DAIMLERCHRYSLER CORP.
