Door Ajar System

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

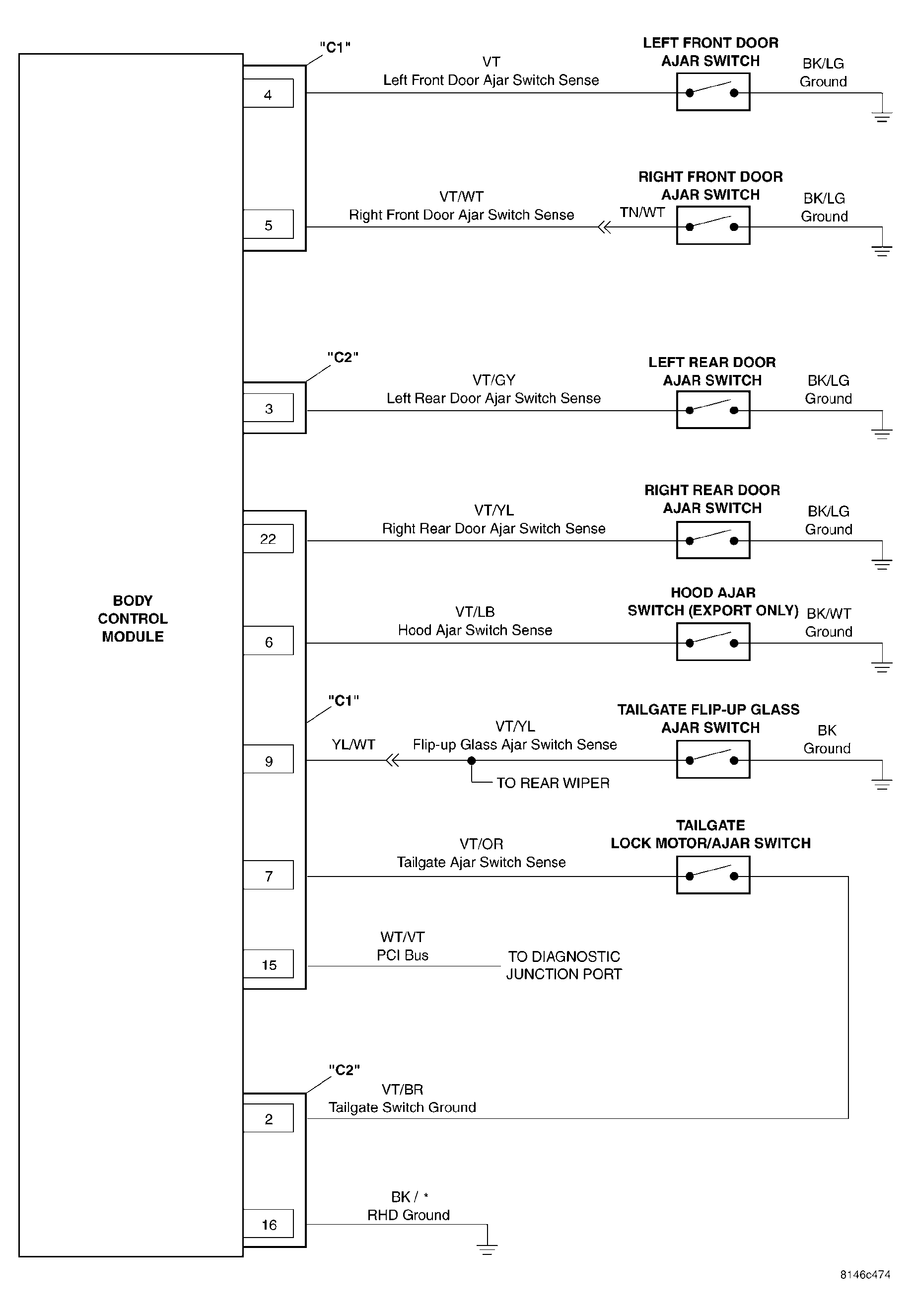

Fig 1: Schematic Diagram - Door Ajar System
G04550242Courtesy of DAIMLERCHRYSLER CORP.
