Radio C2 - 10 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

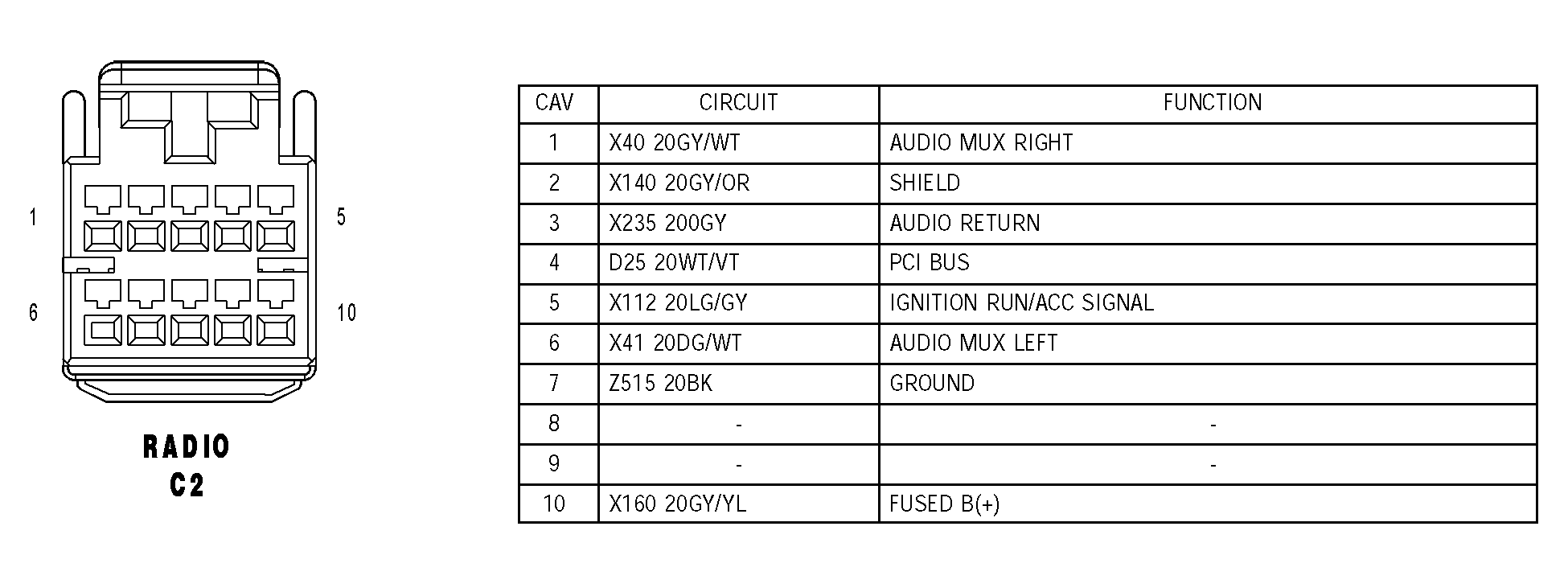

Fig 1: Radio C2 Connector Pinouts - 10 Way
G04550204Courtesy of DAIMLERCHRYSLER CORP.
