Powertrain Control Module C1 - Black/Black 38 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

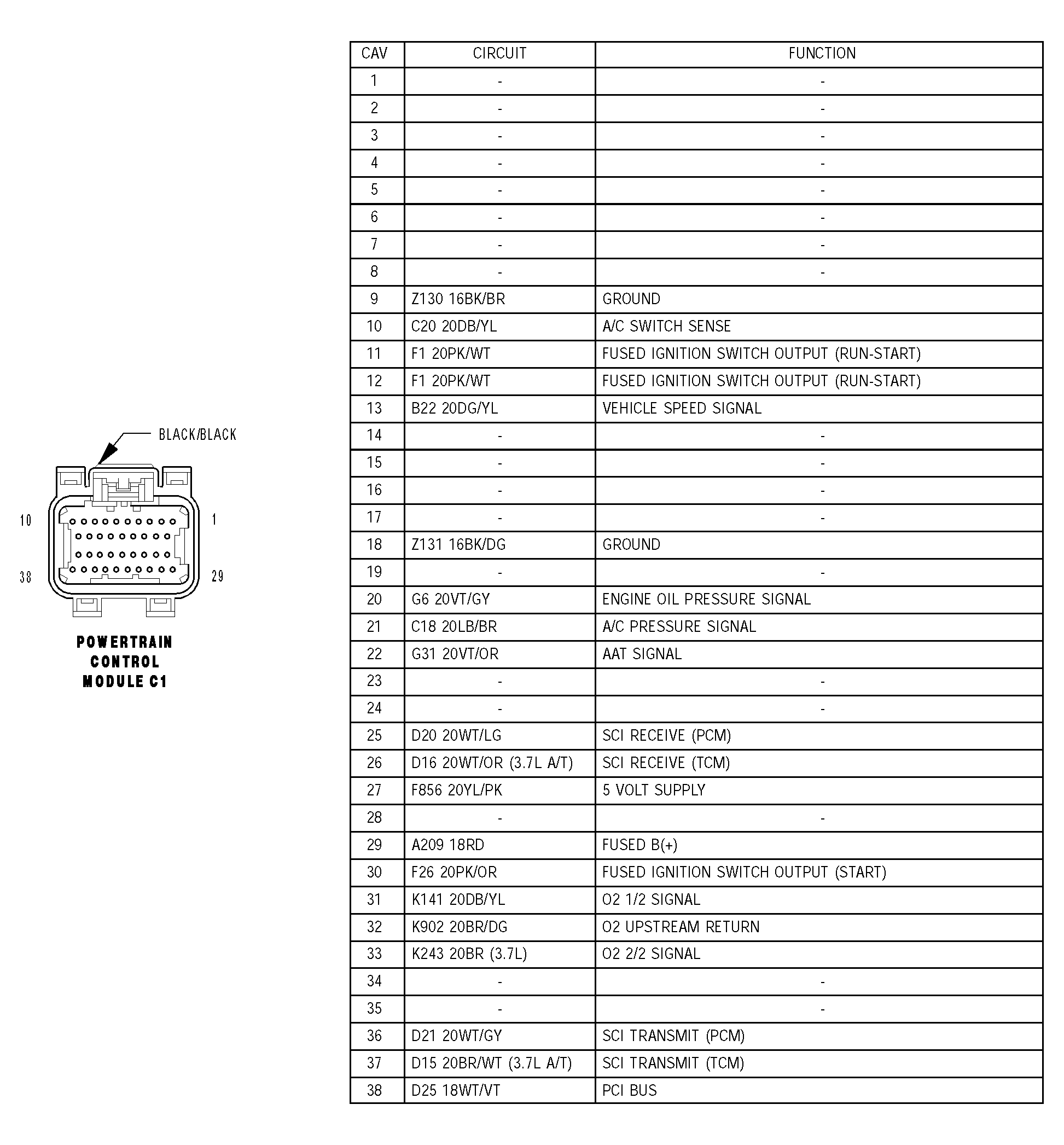

Fig 1: Powertrain Control Module C1 Connector Pinouts - Black/Black 38 Way
G04550201Courtesy of DAIMLERCHRYSLER CORP.
