WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

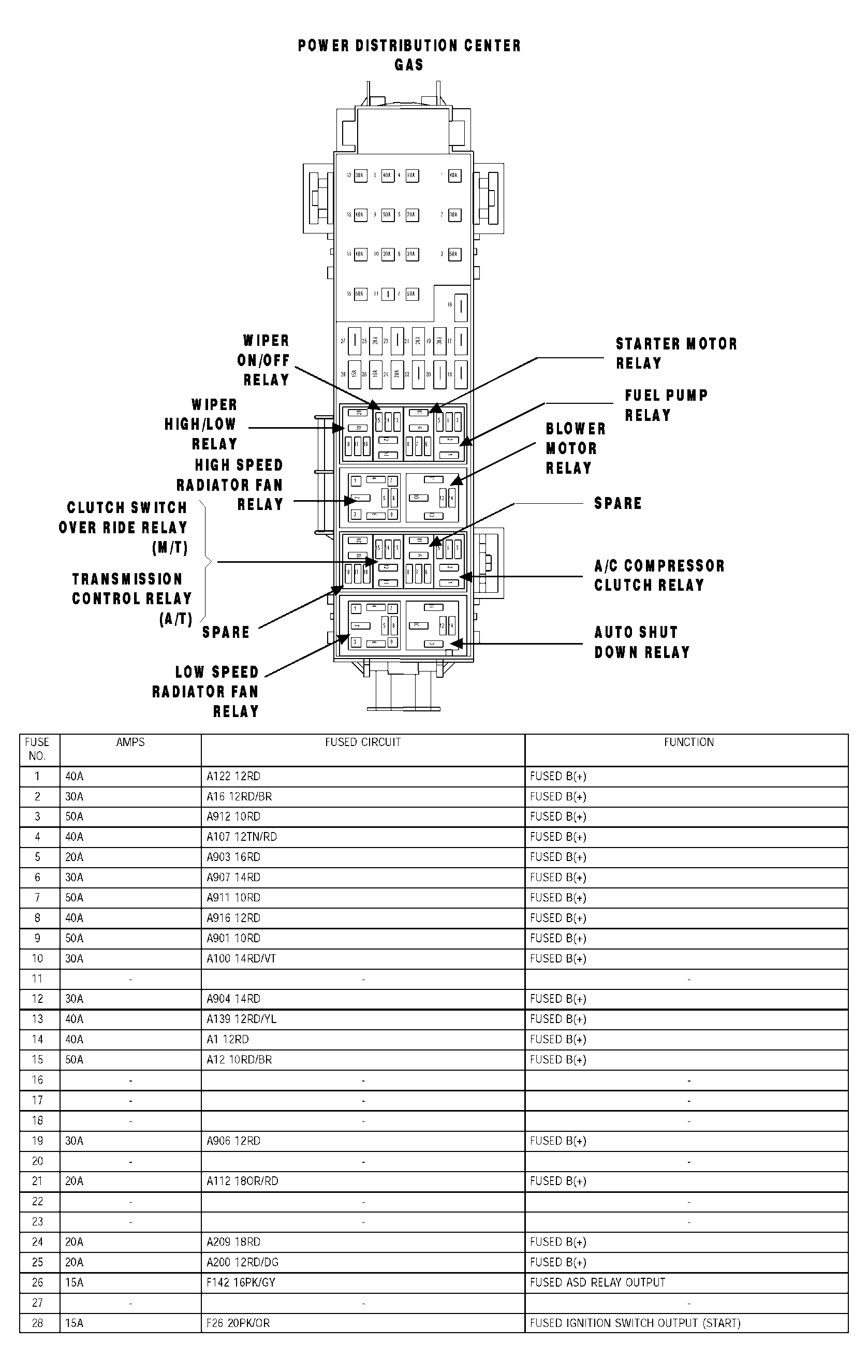

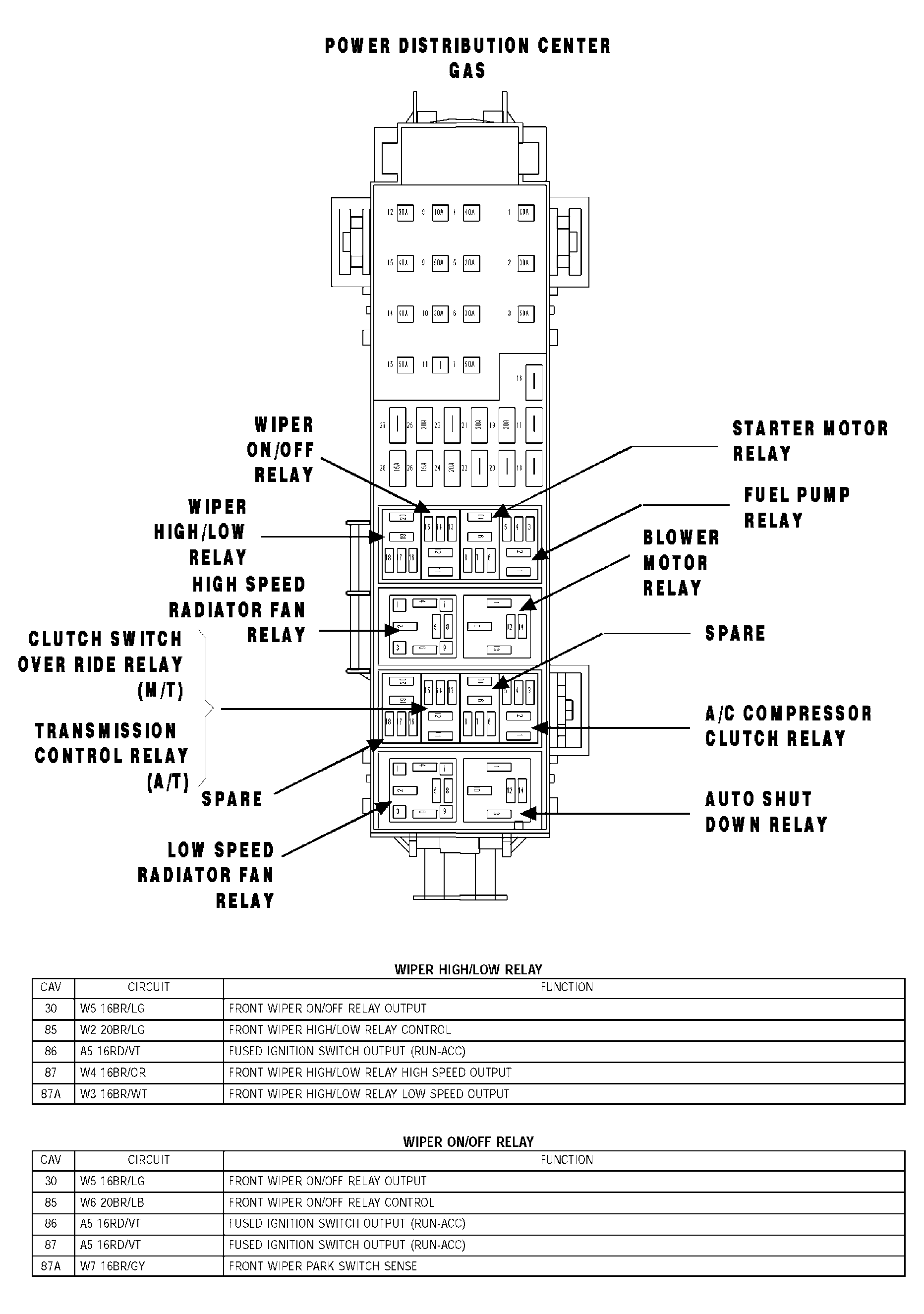

Fig 1: Power Distribution Center
Courtesy of DAIMLERCHRYSLER CORP.

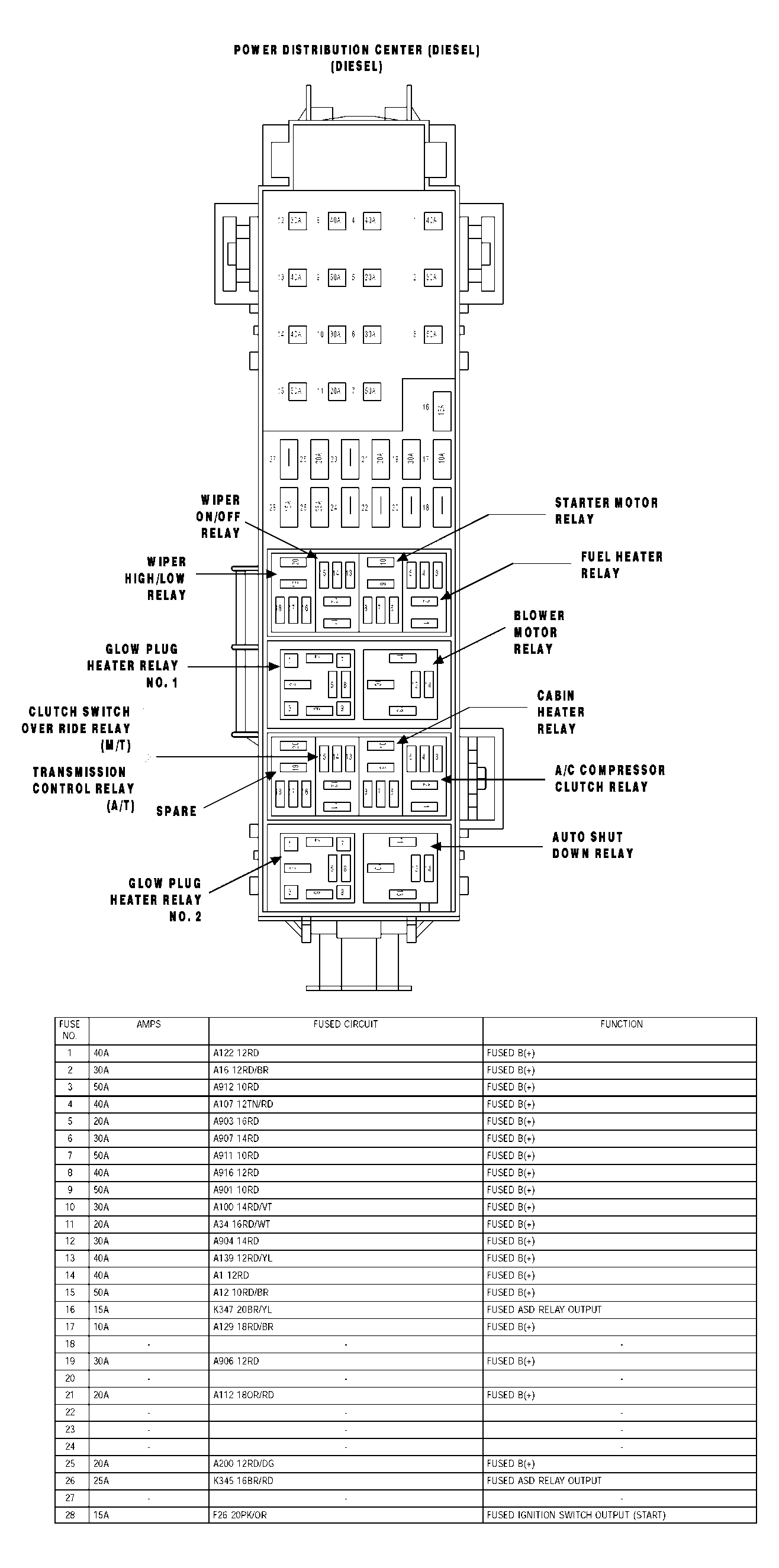

Fig 2: Connector Pinouts - Power Distribution Center (Diesel) (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Connector Pinouts - Power Distribution Center (Diesel) (2 Of 2)
