Passenger Airbag On/Off Indicator - 2 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

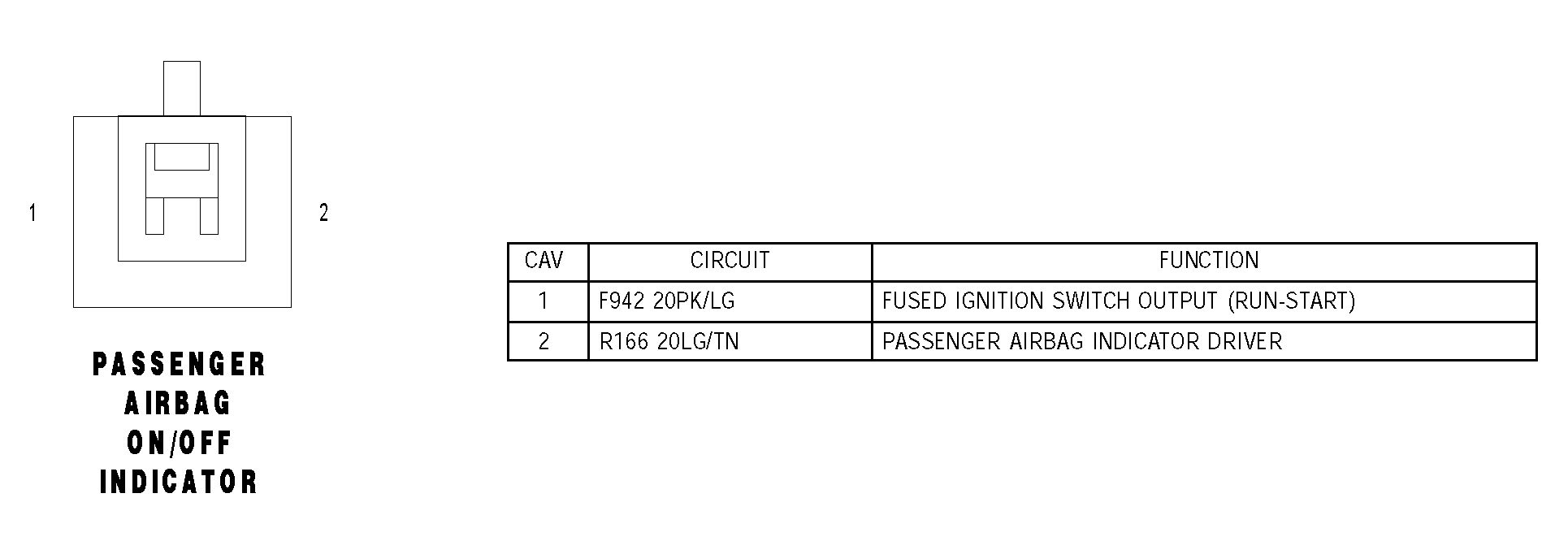

Fig 1: Passenger Airbag On/Off Indicator Connector Pinouts - 2 Way
G04550192Courtesy of DAIMLERCHRYSLER CORP.
