Left Rear Door Lock Motor/Ajar Switch (Except Base) - Black 4 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

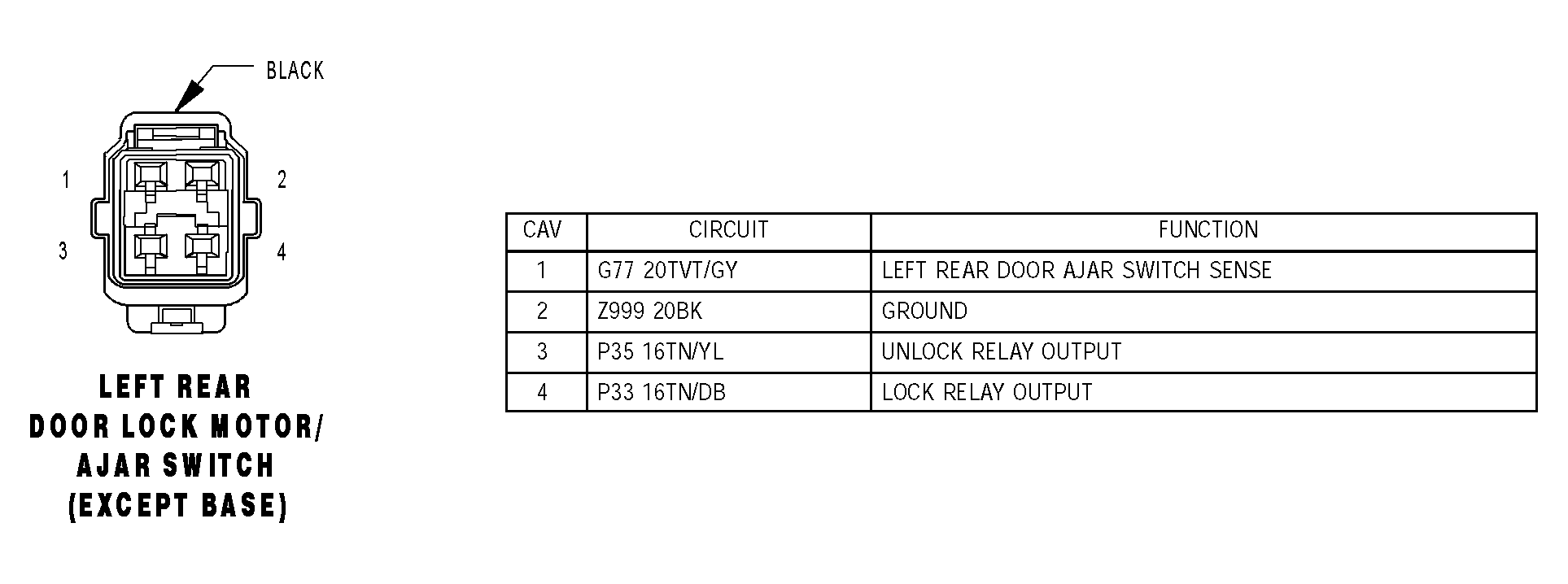

Fig 1: Left Rear Door Lock Motor/Ajar Switch (Except Base) Connector Pinouts - Black 4 Way
G04550185Courtesy of DAIMLERCHRYSLER CORP.
