Junction Block

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

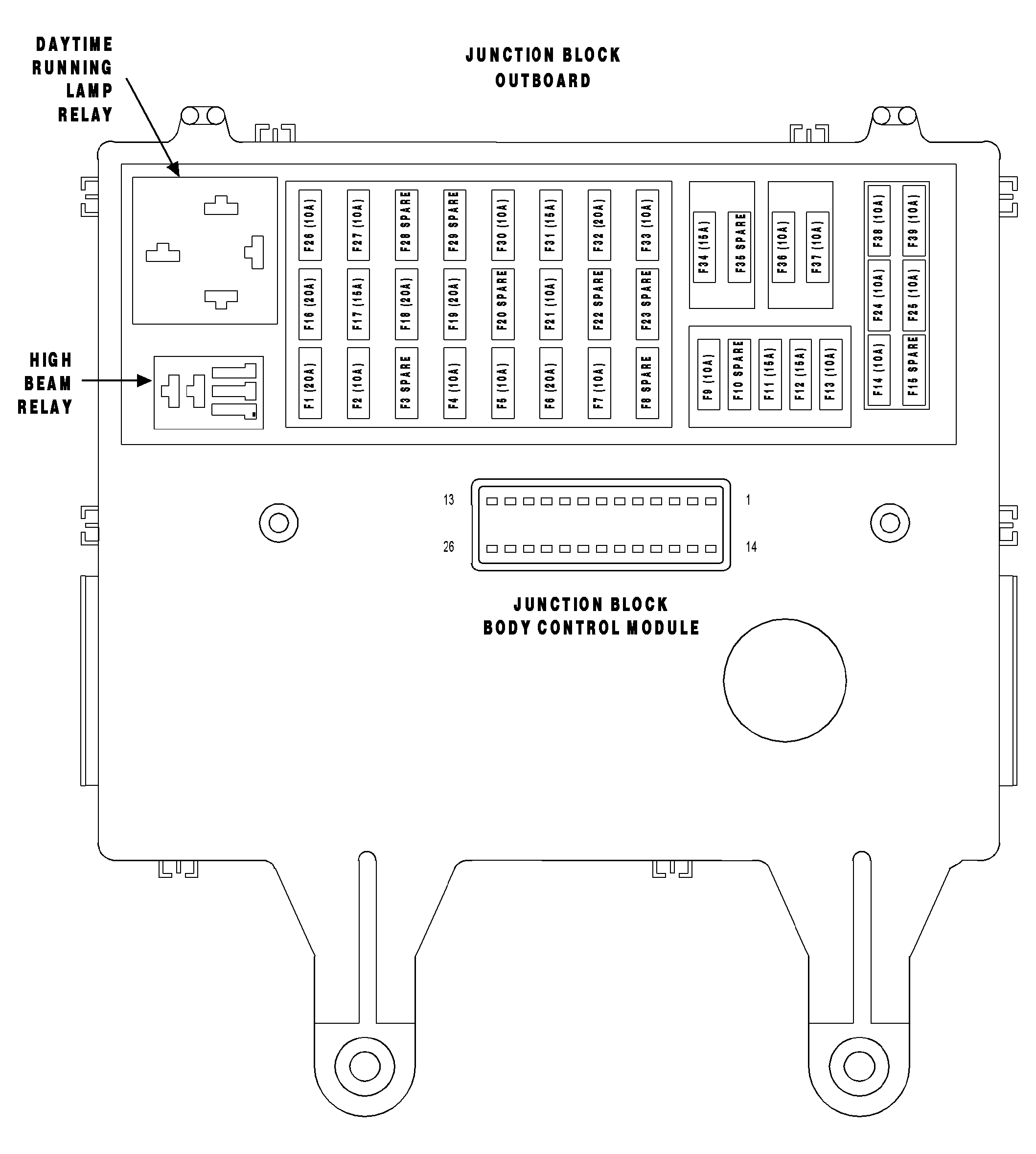

Fig 1: Junction Block

Courtesy of DAIMLERCHRYSLER CORP.

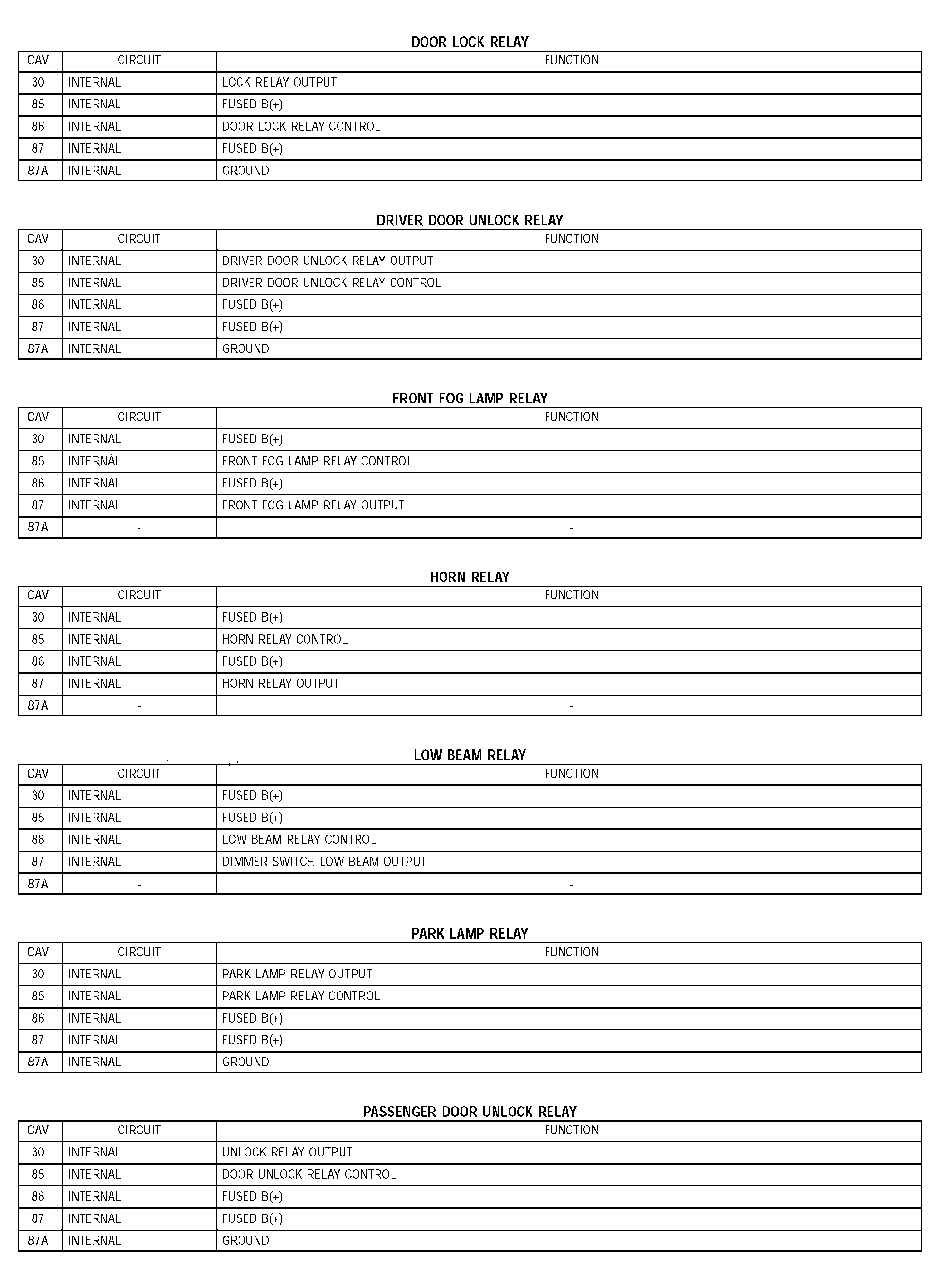

Fig 2: Junction Block Fuses & Relays (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

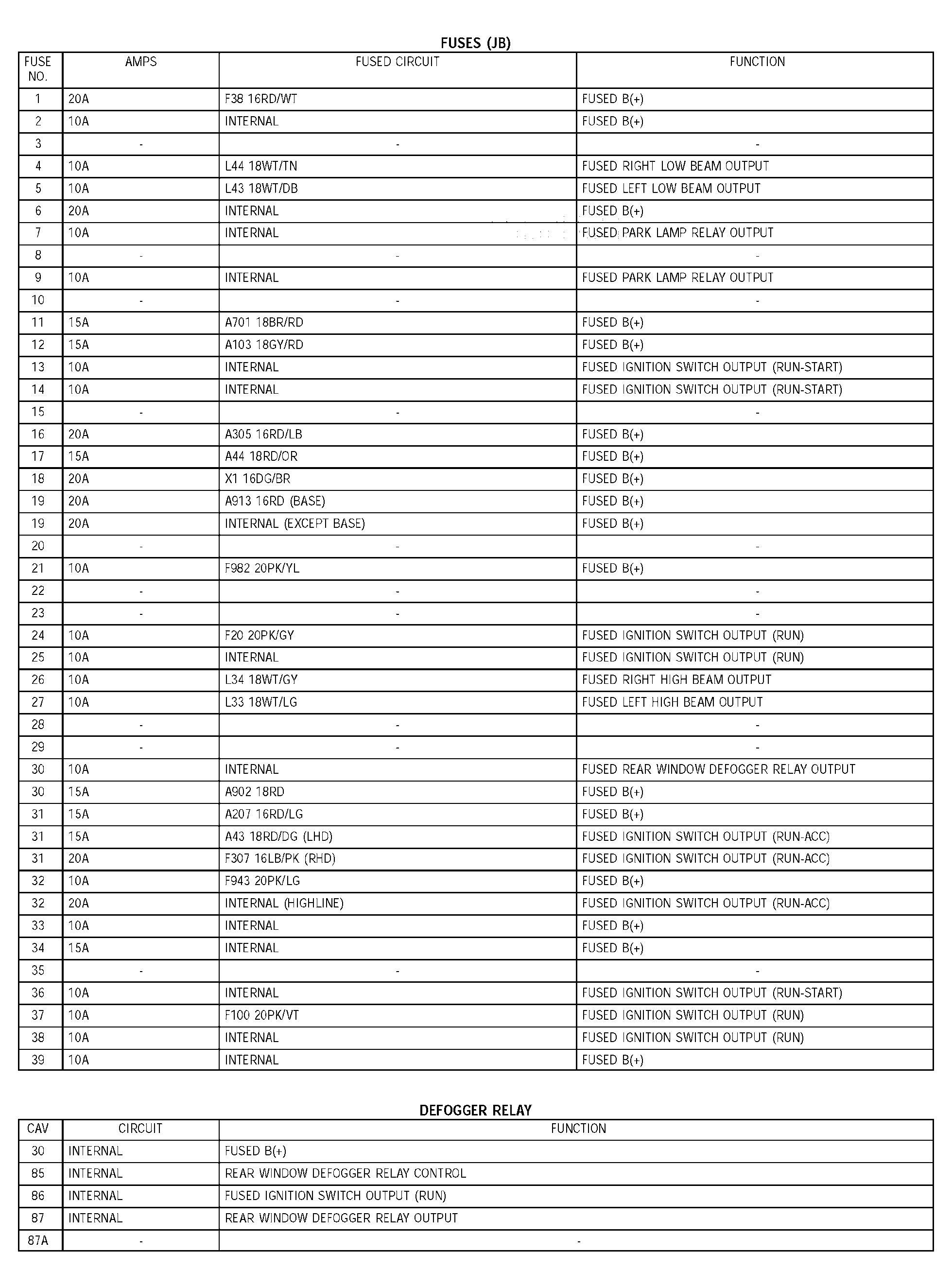

Fig 3: Junction Block Fuses & Relays (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
