Junction Block C1 - 26 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

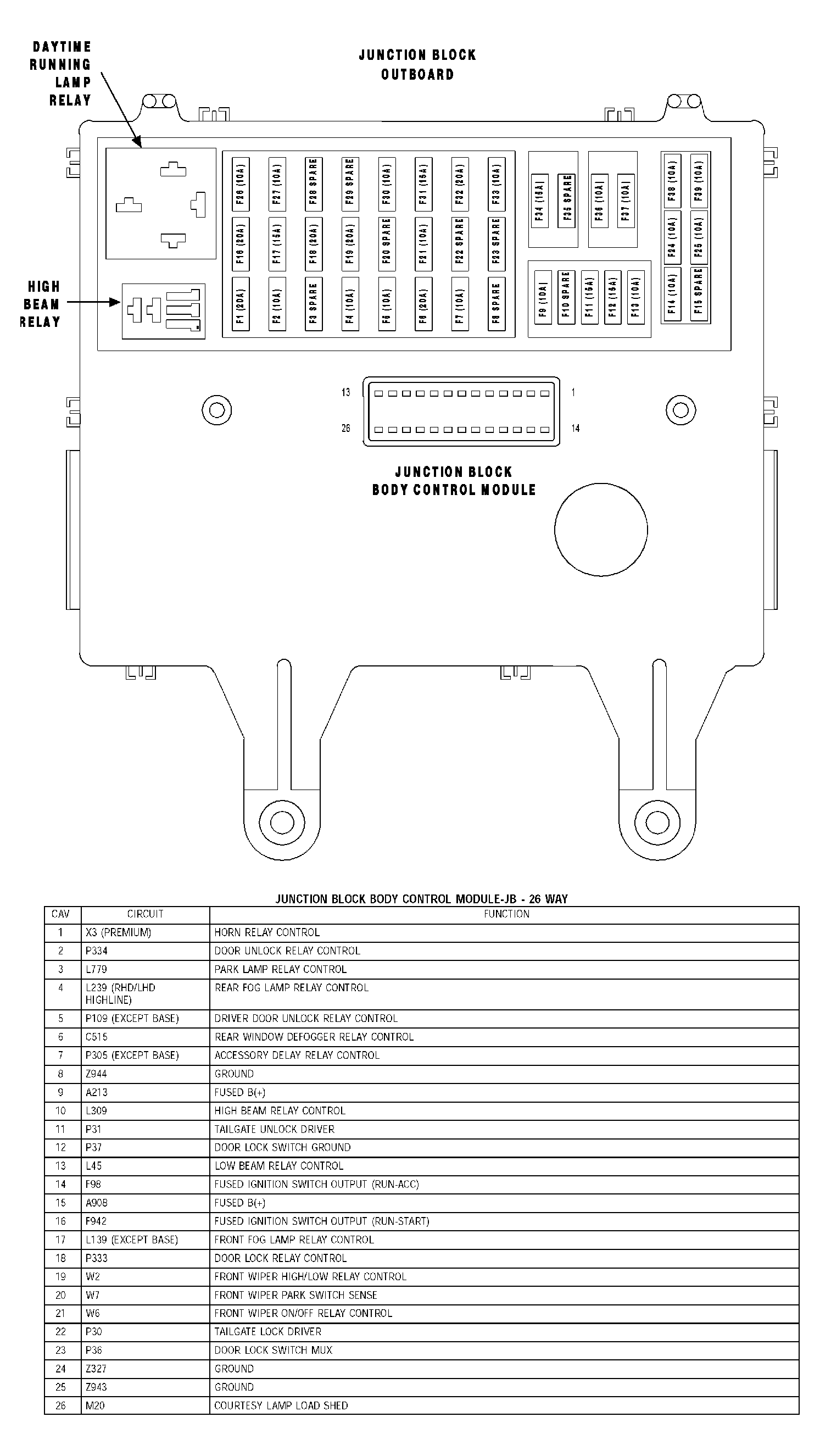

Fig 1: Junction Block/Body Control Module Connector Pinouts - 26 Way
G04550171Courtesy of DAIMLERCHRYSLER CORP.
