Intrusion Transceiver Module (Export) - Black 6 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

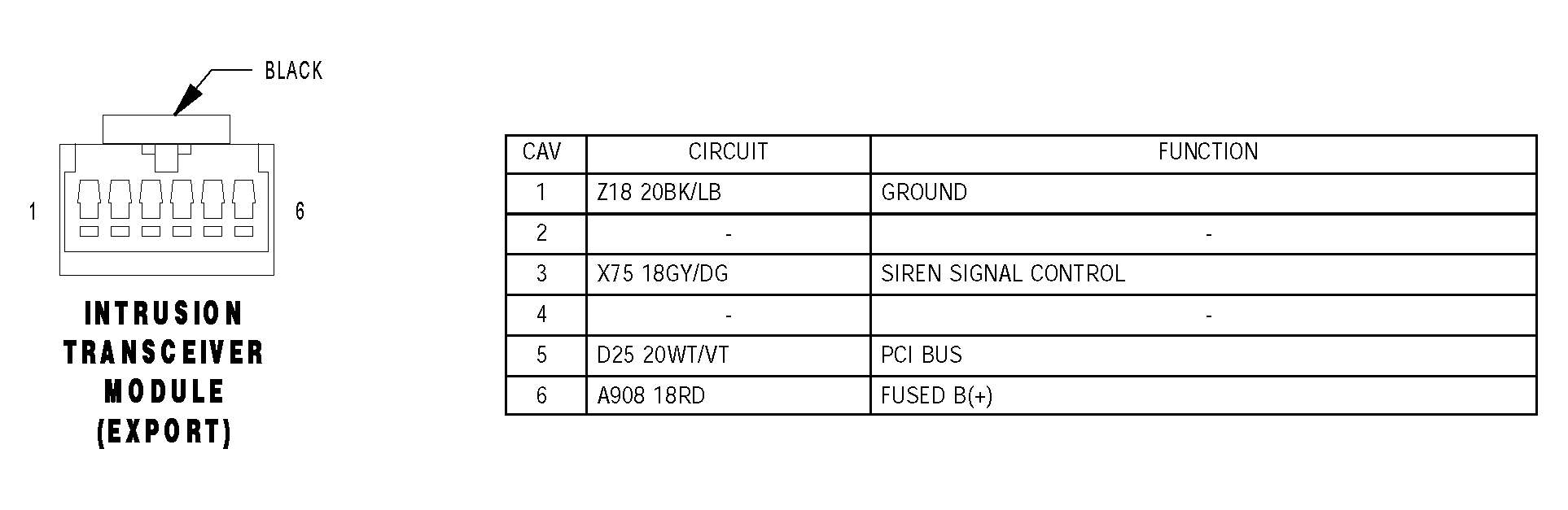

Fig 1: Intrusion Transceiver Module (Export) Connector Pinouts - Black 6 Way (1 Of 2)
G04550167Courtesy of DAIMLERCHRYSLER CORP.
