Hands Free Module C1 - 22 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

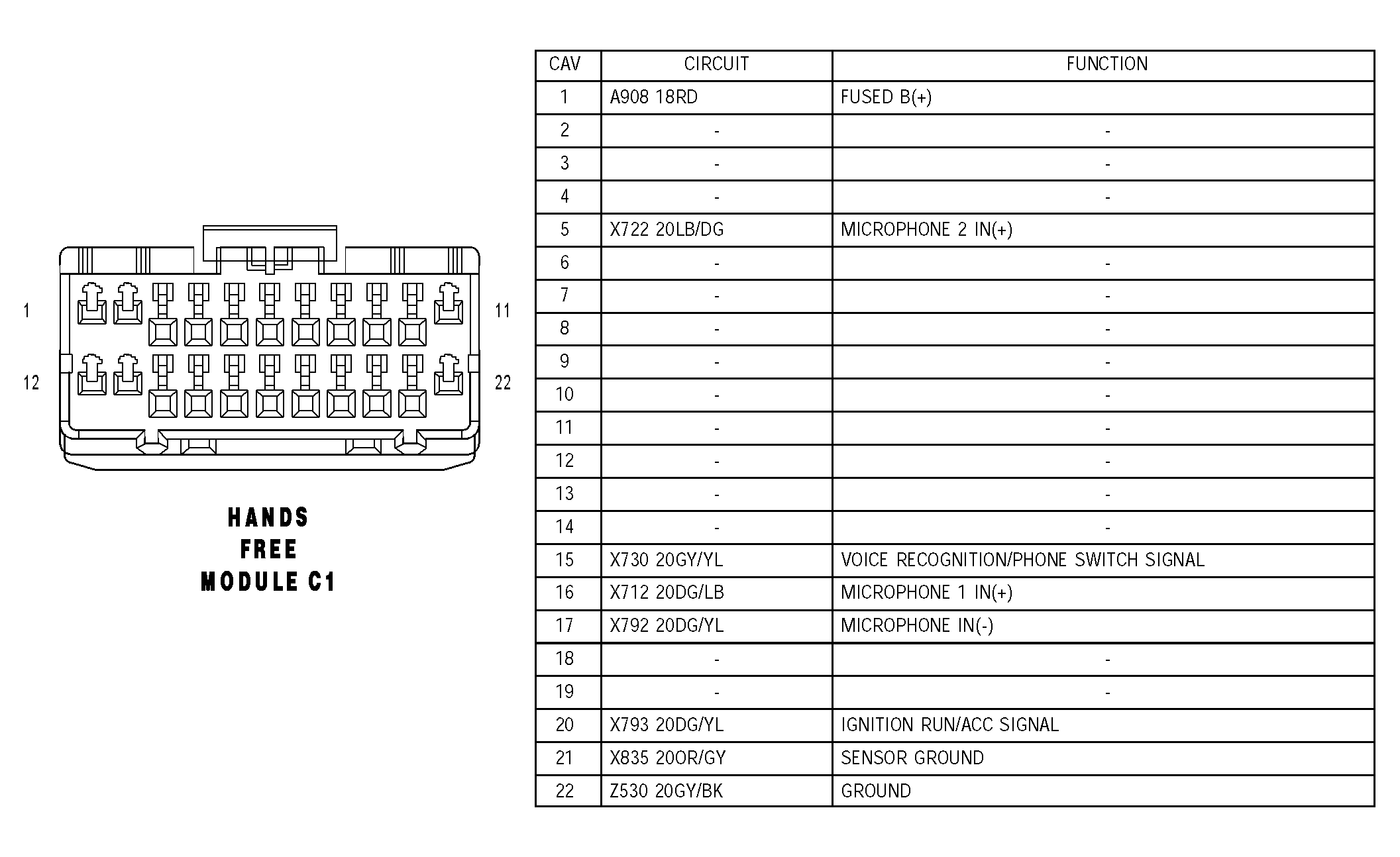

Fig 1: Hands Free Module C1 Connector Pinouts - 22 Way
G04550158Courtesy of DAIMLERCHRYSLER CORP.
