Data Link Connector - Black 16 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

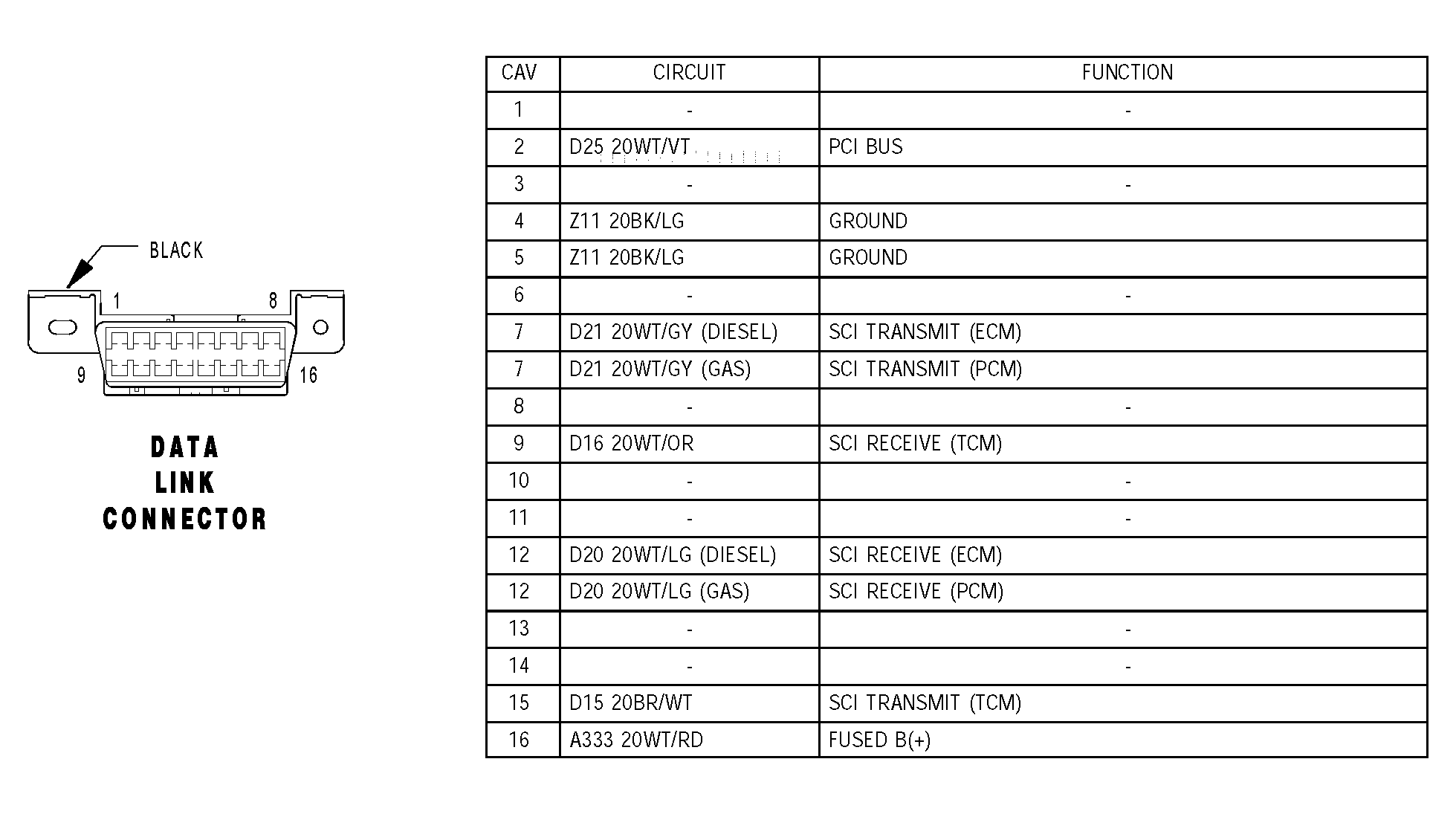

Fig 1: Data Link Connector Connector Pinouts - Black 16 Way
G04550150Courtesy of DAIMLERCHRYSLER CORP.
