C100 (RHD) - (I/P Side)

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

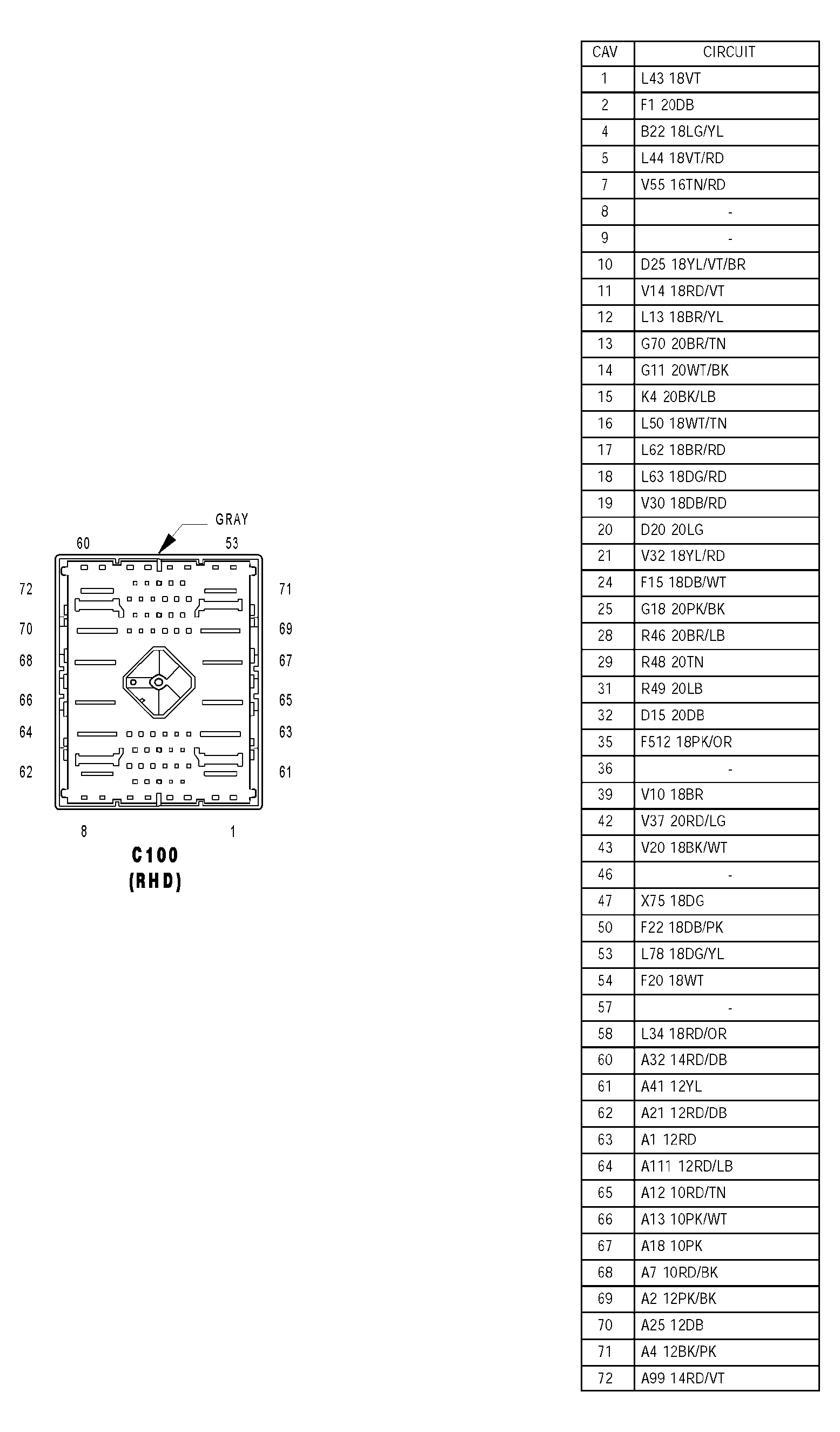

Fig 1: C100 (RHD) Connector Pinouts - (I/P Side)
G04550142Courtesy of DAIMLERCHRYSLER CORP.
