Airbag Control Module C2 (Orc) - 32 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

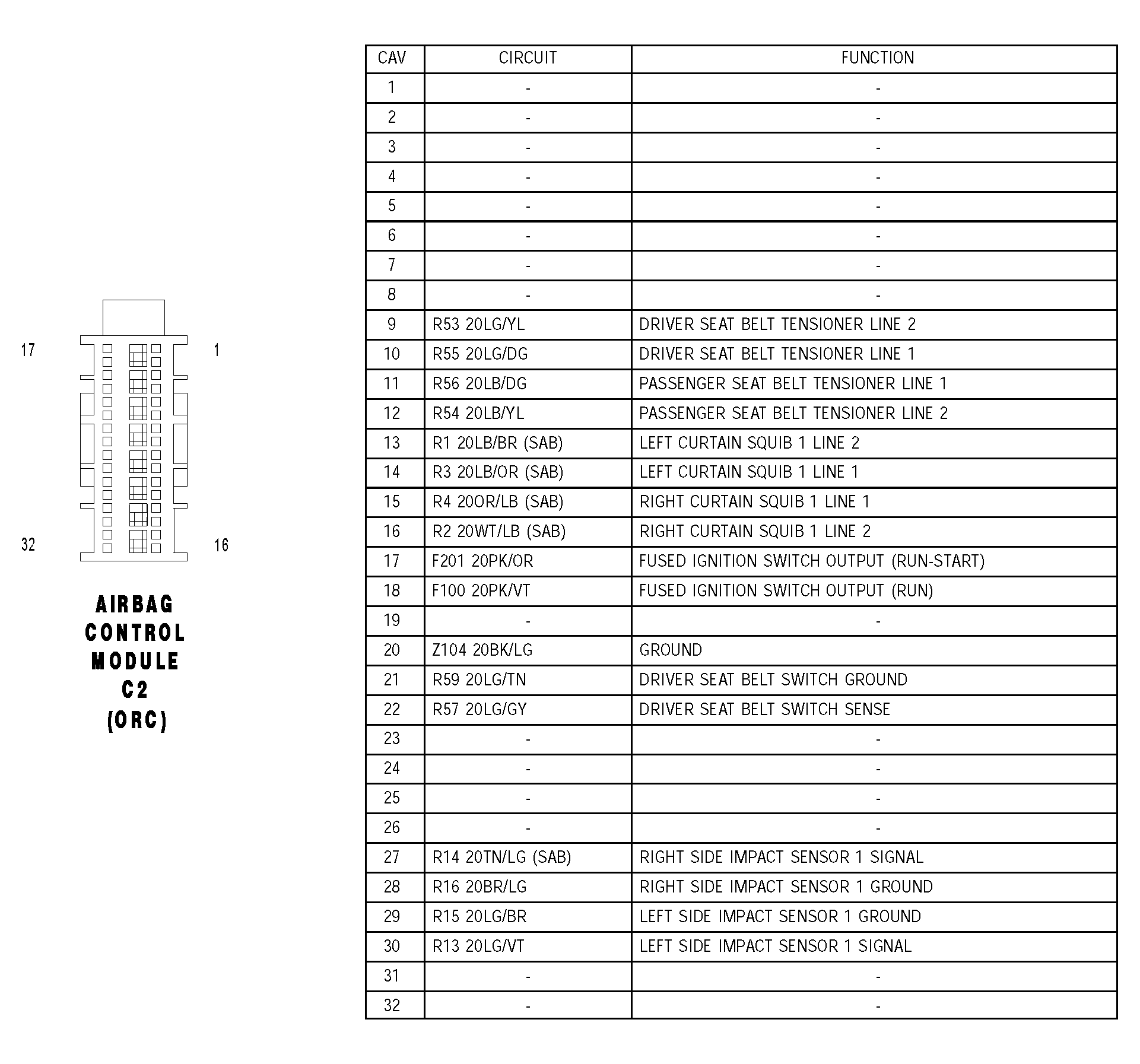

Fig 1: Airbag Control Module C2 (ORC) Connector Pinouts - 32 Way
G04550131Courtesy of DAIMLERCHRYSLER CORP.
