ECM Wiring Diagram - 2.8L Turbo Diesel

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

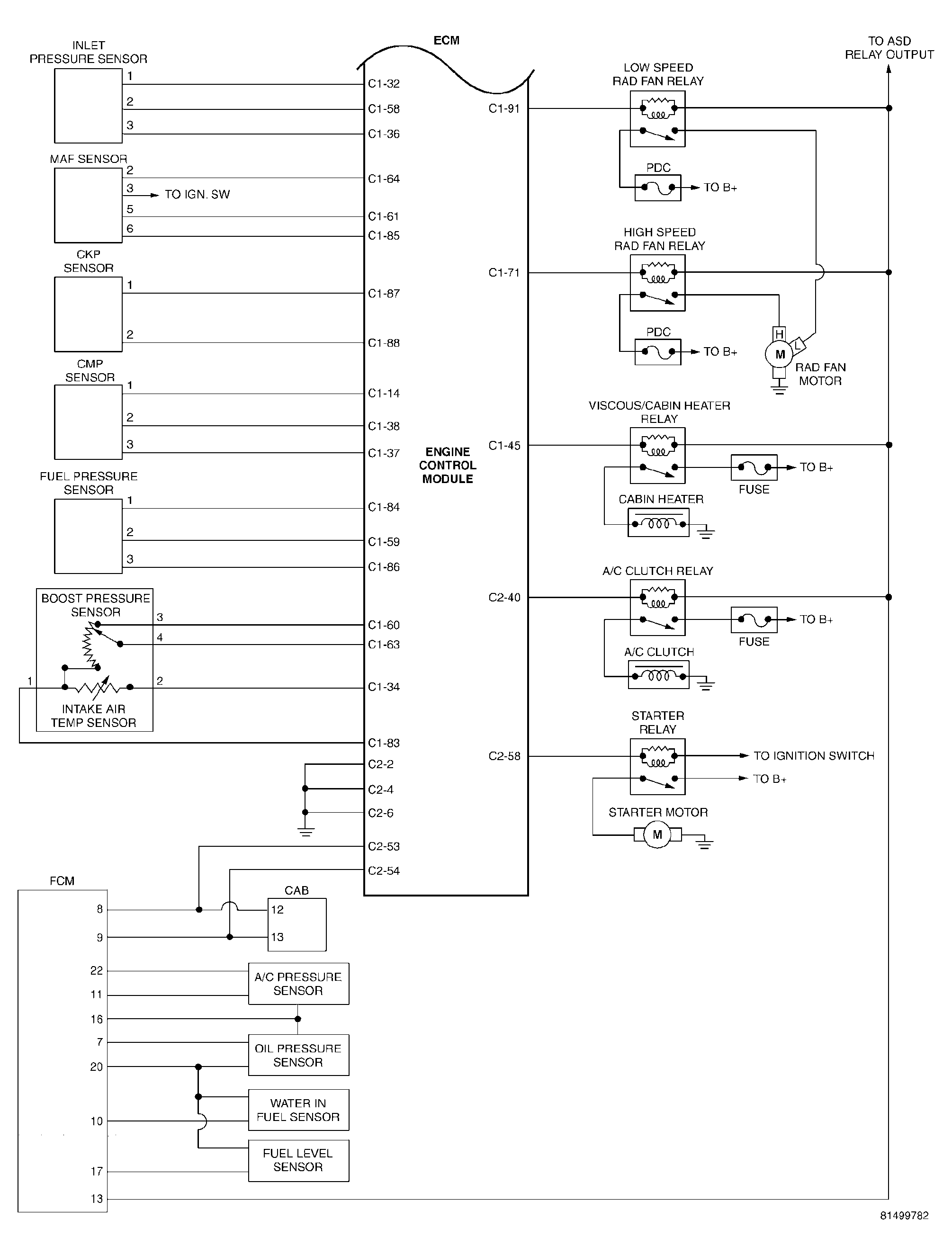

Fig 1: 2005 KJ 2.8L Turbo Diesel Diagrams (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

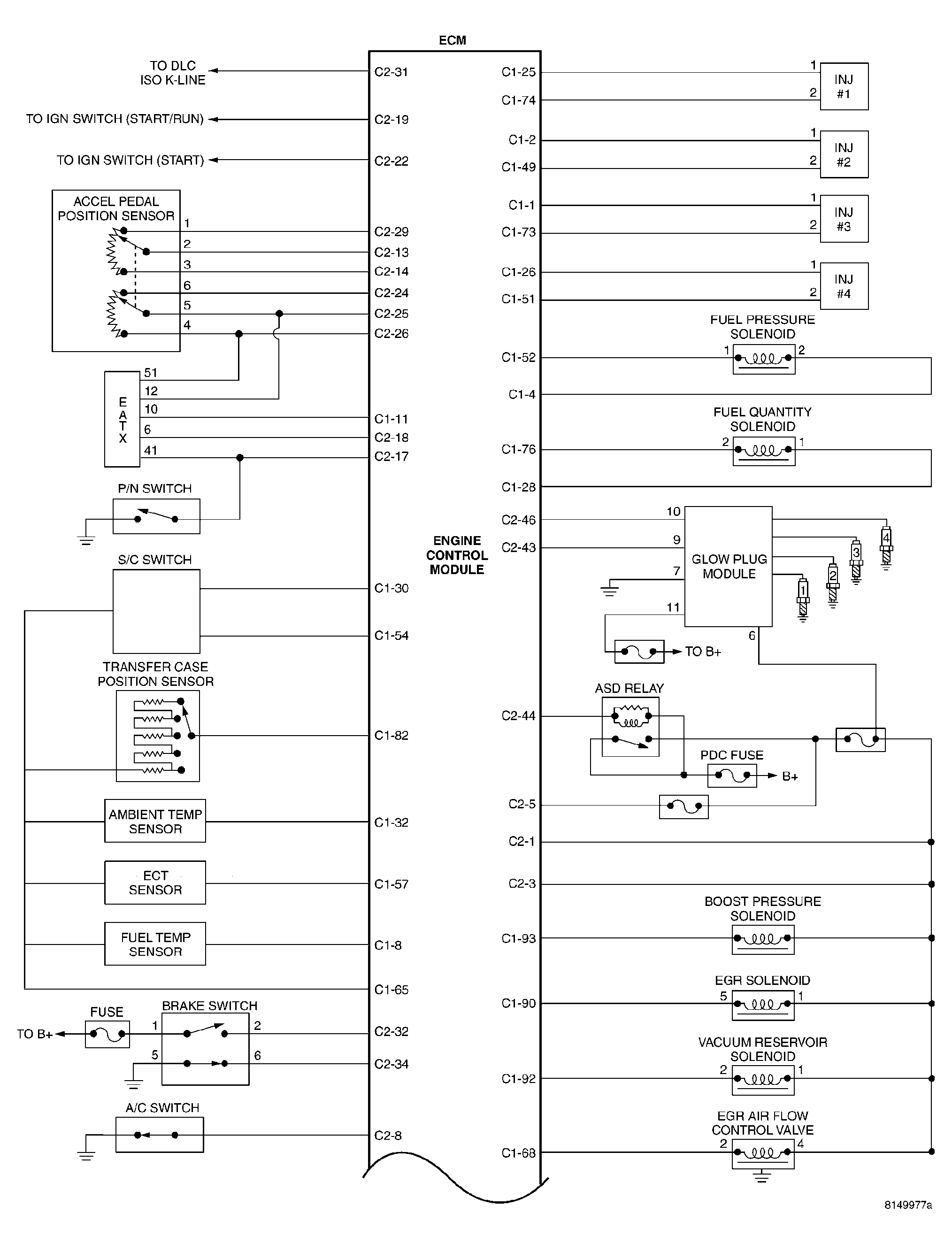

Fig 2: 2005 KJ 2.8L Turbo Diesel Diagrams (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
