Intake Air Temperature/Boost Pressure Sensor (Diesel) - 4 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

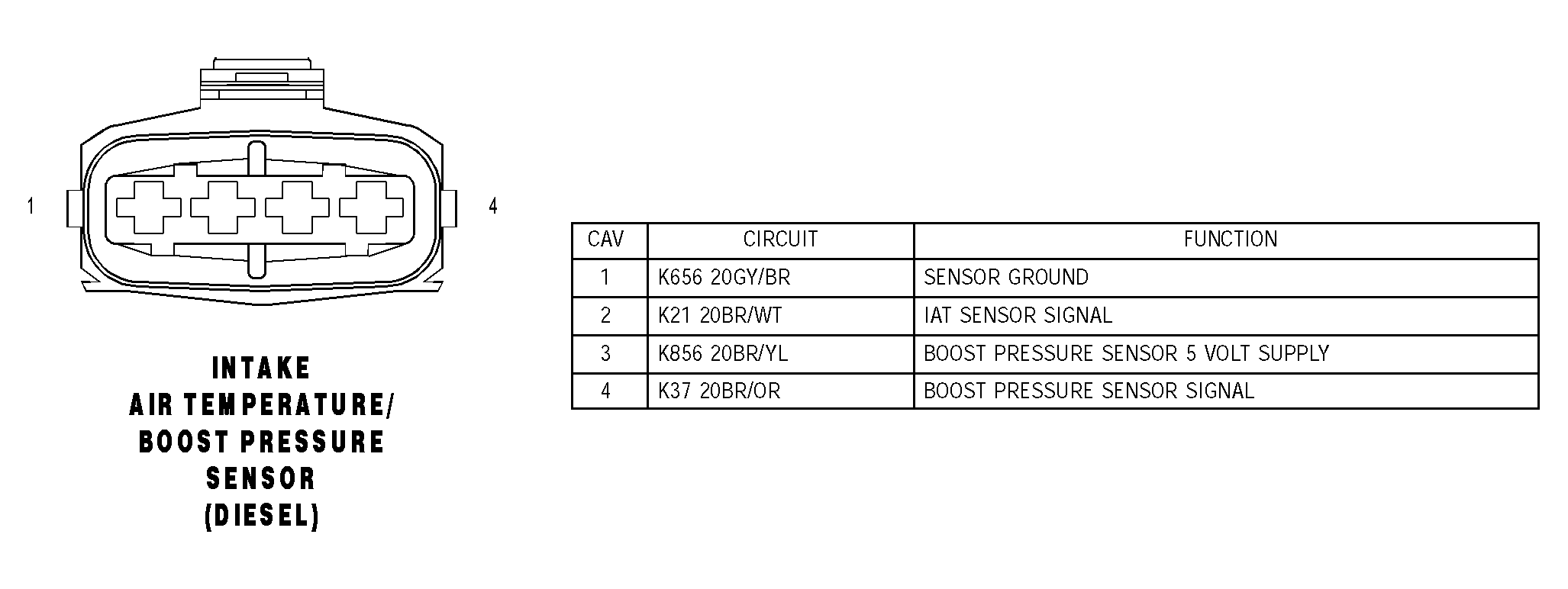

Fig 1: Intake Air Temperature/Boost Pressure Sensor Connector Pinouts (Diesel) - 4 Way
G04550082Courtesy of DAIMLERCHRYSLER CORP.
