Glow Plug Module (Diesel) - 11 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

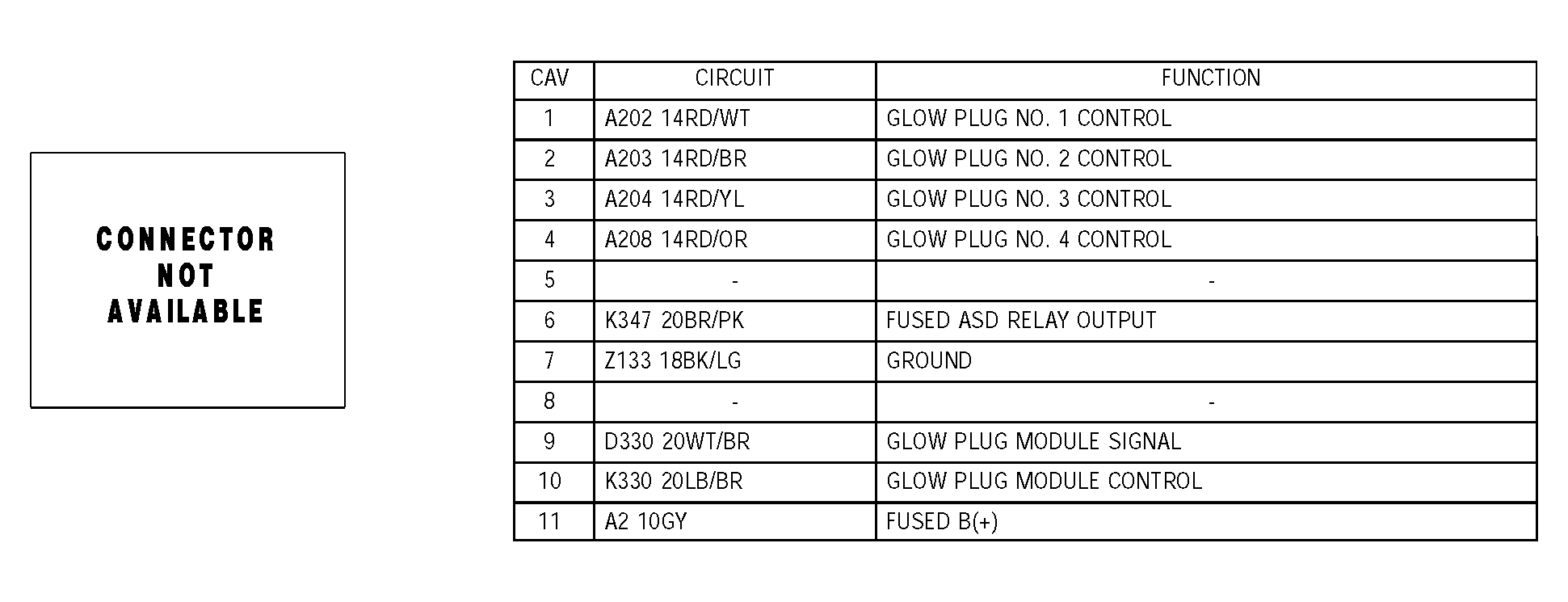

Fig 1: Glow Plug Module Connector Pinouts (Diesel) - 11 Way
G04550081Courtesy of DAIMLERCHRYSLER CORP.
