Fuel Pressure Sensor (Diesel) - Black 3 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

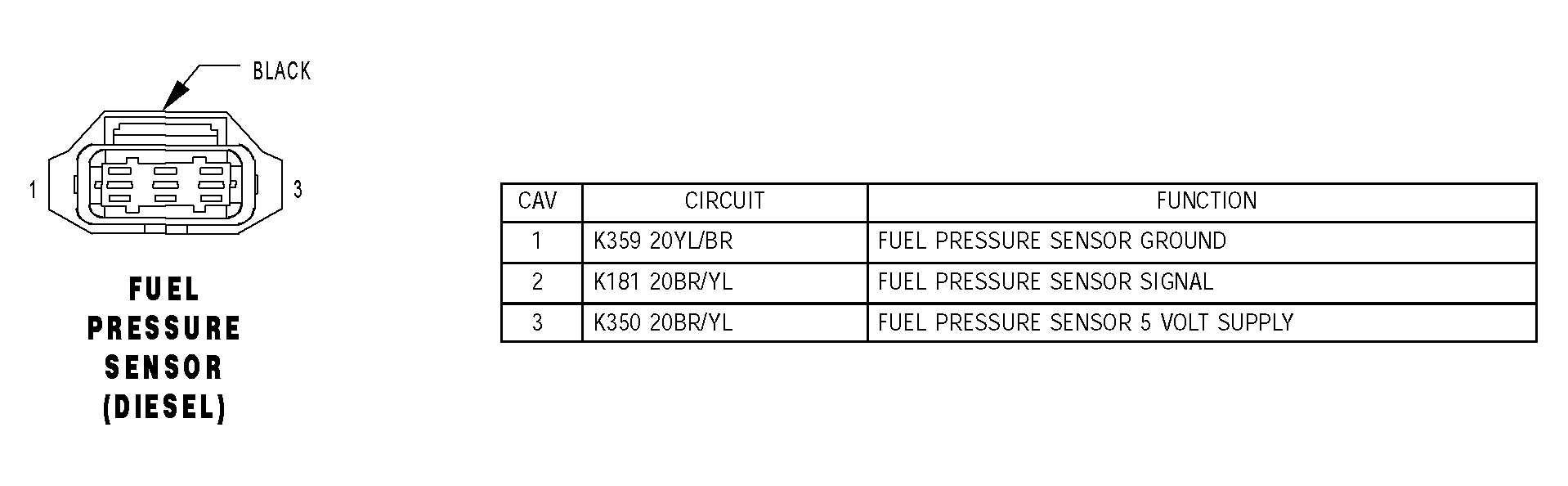

Fig 1: Fuel Pressure Sensor Connector Pinouts (Diesel) - Black 3 Way
G04550076Courtesy of DAIMLERCHRYSLER CORP.
