Engine Control Module C2 (Diesel) - 58 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

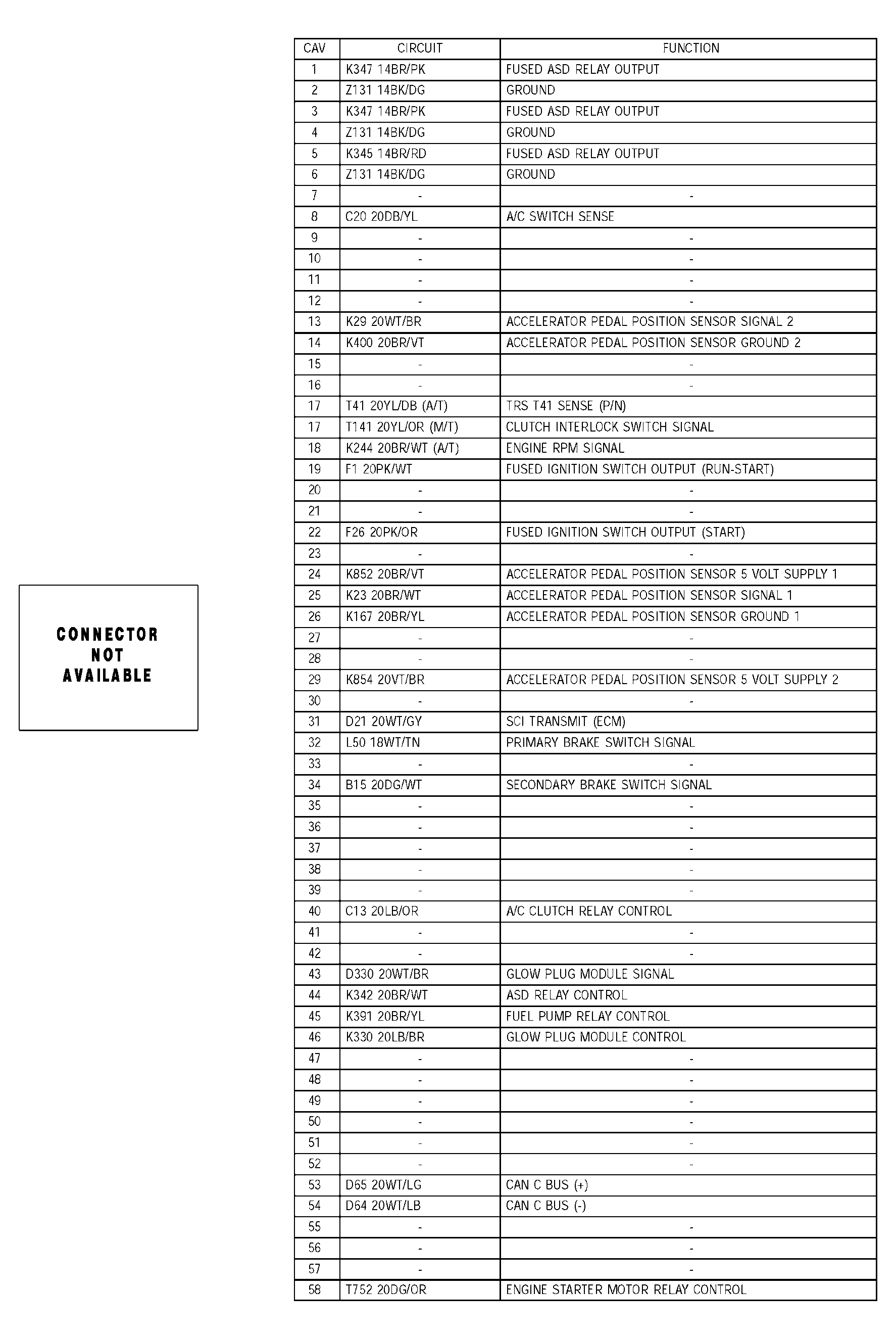

Fig 1: Engine Control Module C2 Connector Pinouts (Diesel) - 58 Way
G04550069Courtesy of DAIMLERCHRYSLER CORP.
