Engine Control Module C1 (Diesel) - 96 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

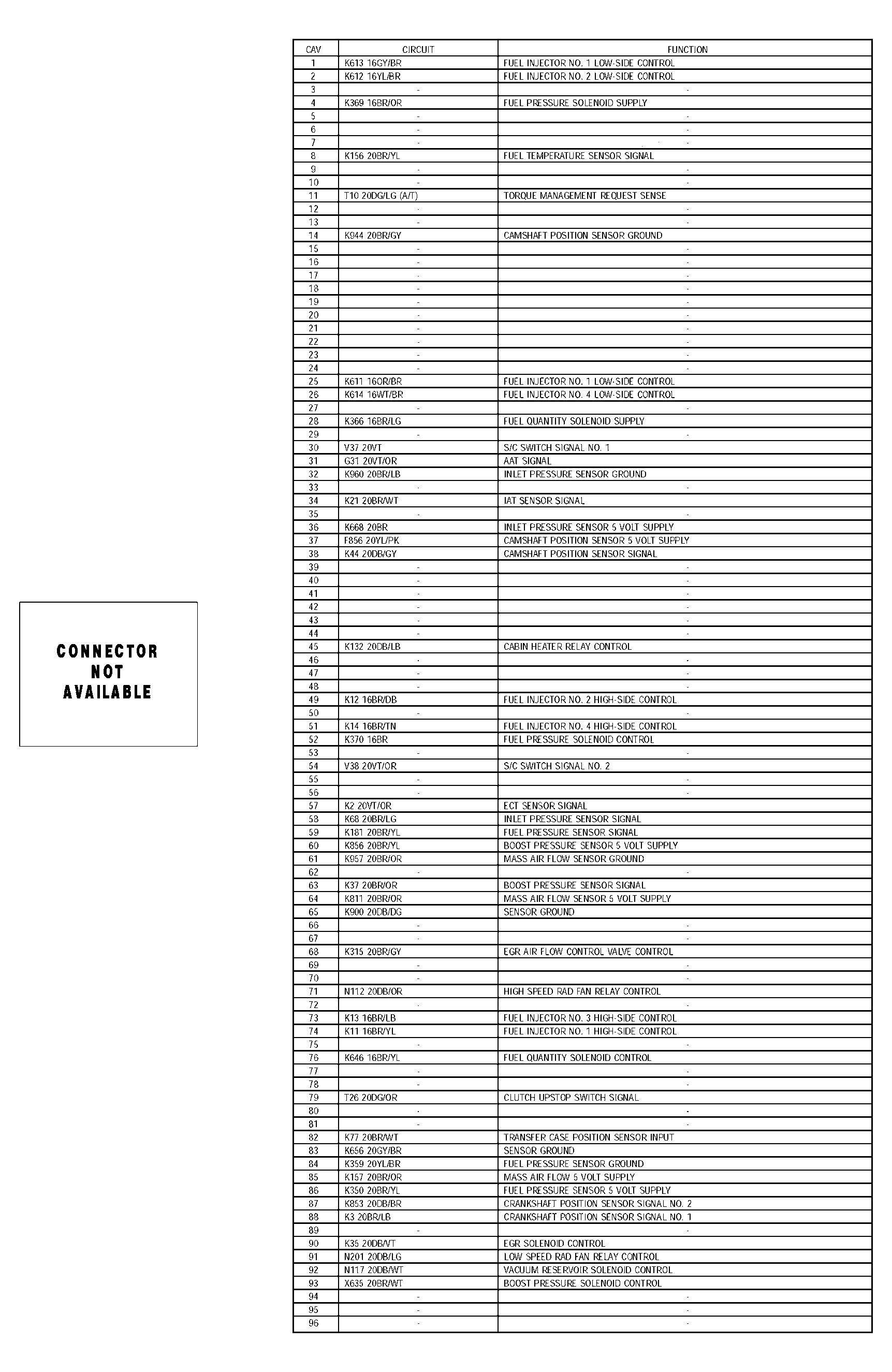

Fig 1: Engine Control Module C1 Connector Pinouts (Diesel) - 96 Way
G04550068Courtesy of DAIMLERCHRYSLER CORP.
