Clutch Interlock/UPSTOP Switch (M/T) - 4 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

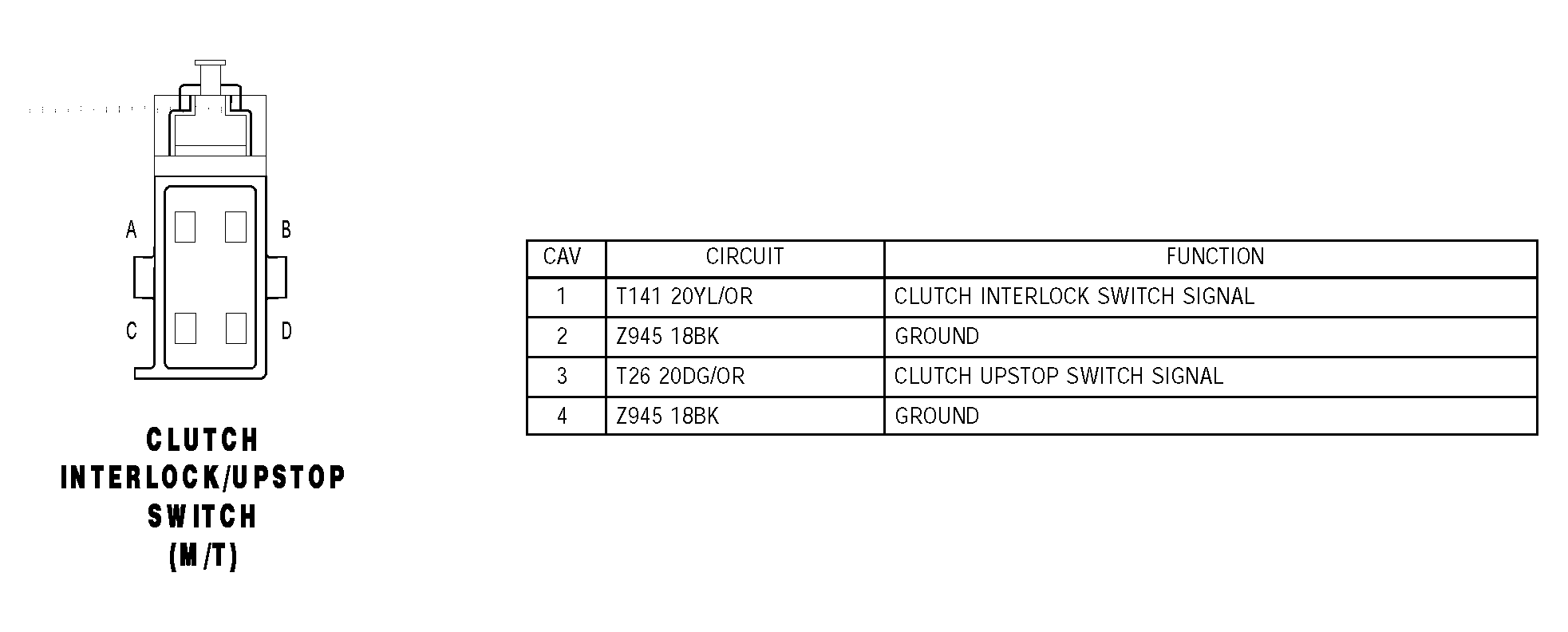

Fig 1: Clutch Interlock/Upstop Switch Connector Pinouts (M/T) - 4 Way
G04550063Courtesy of DAIMLERCHRYSLER CORP.
