Anti-Lock Brake Module - 47 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

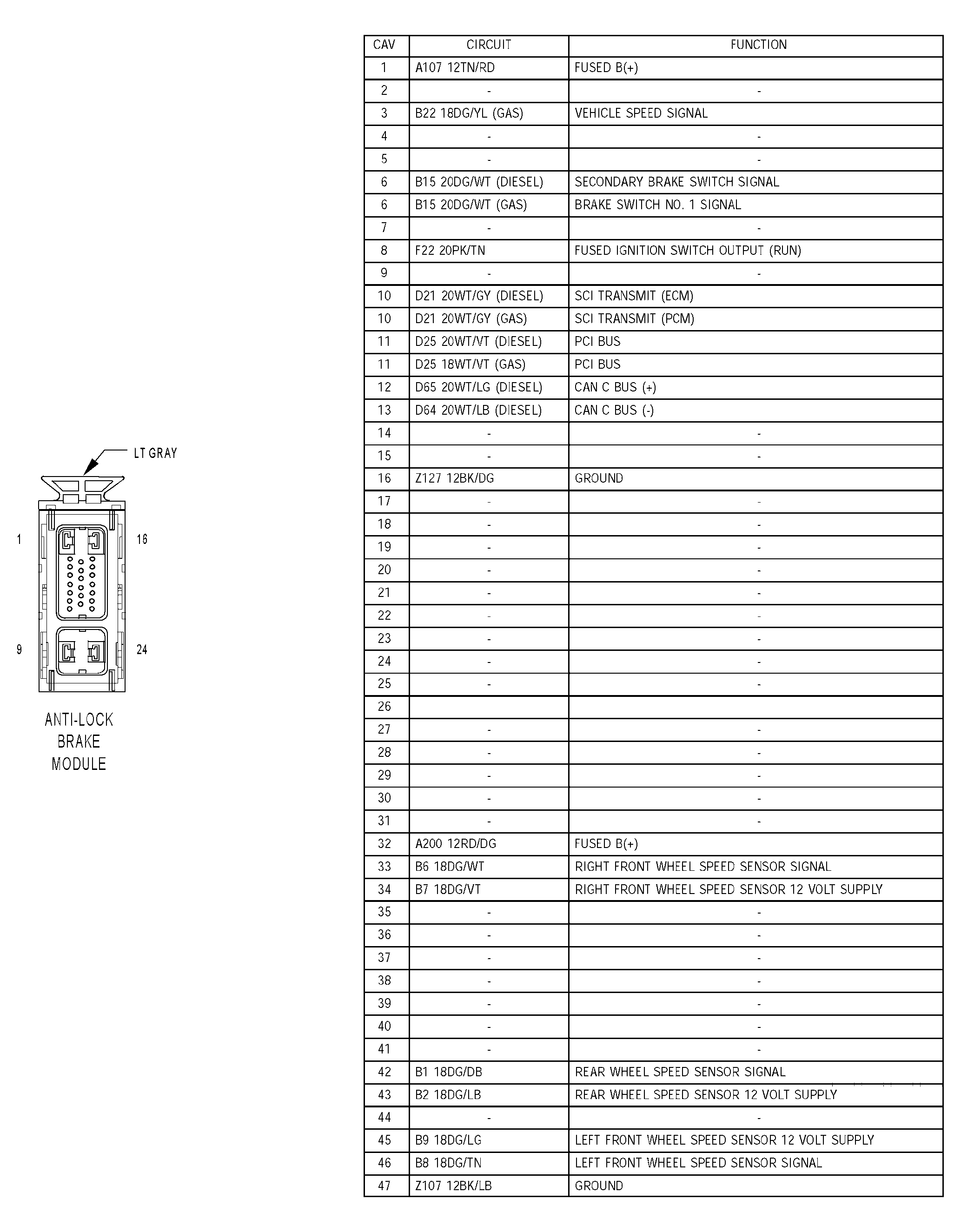

Fig 1: Anti-Lock Brake Module Connector Pinouts - 47 Way

Courtesy of DAIMLERCHRYSLER CORP.
