Pcm Wiring Diagram (2.4L NGC)

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

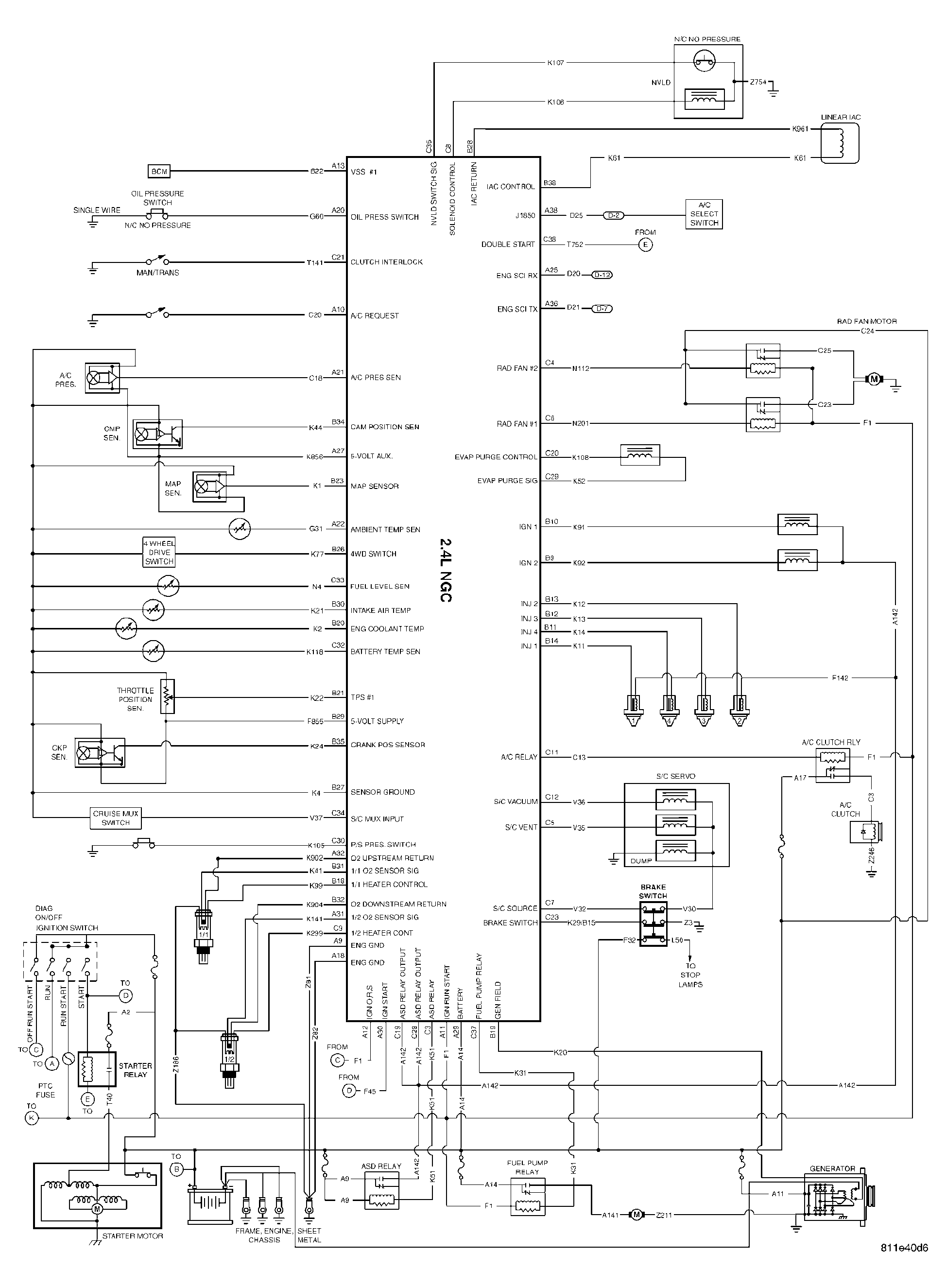

Fig 1: Schematic Diagram - 2.4L NGC
G04550013Courtesy of DAIMLERCHRYSLER CORP.
