Transmission Control Module (2.8L) - Black 60 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

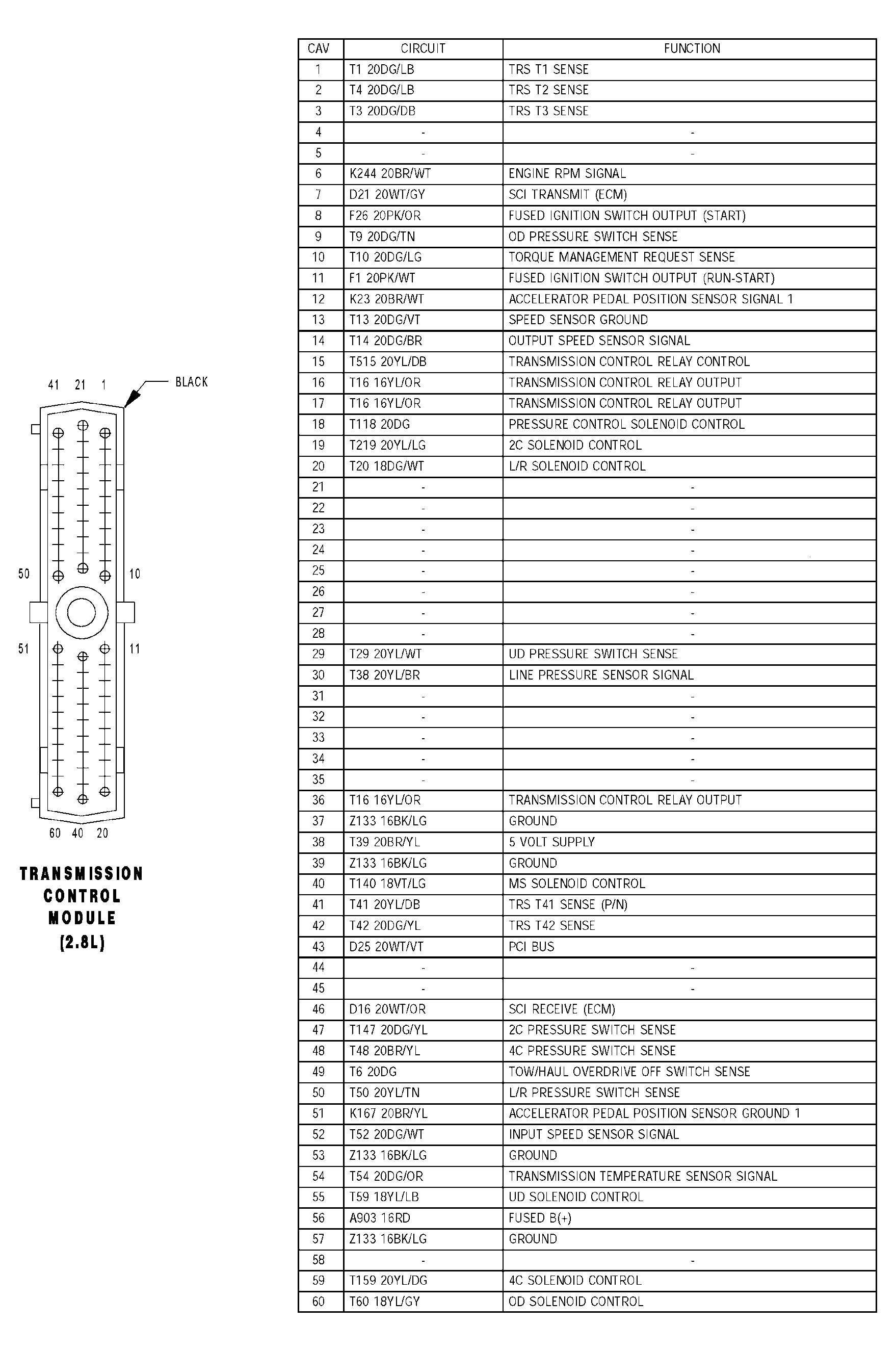

Fig 1: Identifying Transmission Control Module (2.8L) - Black 60 Way Pinouts
G04550010Courtesy of DAIMLERCHRYSLER CORP.
