Section 488 (Powertrain Diagnostic Procedures - Gas)
>>
Connector PINOUTS
>>
Trailer Tow Left Turn Relay
Trailer Tow Left Turn Relay
WARNING:
This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

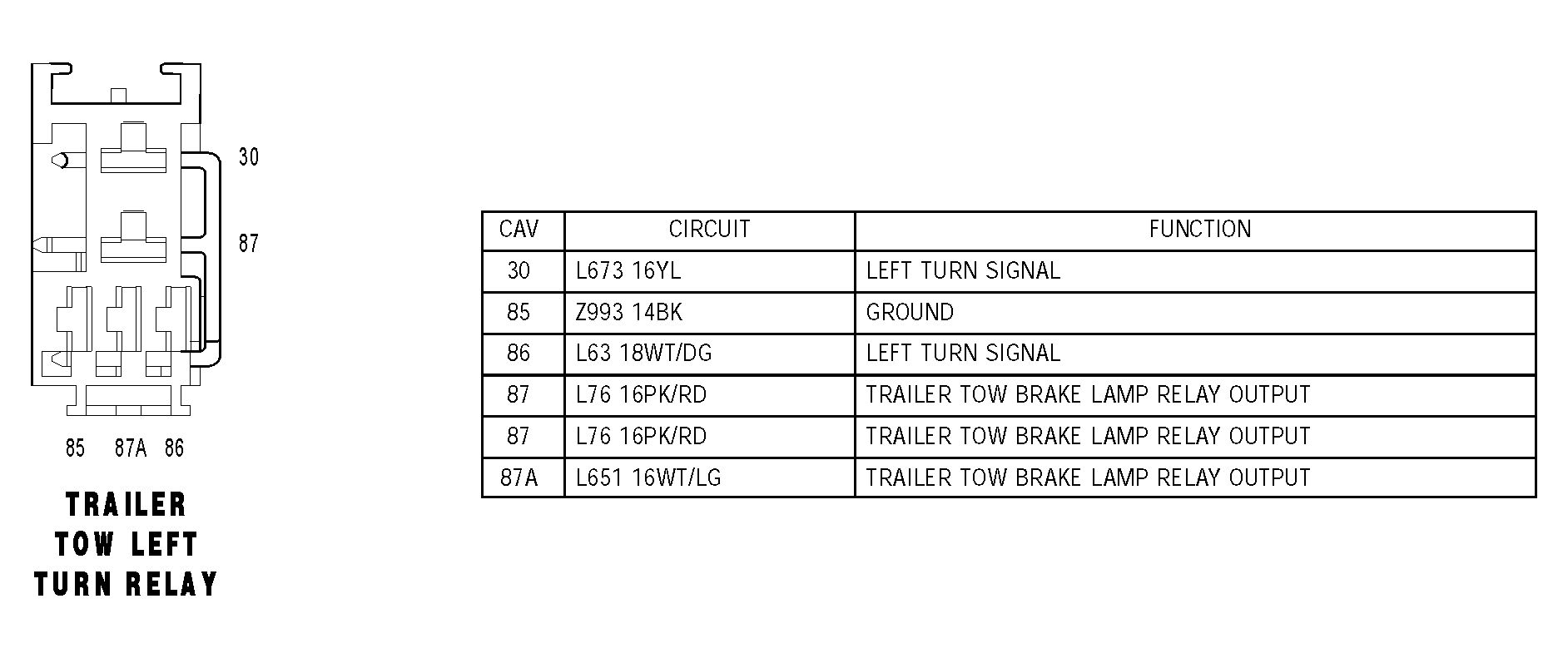

Fig 1: Identifying Trailer Tow Left Turn Relay
Courtesy of DAIMLERCHRYSLER CORP.
