Trailer Tow Brake Lamp Relay - 5 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

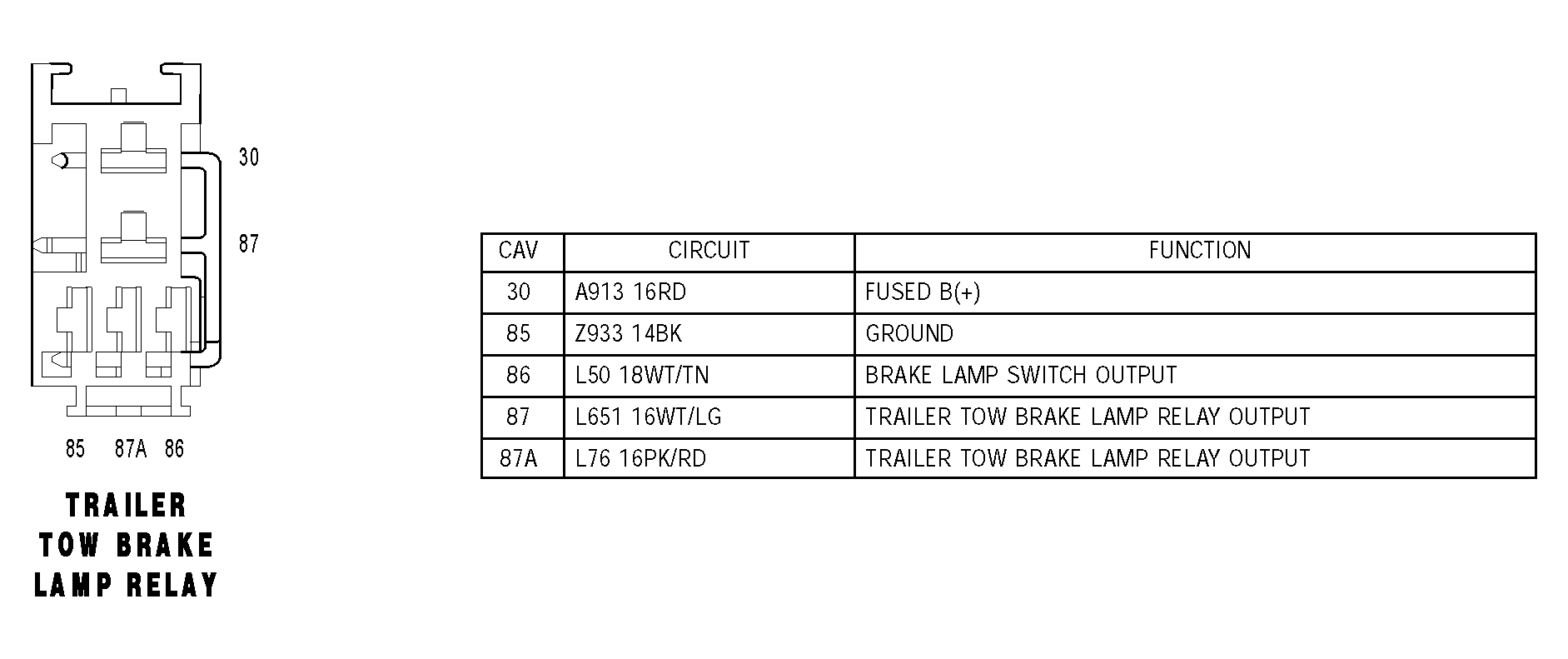

Fig 1: Identifying Trailer Tow Brake Lamp Relay - 5 Way Pinouts
G04550004Courtesy of DAIMLERCHRYSLER CORP.
