Speed Control Servo - Black 4 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

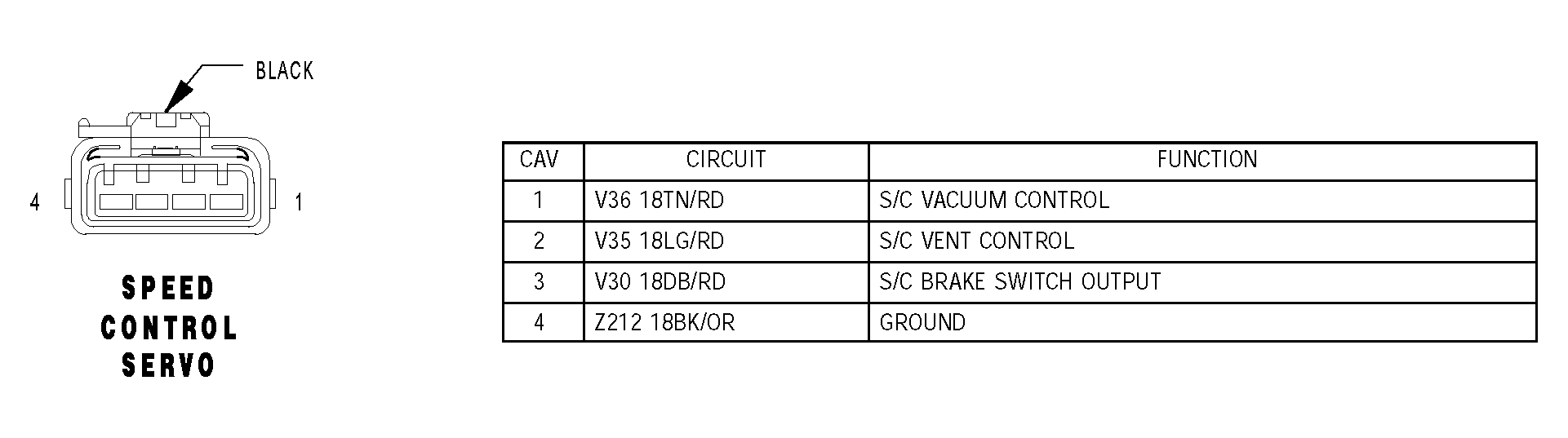

Fig 1: Identifying Speed Control Servo - Black 4 Way Pinouts
G04550002Courtesy of DAIMLERCHRYSLER CORP.
