Power Distribution Center

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

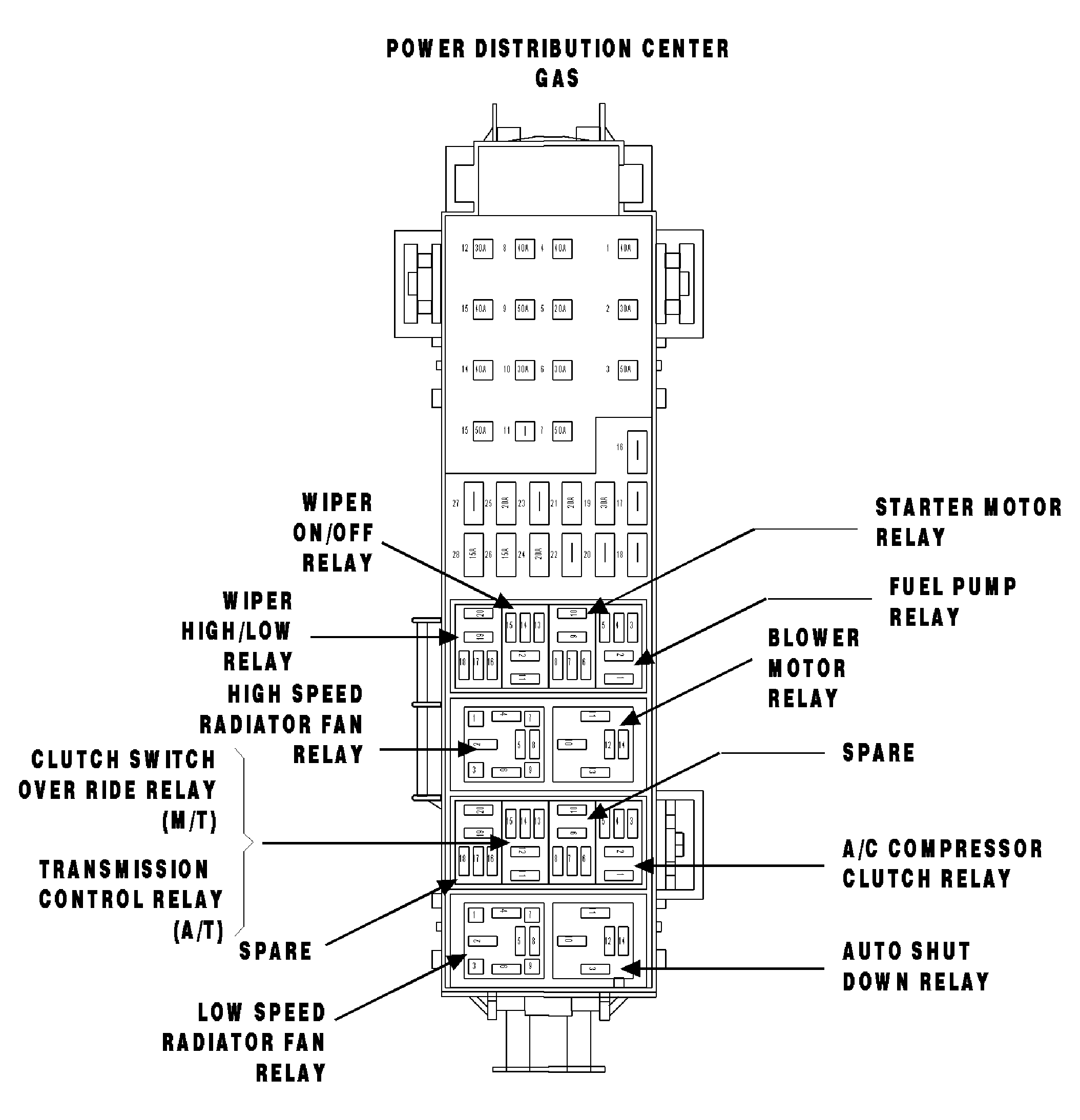

Fig 1: Identifying Relays

Courtesy of DAIMLERCHRYSLER CORP.

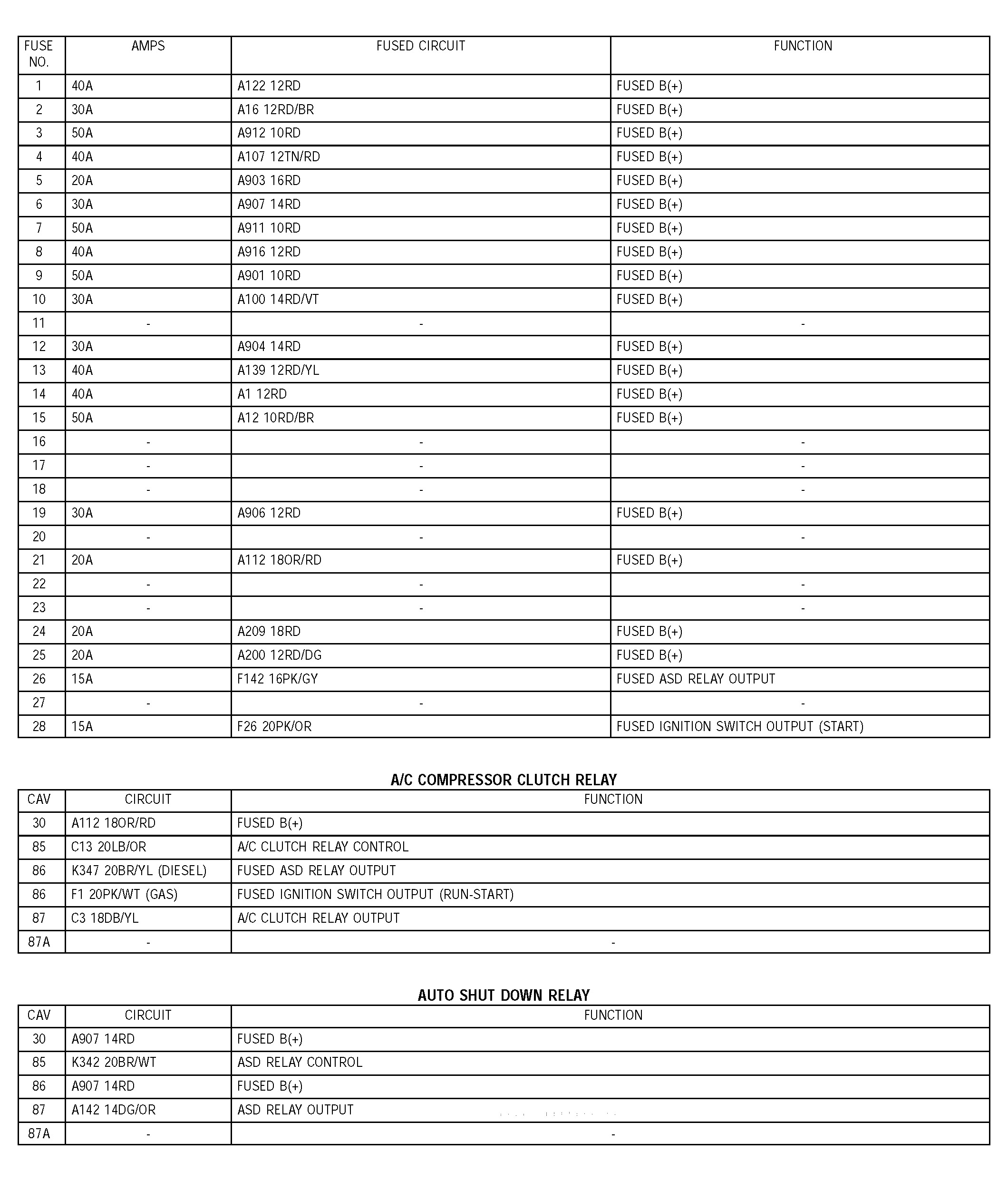

Fig 2: Fuses & Relays Reference Table

Courtesy of DAIMLERCHRYSLER CORP.

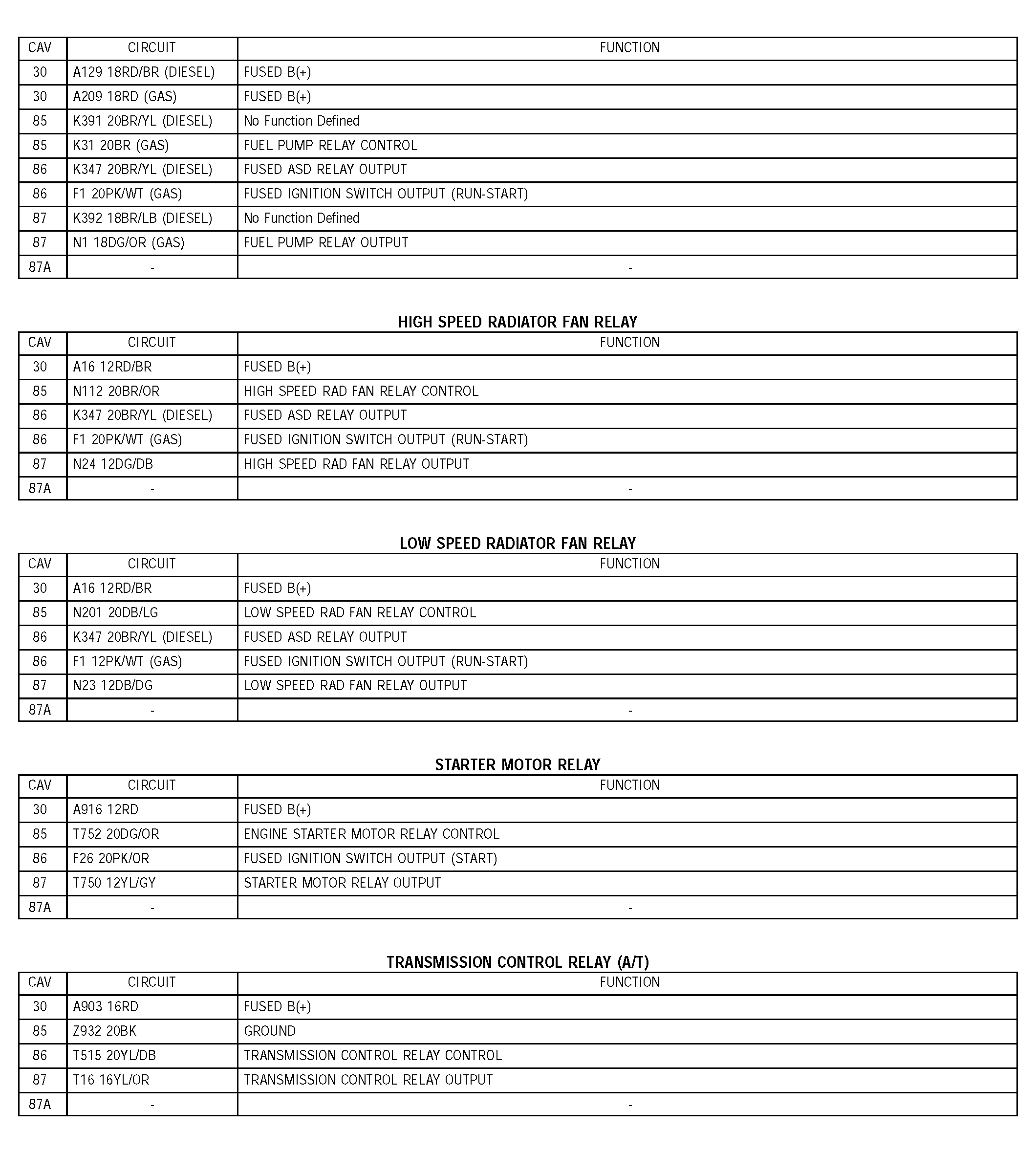

Fig 3: Relays Reference Table

Courtesy of DAIMLERCHRYSLER CORP.
