Oxygen Sensor 1/1 Upstream (2.4L) - 4 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

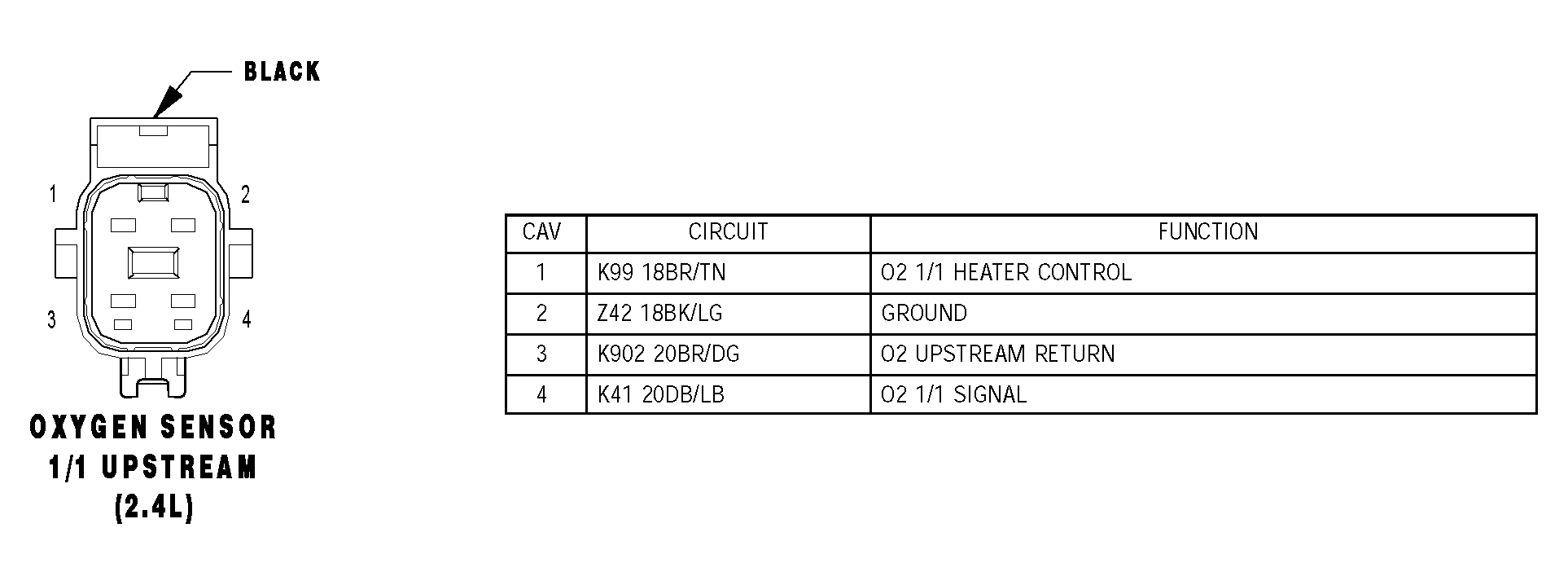

Fig 1: Identifying Oxygen Sensor 1/1 Upstream (2.4L) - 4 Way Pinouts
G04549987Courtesy of DAIMLERCHRYSLER CORP.
