Junction Block

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

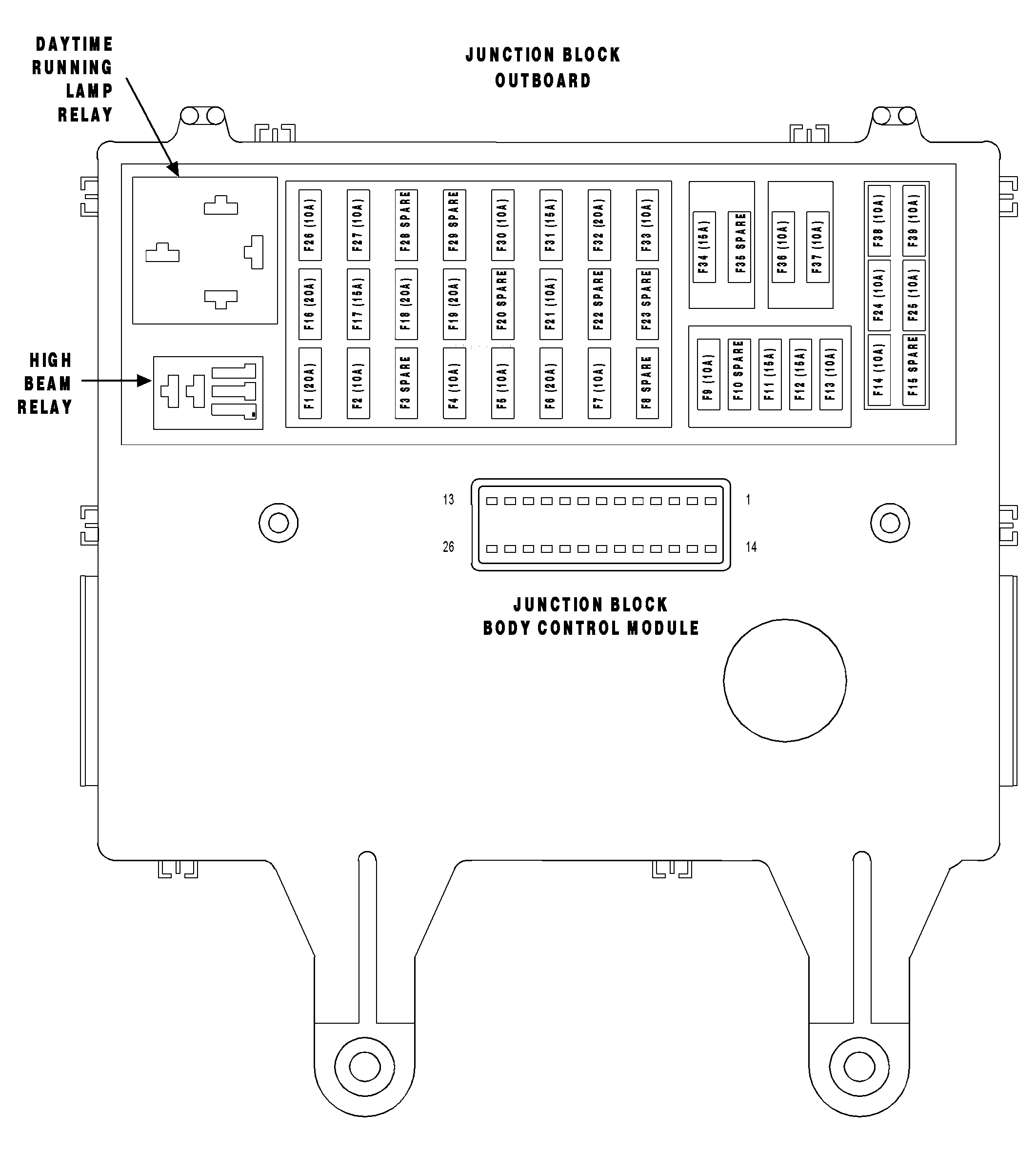

Fig 1: View Of Junction Block Outboard
G04549980Courtesy of DAIMLERCHRYSLER CORP.

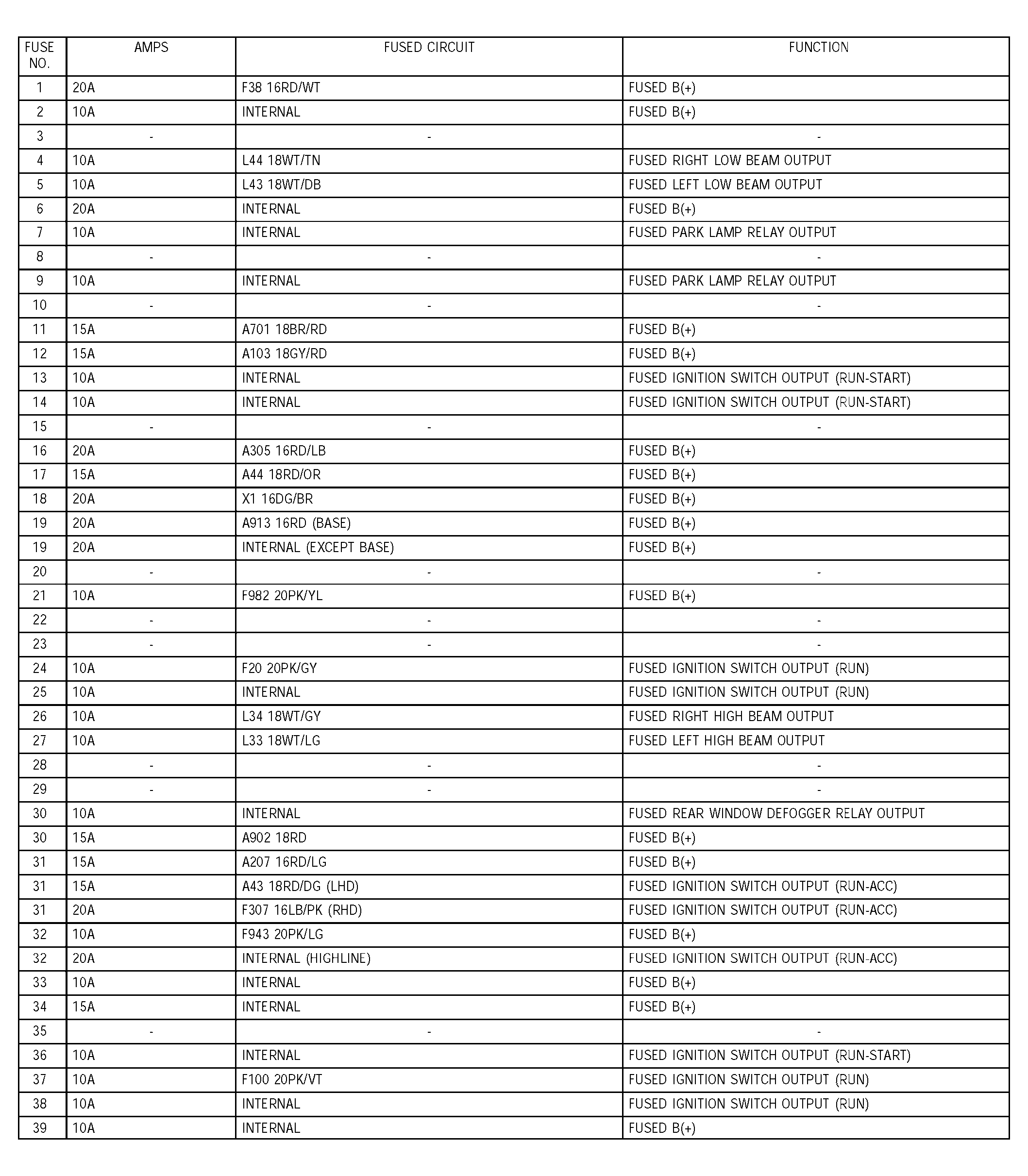

Fig 2: Fuses (JB) Reference Table
G04549981Courtesy of DAIMLERCHRYSLER CORP.
