CLOCKSPRING C3 - 6 Way

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

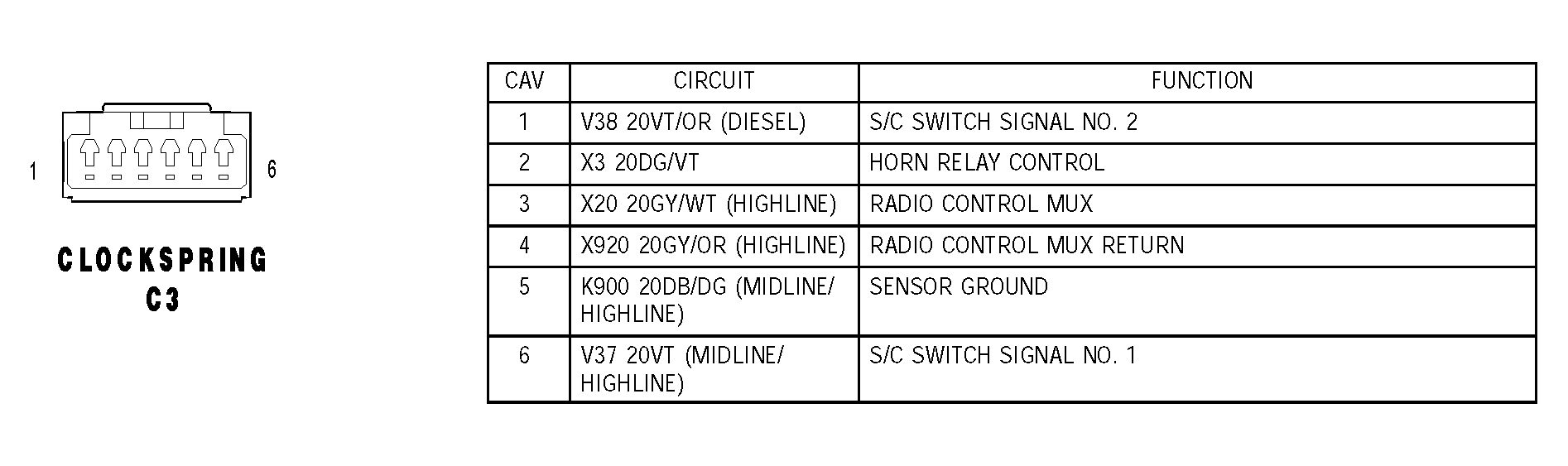

Fig 1: Identifying Clockspring C3 - 6 Way Pinouts
G04549954Courtesy of DAIMLERCHRYSLER CORP.
