O2 Sensor Locations (3.7L)

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

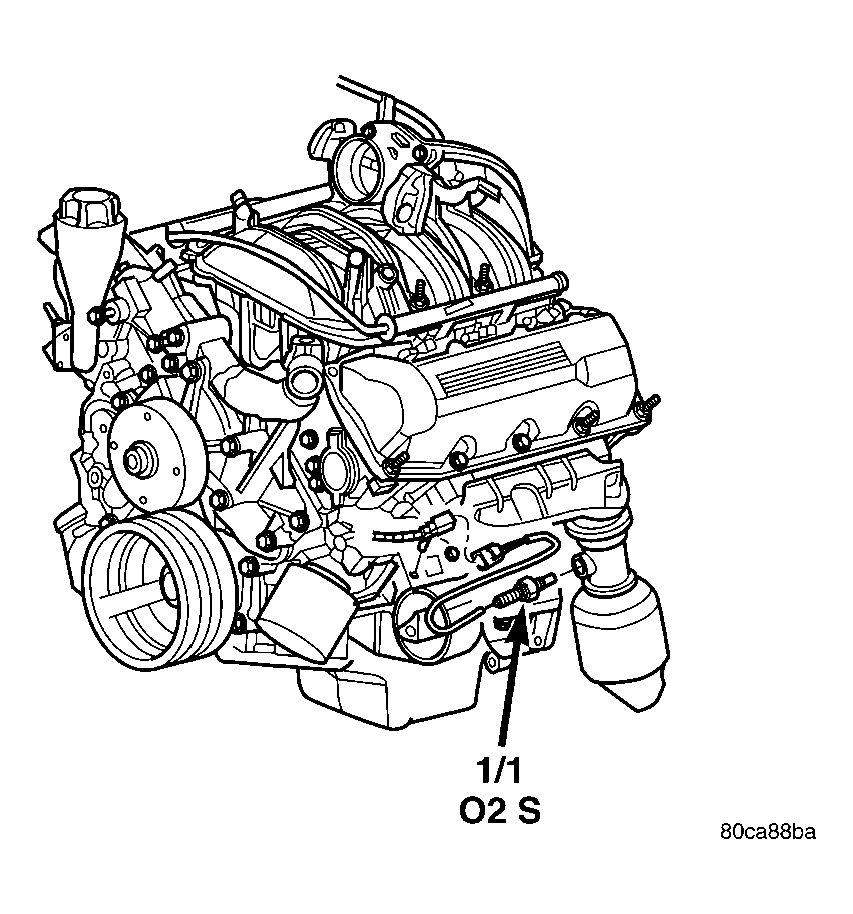

Fig 1: Locating 1/1 O2 Sensor (3.7L)

Courtesy of DAIMLERCHRYSLER CORP.

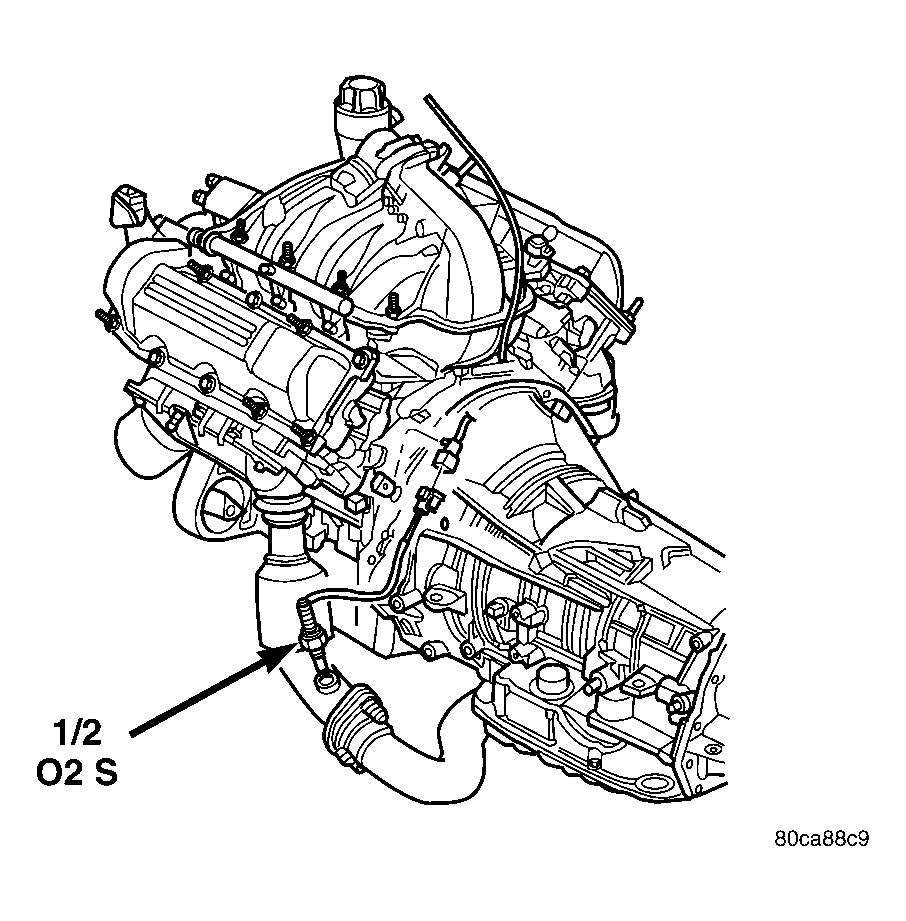

Fig 2: Locating 1/2 O2 Sensor (3.7L)

Courtesy of DAIMLERCHRYSLER CORP.

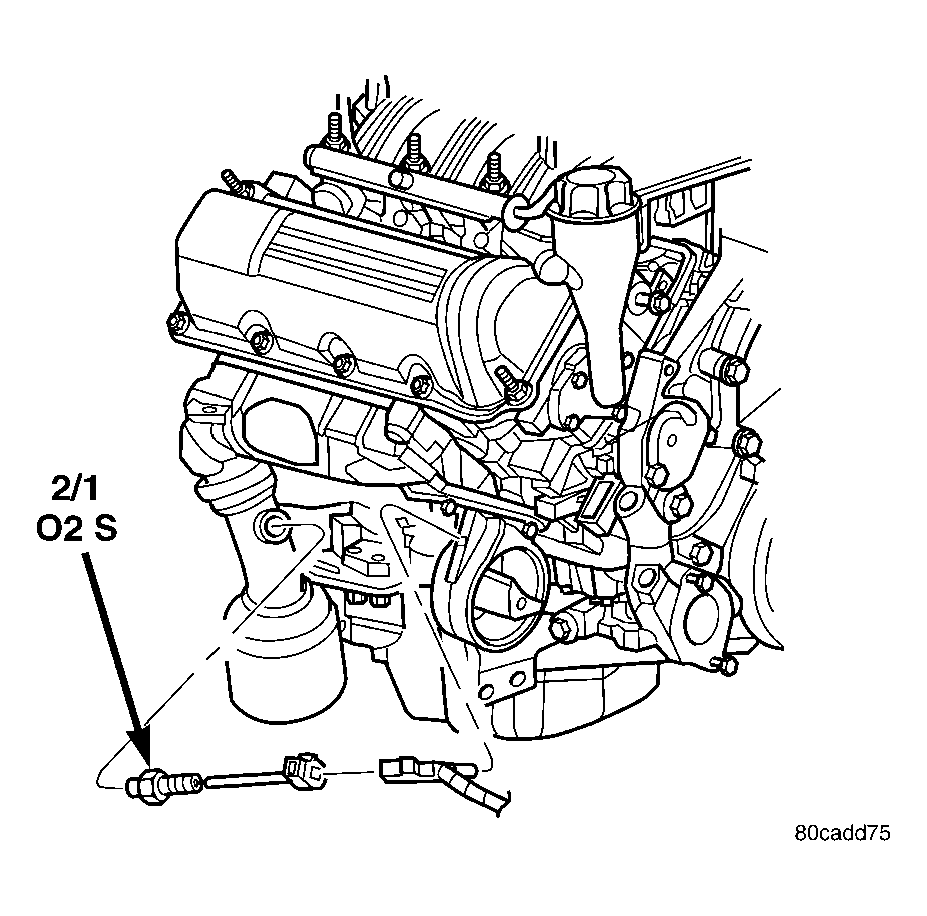

Fig 3: Locating 2/1 O2 Sensor (3.7L)

Courtesy of DAIMLERCHRYSLER CORP.

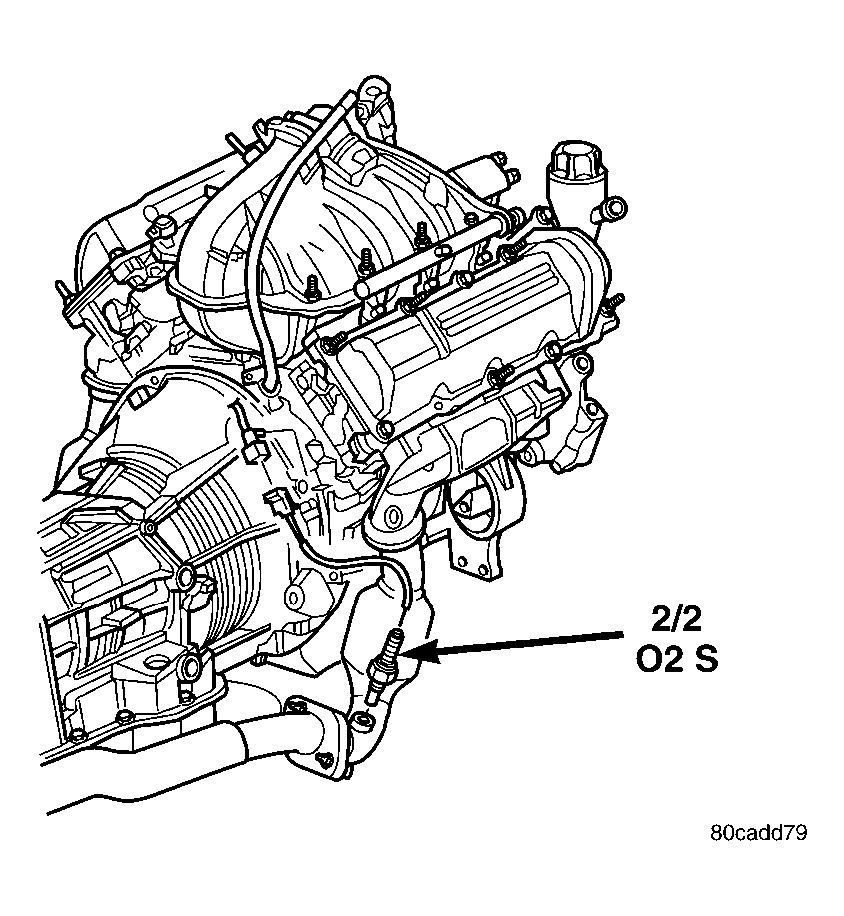

Fig 4: Locating 2/2 O2 Sensor (3.7L)

Courtesy of DAIMLERCHRYSLER CORP.
