Intake Air Temperature Sensor Locations (3.7L)

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

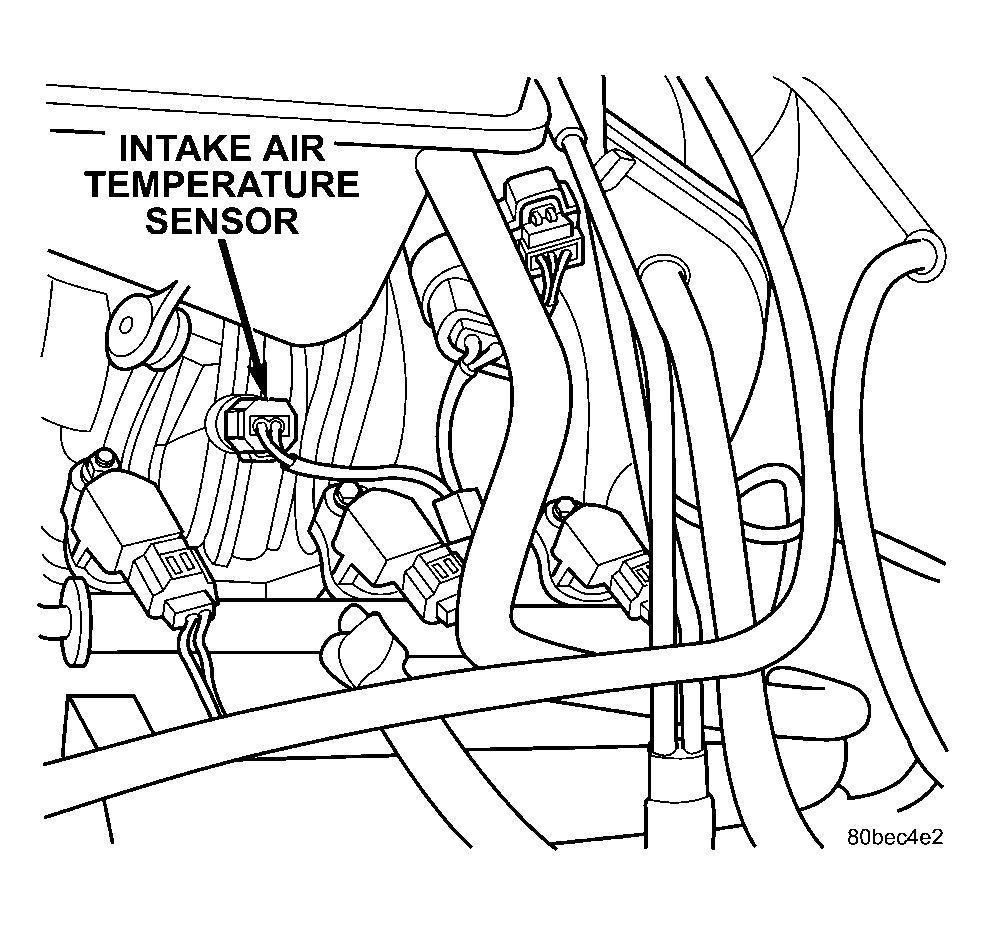

Fig 1: Locating Intake Air Temperature Sensor (3.7L)
G04549920Courtesy of DAIMLERCHRYSLER CORP.
