Input Speed Sensor & Output Speed Sensor Locations

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

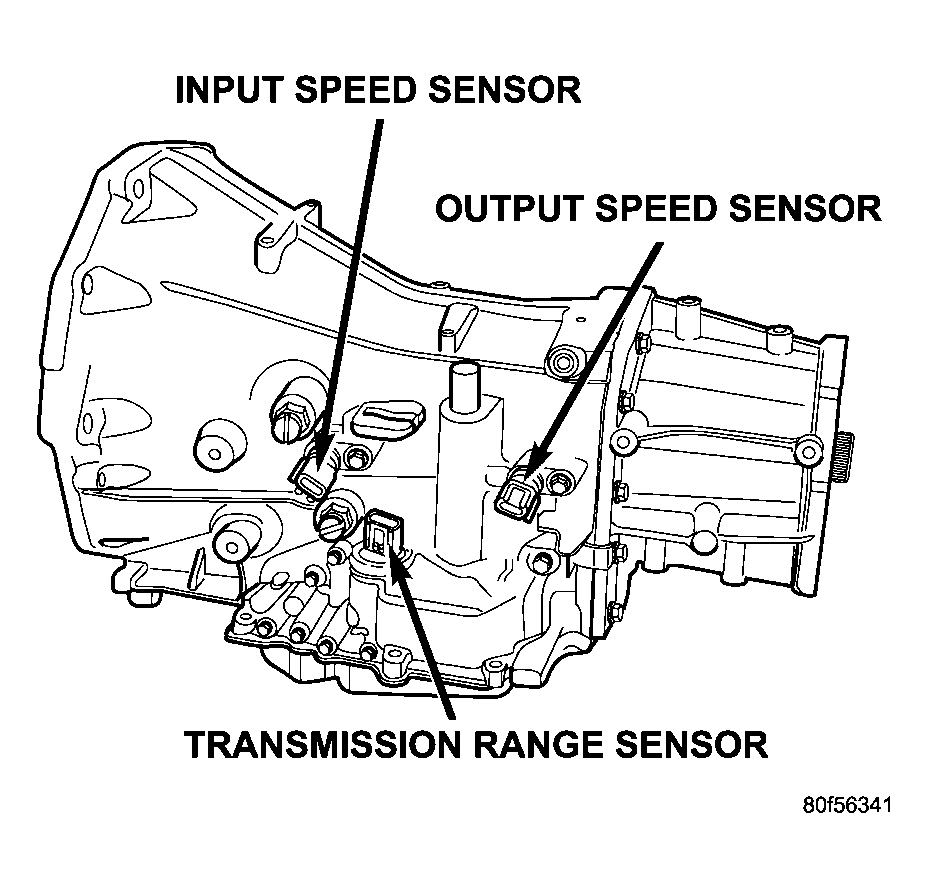

Fig 1: Locating Input And Output Speed Sensor
G04549933Courtesy of DAIMLERCHRYSLER CORP.
