DATALINK Connector

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

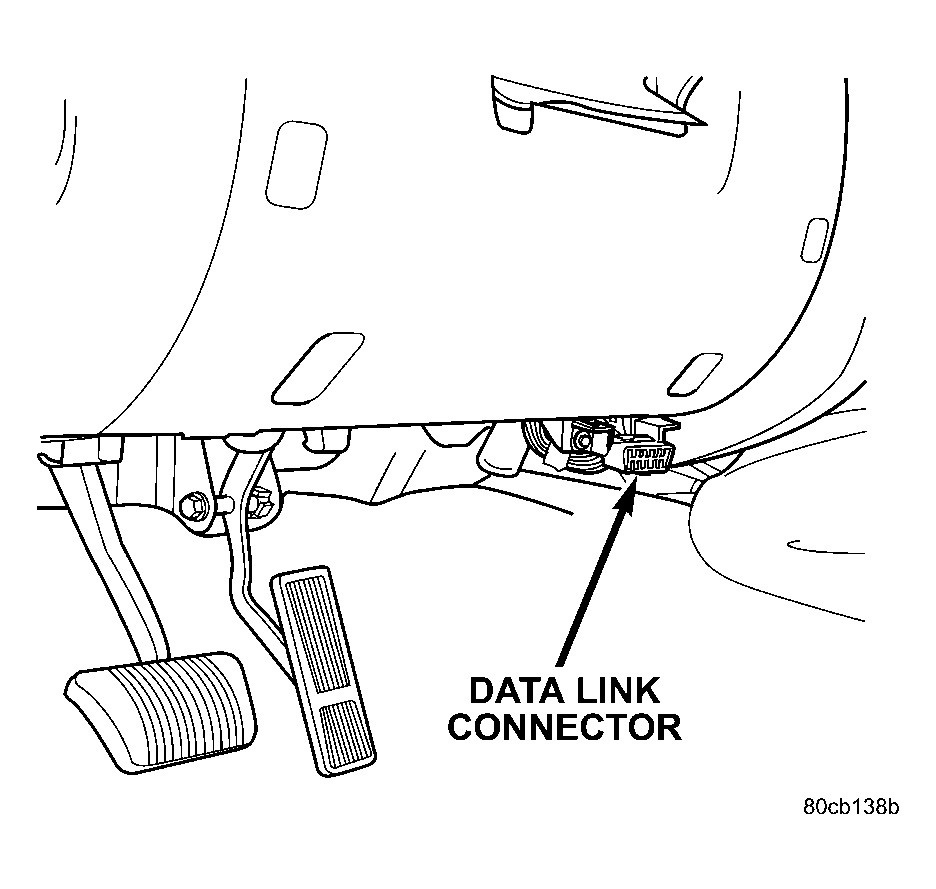

Fig 1: Locating Datalink Connector (LHD)
G04549909Courtesy of DAIMLERCHRYSLER CORP.

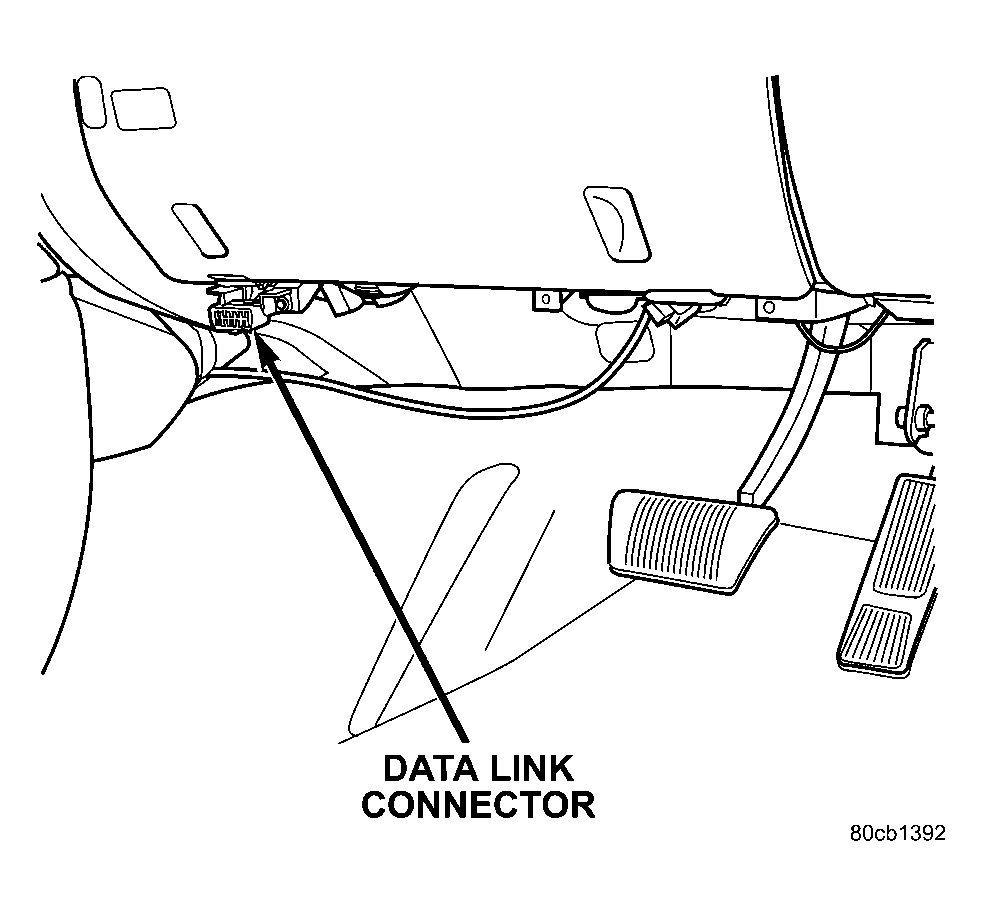

Fig 2: Locating Datalink Connector (RHD)
G04549910Courtesy of DAIMLERCHRYSLER CORP.
