Powertrain Control Module And PDC Locations

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

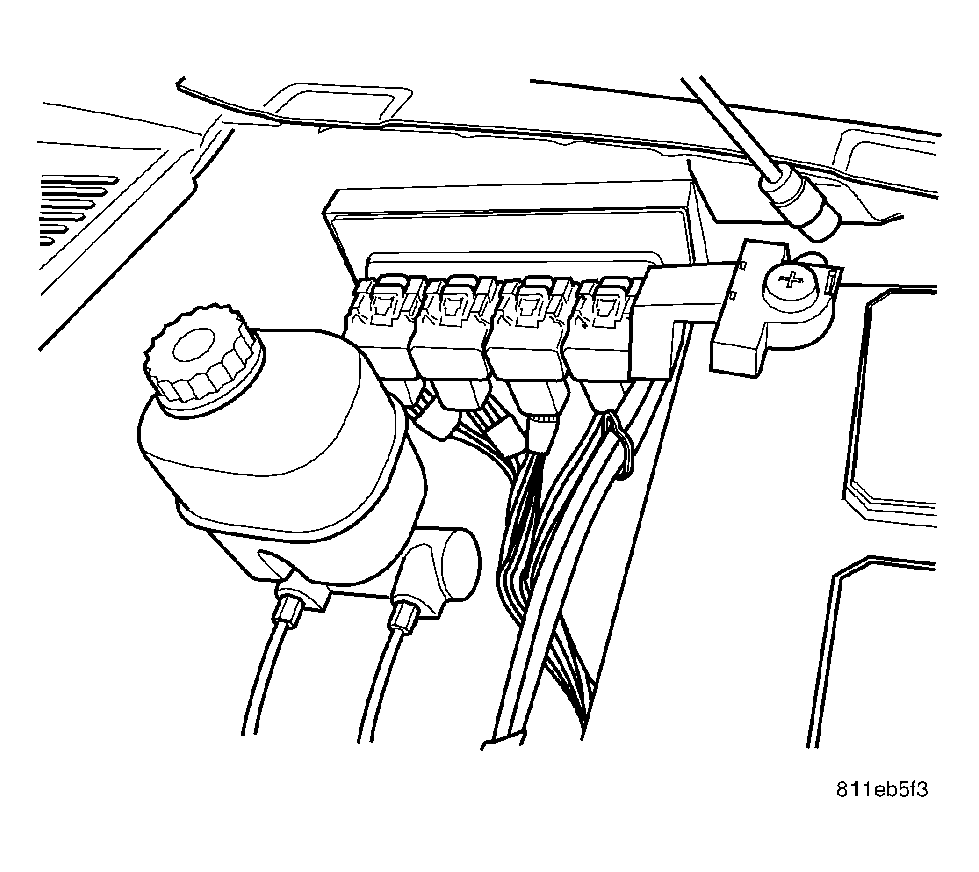

Fig 1: Locating Control Module
G04549907Courtesy of DAIMLERCHRYSLER CORP.

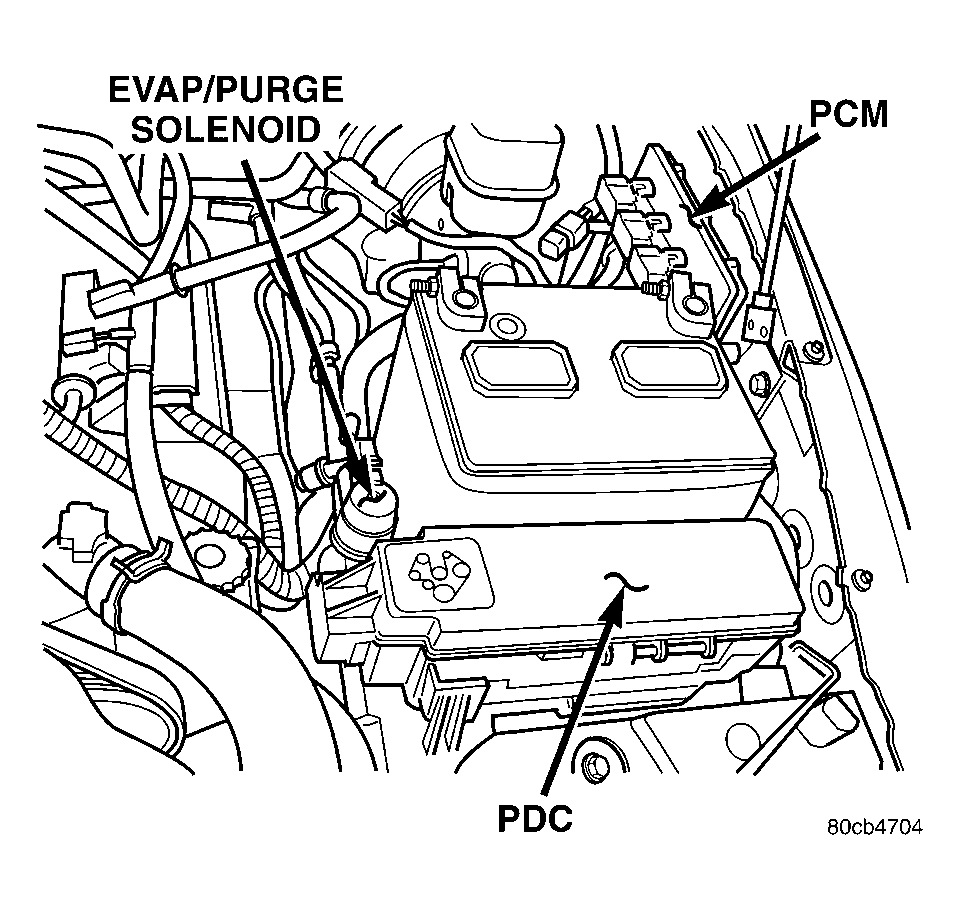

Fig 2: Locating Powertrain Control Module And PDC
G04549908Courtesy of DAIMLERCHRYSLER CORP.
