BUZZERS, RELAYS & TIMERS LOCATION
| Component | Location |
|---|---|

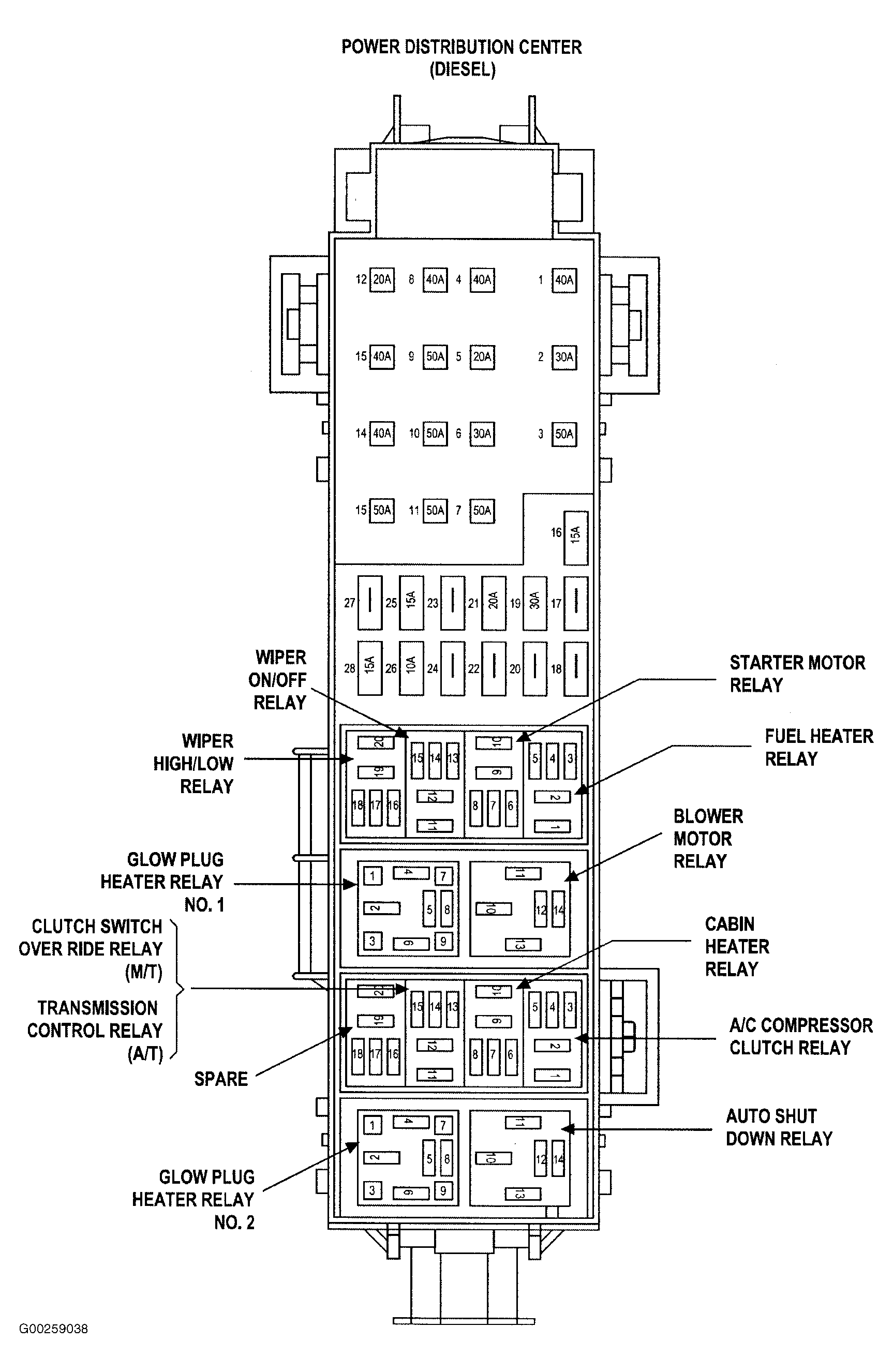

| A/C Compressor Clutch Relay (Diesel) | Power distribution center. See Figure. |

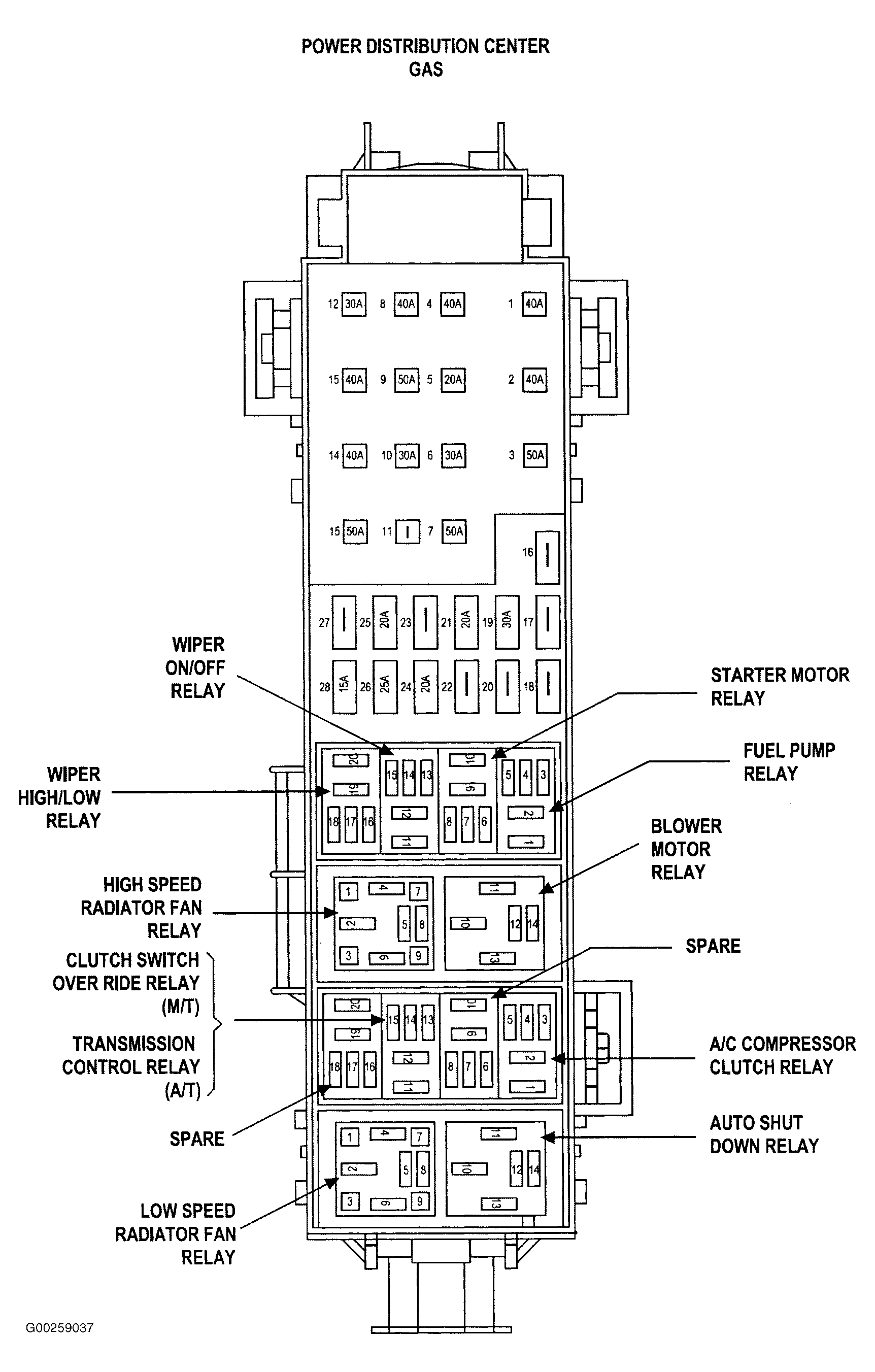

| A/C Compressor Clutch Relay (Gas) | Power distribution center. See Figure. |
| Auto Shut Down Relay | Power distribution center. See Figure. |
| Blower Motor Relay | Power distribution center. See Figure. |
| Cabin Heater Relay | Power distribution center. See Figure. |
| Clutch Switch Override Relay (M/T) | Power distribution center. See Figure. |

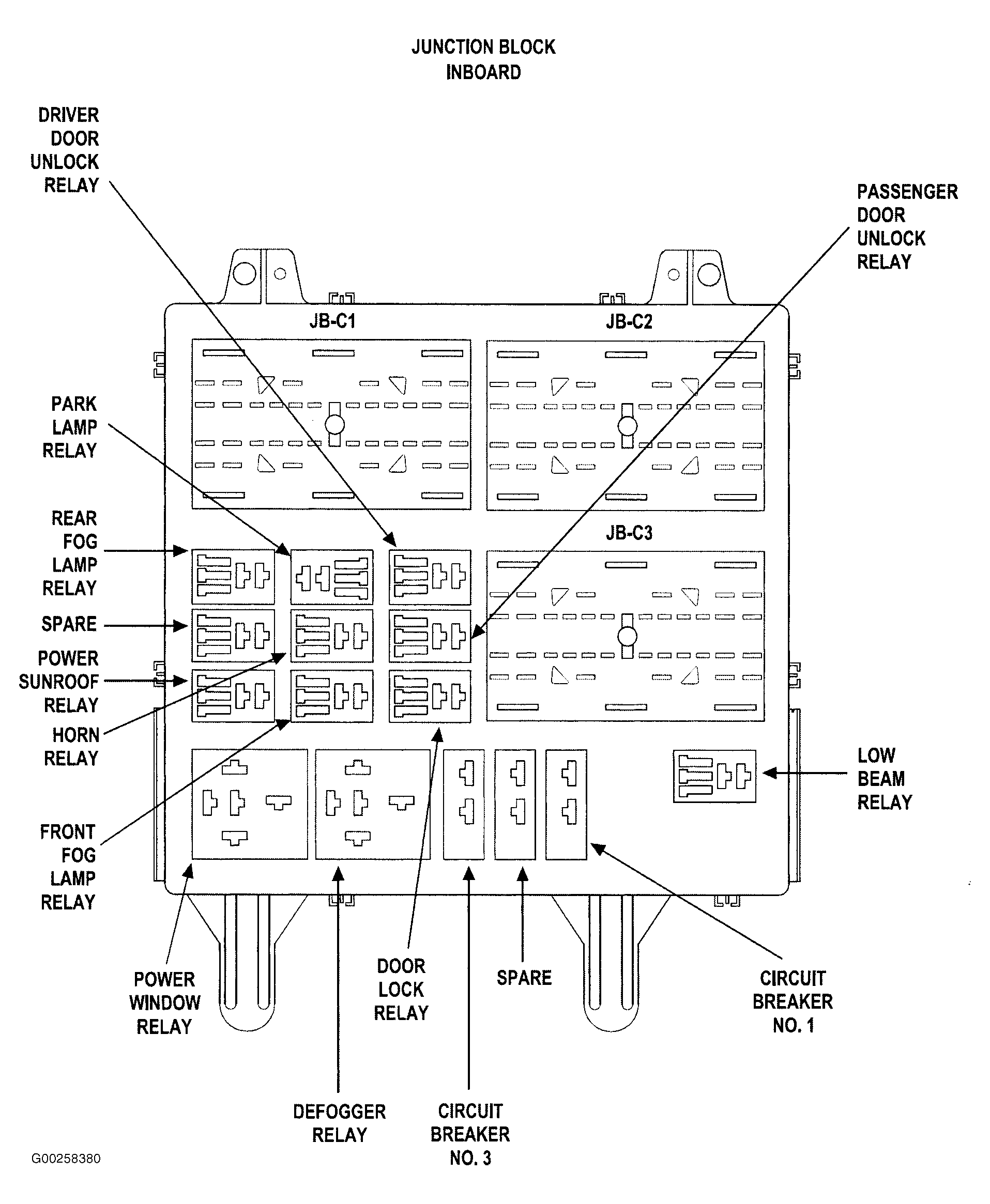

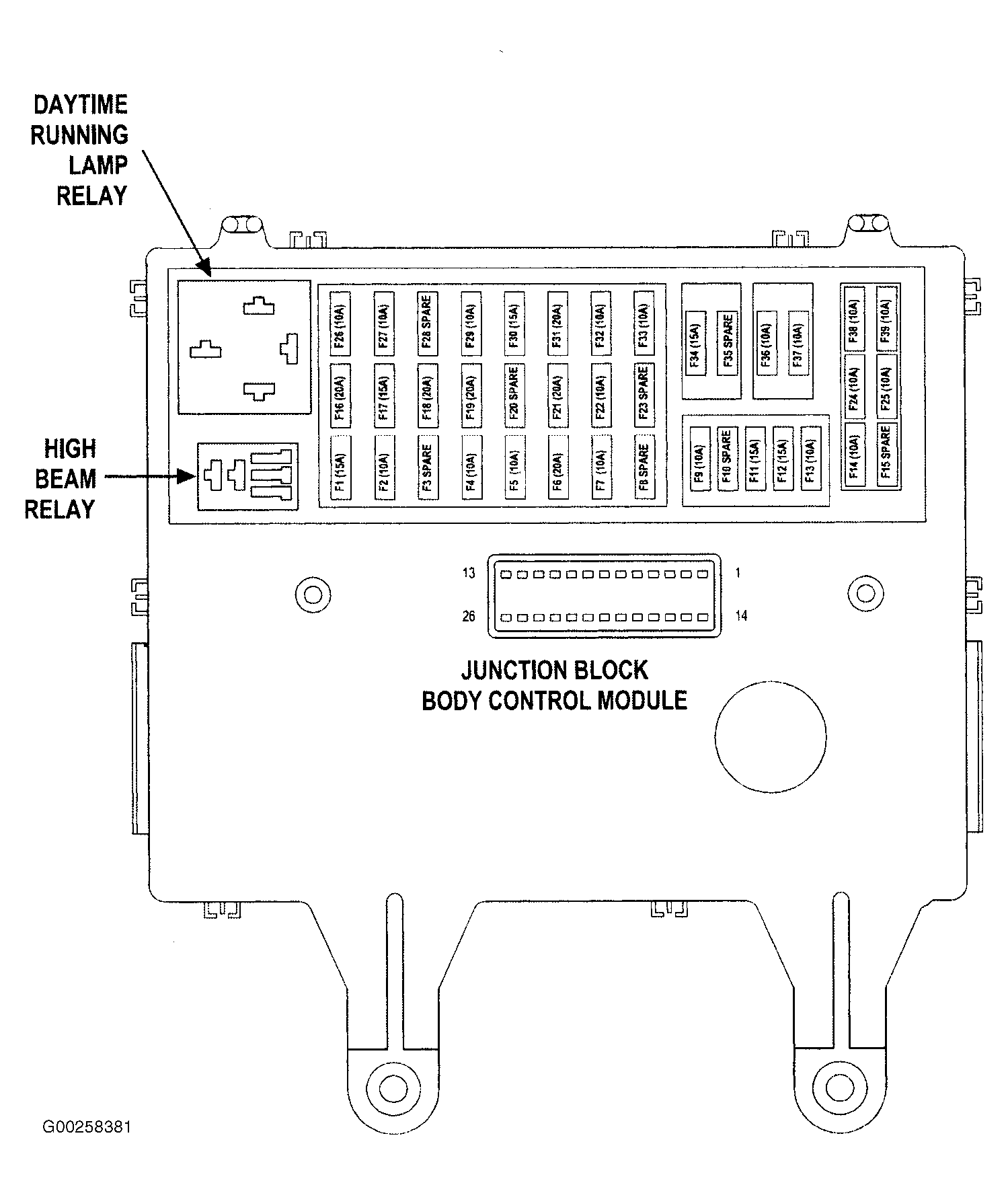

| Daytime Running Lamp Relay | Junction block. See Figure. |
| Defogger Relay | Junction block. See Figure. |
| Door Lock Relay | Junction block. See Figure. |
| Driver Door Unlock Relay | Junction block. See Figure. |
| Front Fog Lamp Relay | Junction block. See Figure. |
| Fuel Pump Relay | Power distribution center. See Figure. |
| Glow Plug Heater Relay No. 1 | Power distribution center. See Figure. |
| Glow Plug Heater Relay No. 2 | Power distribution center. See Figure. |
| High Beam Relay | Junction block. See Figure. |
| High Speed Radiator Fan Relay | Power distribution center. See Figure. |
| Horn Relay | Junction block. See Figure. |
| Low Beam Relay | Junction block. See Figure. |
| Low Speed Radiator Fan Relay | Power distribution center. See Figure. |
| Park Lamp Relay | Junction block. See Figure. |
| Passenger Door Unlock Relay | Junction block. See Figure. |
| Power Sunroof Relay | Junction block. See Figure. |
| Rear Fog Lamp Relay | Junction block. See Figure. |
| Starter Motor Relay | Power distribution center. See Figure. |
| Trailer Tow Brake Lamp Relay | Behind right rear quarterpanel. See Figure. |
| Trailer Tow Left Turn Relay | Behind right rear quarterpanel. See Figure. |
| Trailer Tow Relay | Behind right rear quarterpanel. See Figure. |
| Trailer Tow Right Turn Relay | Behind right rear quarterpanel. See Figure. |
| Transmission Control Relay (A/T) | Power distribution center. See Figure. |
| Wiper High/Low Relay | Power distribution center. See Figure. |
| Wiper On/Off Relay | Power distribution center. See Figure. |
